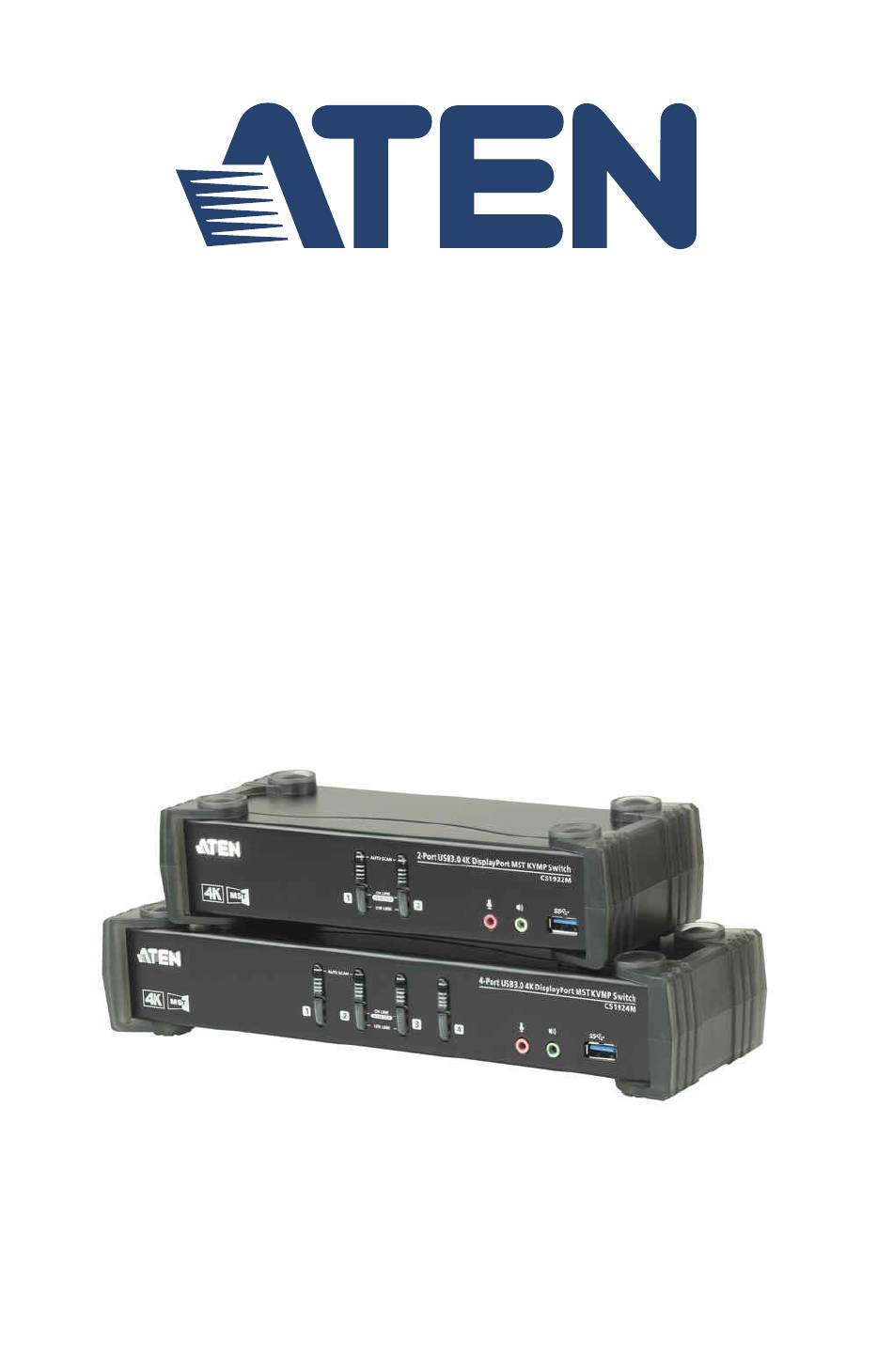

- Page 1 CS1922M / CS1924M 2/4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch RS-232 Commands V1.0 User Manual www.aten.com...
-
Page 2: Emc Information
CS1922M / CS1924M RS-232 Commands EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Hardware Connection
HyperTerminal applications can be download from the Internet, and many operating systems are embedded with HyperTerminal applications. Hardware Connection Use a RJ-11 to DB-9 serial adapter (LIN5-04A2-J11G) to connect a computer’s serial port to the serial port on the CS1922M / CS1924M, as shown below:... -
Page 4: Rs-232 Pin Assignments
RJ-11 to DB-9 Adapter RS-232 Pin Assignments Pin assignments for the CS1922M / CS1924M’s rear RJ-11 Serial Port that is used for connecting to a serial terminal are given in the table, below: Note: This RJ-11 female connector is 4P4C. -
Page 5: Console Login - Hyperterminal
CS1922M / CS1924M RS-232 Commands Console Login - HyperTerminal Once a physical connection from the computer to the CS1922M / CS1924M has been made, you can establish a HyperTerminal session using the instructions below. 1. Open the HyperTerminal application, and configure the port settings for COM1 port, then click OK. - Page 6 RS-232 commands to control the switch from the computer. When RS-232 control is enabled via the Open + [Enter] command, the CS1922M / CS1924M’s front panel pushbuttons, mouse switching and hotkeys will be disabled, until the serial connection is closed.
- Page 7 The Open and Close commands allows you to start and end the link between the computer sending RS-232 commands and the CS1922M / CS1924M. When the link is open, the CS1922M / CS1924M only accepts RS-232 commands and will not respond to front panel pushbuttons, mouse switching and hotkeys –...
-
Page 8: Switch Port Commands
CS1922M / CS1924M RS-232 Commands Switch Port The Switch Port command allows you to switch ports. The default port is 01. Use the Formula - to set Parameters - to create a Command. Formula: Command + Control + [Enter] Parameters:... -
Page 9: Set Baud Rate
CS1922M / CS1924M RS-232 Commands Set Baud Rate The Set Baud Rate command allows you to configure the baud rate setting for the serial port connection. The default baud rate is 19200. Use the Formula - to set Parameters - to create a Command. -
Page 10: Keyboard Language Layout
CS1922M / CS1924M RS-232 Commands Keyboard Language Layout The Keyboard Language Layout command allows you to change the keyboard language layout. The default language is English. Use the Formula - to set Parameters - to create a Command. Formula: Command + Control + [Enter]... -
Page 11: Hotkey Setting
CS1922M / CS1924M RS-232 Commands Hotkey Setting The Hotkey Setting command allows you to change the hotkey used to invoke the HSM (Hotkey Setting Mode). The default hotkey is [Num Lock] + [-]. Use the Formula - to set Parameters - to create a Command. -
Page 12: Hotkey Switching
CS1922M / CS1924M RS-232 Commands Hotkey Switching The Hotkey Setting command allows you to change the hotkey used for switching. The default hotkey is [Scroll][Scroll]. Use the Formula - to set Parameters - to create a Command. Formulas: Command + Control + [Enter]... -
Page 13: Usb Reset
CS1922M / CS1924M RS-232 Commands USB Reset The USB Reset command allows you to reset the USB connection. The default USB reset setting is off. Use the Formula - to set Parameters - to create a Command. Formulas: Command + Control + [Enter]... -
Page 14: Restore Default Settings
Restore Default Value Command The available formula for the Restore Default Settings command is as follows: 1. Command + Control + [Enter] For example, to restore all CS1922M / CS1924M settings back to the default, type the following: reset on [Enter]... -
Page 15: Firmware Upgrade Command
CS1922M / CS1924M RS-232 Commands Firmware Upgrade The Firmware Upgrade command allows you to enable the firmware upgrade mode. The default setting is off. Use the Formula - to set Parameters - to create a Command. Formulas: Command + Control + [Enter]... -
Page 16: Kvm Status
KVM Status Command The available formula for the KVM Status command is as follows: 1. Command + Control + [Enter] For example, to display the CS1922M / CS1924M’s configuration status, type the following: status on [Enter] A message similar to the one below will then appear:... -
Page 17: Display Mode
CS1922M / CS1924M RS-232 Commands Display Mode The Display Mode command allows you to set the switch to use SST Mode or MST Mode to configure the monitor setup. Use the Formula - to set Parameters - to create a Command.
