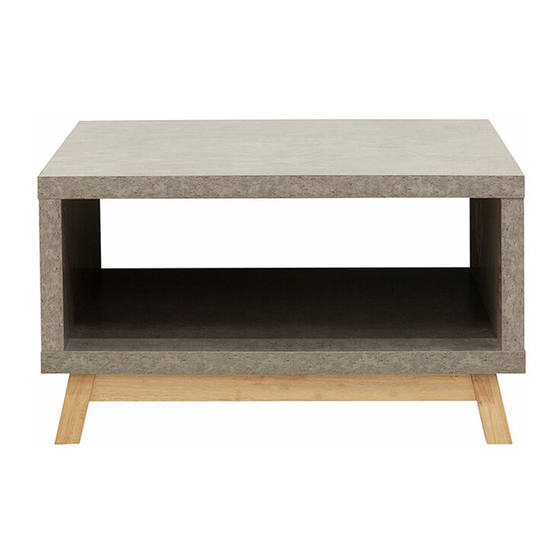

Arlo Coffee Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
B
A
dowel
screw
x8
x6
E
F
Allen key
screw
x12
x1

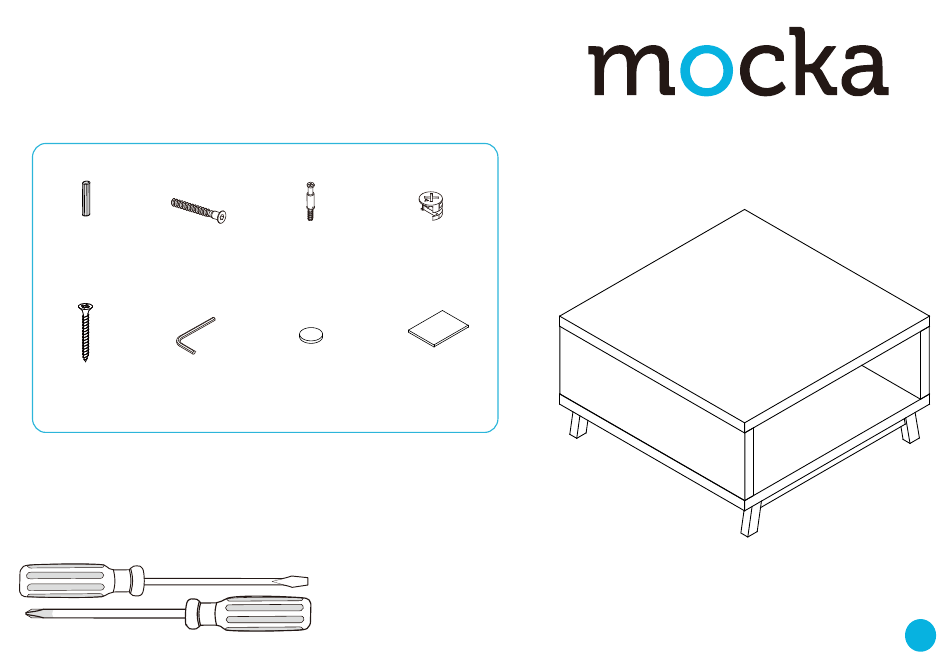

Hardware Supplied

WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
bolt
locking
x10
nut x10
G
H
Cover
Felt pad
x6
x4
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arlo Coffee Table and is the answer not in the manual?

Questions and answers

Related Manuals for Mocka Arlo Coffee Table

Summary of Contents for Mocka Arlo Coffee Table

  • Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 2 Attach panels [3] and [4] to panel [1] with 4x dowels (A) . Secure with 6x locking nuts (D) and tighten with a screwdriver. Insert 6x covers (G) into the holes of panels [3] and [4]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 3 Insert 2x bolts (C) into each panel [5]. Attach panels [5] to panels [6] and with 6x screws (B). Tighten with an Allen key. secure with 4x locking nut (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 4 Apply 4 x felt pads (H) to the end of panel [5] as shown.Once assembled 12x screws (E). Tighten with a screwdriver. lift furniture into place, do not drag. You’re done,enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
