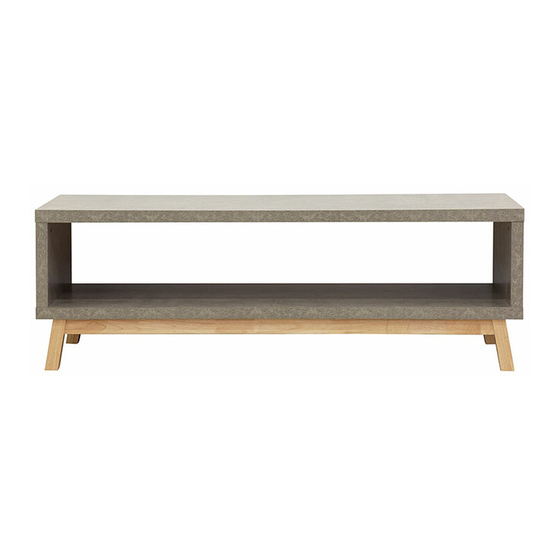

Arlo Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
B
A
dowel
screw
x8
x4
E
F
Allen key
screw
x14
x1
Hardware Supplied
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
bolt
locking
x8
nut x8
G
H
Cover
Felt pad
x4
x4
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
x2
screw
x1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Arlo Entertainment Unit
Summary of Contents for Mocka Arlo Entertainment Unit
- Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach panels [3] and [4] to panel [1] with 4x dowels (A) . Secure with 4x locking nuts (D) and tighten with a screwdriver. Insert 4x covers (G) into the holes of panels [3] and [4]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Insert 2x bolts (C) into each panel [5]. Attach panels [5] to panels [6] and with 4x screws (B). Tighten with an Allen key. secure with 4x locking nut (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach the leg panels [5] and panels [6] to the bottom panel [2] with Apply 4 x felt pads (H) to the end of panel [5] as shown. 14x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. of the safety strap (V) to the wall using 1x screw (Y), 1x wall plug (X) and 1x washer (Z). Tighten with a screwdriver.You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
