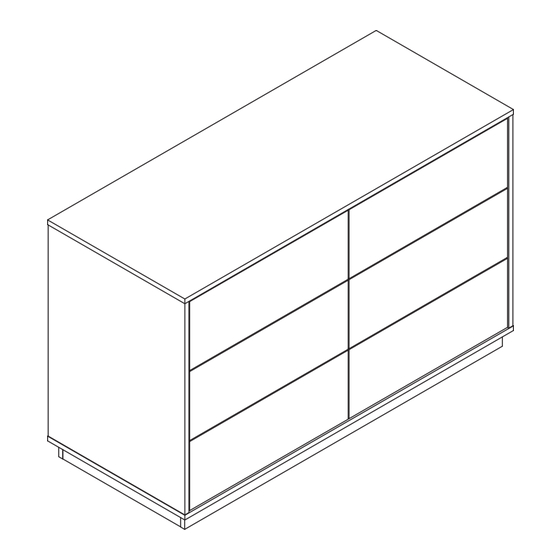

Mocka Avoca Assembly Instructions Manual

Avoca
Six Drawer
A B
79x 79x
bolt nut
E F
6x 6x
clip spacer
I J
2x 2x
wall anchor 4"12 screw
M CL
96x 6x
3.5"12 screw slide slide

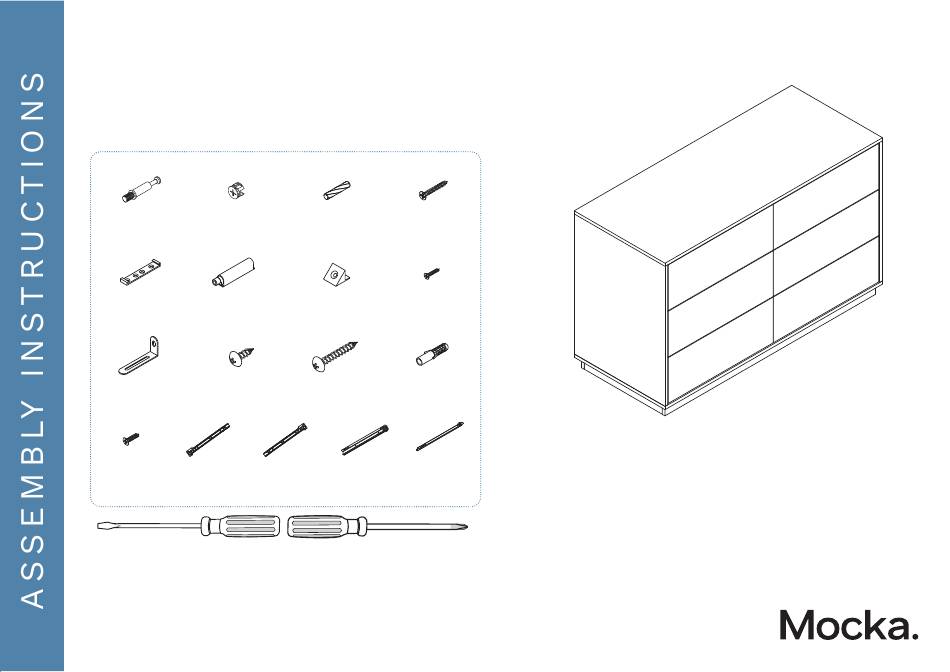

HARDWARE SUPPLIED
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au I
C
D
18x 40x
dowel 4"35 screw
G H
12x 12x
bracket 3"14 screw
K L
2x 2x
4"35 screw wall plug
CR DL DR
6x 6x 6x
slide slide WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
