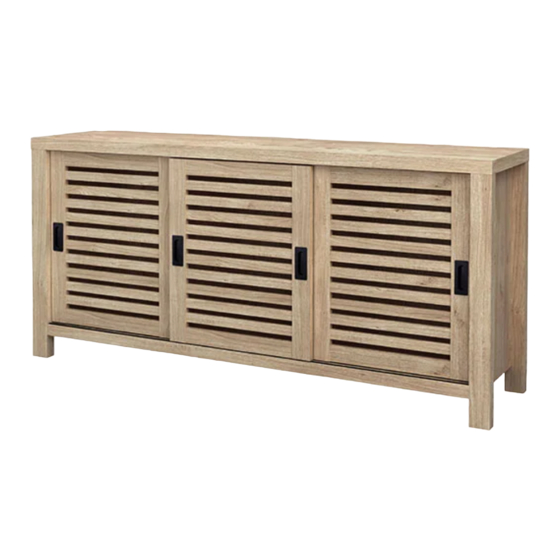

Asha Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
screw
bol
x8
x32
x36
H
I
J
wedge
plastic
handle
x 8
glide
x4
x6
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
t
locking
screw
x48
nut x36
K
L
bolt
screw
x8
x8
Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
F
wheel
wheel
x6
x6
M
N
long
double
dowel
ended
screws
x4
x2
V
W
X
safety
screw
wall
x2
strap x2
anchor
x2
Wall Strap
Y
Z
wall
washer
screw
x4
x2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Asha Buffet
Summary of Contents for Mocka Asha Buffet
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Assembly Instructions Insert 10x bolts (C) into panel [1] and tighten with a screwdriver. Insert 12x bolts (C) into legs [4], [5], [6] and [7] and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Insert 10x bolts (C) into panels [3], [4], [5], [6], [7] and [16] and tighten with 8x dowels (A) and secure with 12x locking nuts (D). Tighten with a screwdriver. a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Insert 4x bolts (C) into panel [8] and [9] and tighten with a screwdriver. Attach panel [8] and [9] to panel [10] with 4x long dowels (M) and secure with 4x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panels [11] to panel [8] and [9] and secure with 4x locking Attach panel [2] to panel [8] and [9] with 4x dowels (A) and secure with 4x screws (B). Tighten with a screwdriver. nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [3], [4] and [5] to panel [2] and [11] with 4x dowels (A) and and secure with 5x locking nuts (D). Tighten with a screwdriver. secure with 5x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 6x plastic guides (I) on legs [4], [5], [6] and [7] and support legs [12]. and [8] and [9] to form the back of the unit as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 48x screws (E). Tighten with a screwdriver. Attach 4x 10x locking nuts (D). Tighten with a screwdriver. handle (J) to doors [15] and [14] and secure with 8x bolt (K). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Push the clip back up to lock into place. Attach 2x safety straps (V) to the top of the back side of the unit as shown using 2x washers (Z) and 2x screws (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 (V). Fasten to the wall using 1x washer (Z) , 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
