Elko iNELS Air AirSLC-100L/NEMA Series Quick Start Manual

ELKO EP, s.r.o.
Palackého 493
769 01 Holešov, Všetuly
Czech Republic
Tel.: +420 573 514 211
e-mail: elko@elkoep.com
www.elkoep.com
Made in Czech Republic
02-37/2019 Rev.: 0
Characteristics
• Used for remote control of the luminaire: ON / OFF / DIMM.
• Measures current fl ow - fault detection (ballast fault, light source, connecting
wires ...)
• Communicates over the wireless LPWAN network (LoRa).
• Output signal 0 (1) -10V or DALI for direct control of ballast in luminaire.
• Internal light intensity sensor, range 5 - 100,000Lx.
• Internal temperature sensor in the range -30 ... 70 ° C.
• Power supply: 100-230 V AC, Power 3.5 VA.
• The IP66, UV-resistant, is designed for outdoor mounting in the NEMA socket.
• Update using the RFAF / USB Service Key.
• Connection standard: Standard ANSI C136.41 Dimming Receptacle.

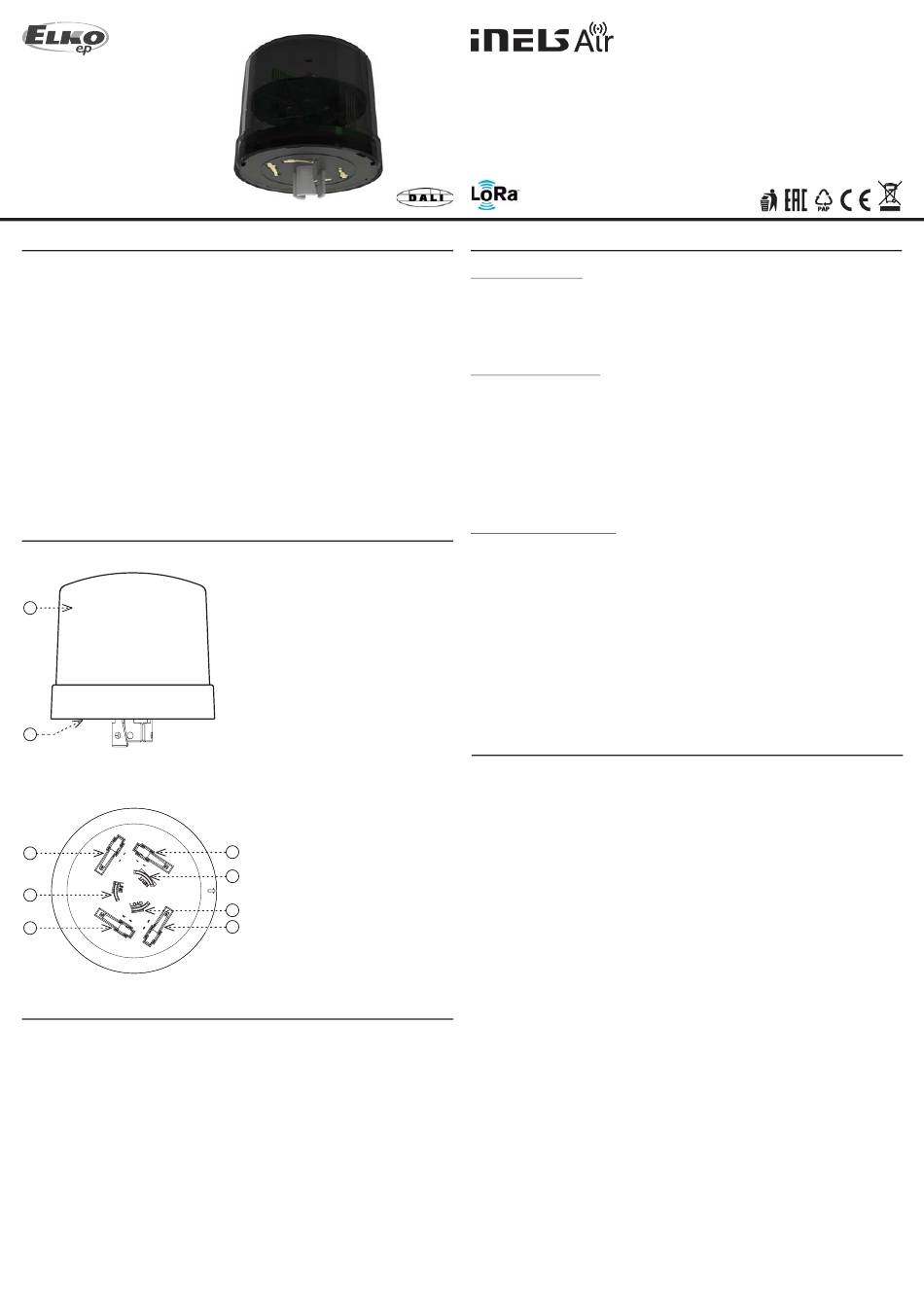

Description

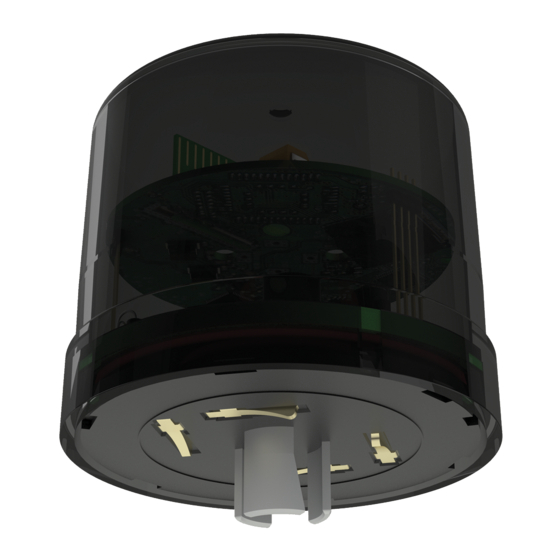

1
2
Underside view
2
1
3
4
5
3
4
Cloud app assignment
It is done in your Smartphone application. Enter the relevant information on the product
cover into the application.
1. Cover
2. Base
3. 0(1)-10 V (+) / DALI (+) *
4. L - phase (LINE)
5. Not connected
6. 0(1)-10 V (-) / DALI (-) *
7. N - neutral (NEUT)
8. V - switched output (LOAD)
9. Not connected
* by module type (analog / DALI)
6
7
8
9
AirSLC-100L/NEMA
Street light controller - NEMA socket
General instrucions
Internet of Things (IoT)
• The IOT wireless communications category describes the Low Power Wide Area
(LPWA). This technology is designed to provide full-range coverage both inside and
outside buildings, energy-saving and low-cost operation of individual devices. The
LoRa network is available to use this standard.
LoRa network information
• The network is bidirectional and its communication uses free frequency band.
• 865 - 867 MHz
• 867 - 869 MHz
• 902 - 928 MHz
• The advantage of this network is the possibility of freely deploying individual stations
in local locations, thus strengthening their signal. It can therefore be used effi ciently in
company premises or, for example, in local parts of cities.
• For more information on this technology, please visit www.lora-alliance.org.
Caution for proper operation:
• Products are installed according to the wiring diagram given for each product.
• For proper device functionality, it is necessary to have suffi cient coverage of the selec-
ted network at the installation site.
• At the same time, the device must be registered in the network. Successful device re-
gistration on a given network requires a charge for traffi c.
• Each network off ers diff erent tariff options - it always depends on the number of me-
ssages you want to send from your device. Information on these tariff s can be found in
the current version of the ELKO EP pricelist.
Function
When the power is connected, the device sends the initial message containing the meas-
ured temperature and light intensity.
Sensor senses temperature and intensity of lighting every 2 minutes. After that, it sends a
data message of measured values every 15 minutes.
Function setting (message from server):
• Function AUTOMAT:
- the on / off is controlled according to the intensity measured by the light sensor
• Function SEMI-AUTOMAT:
- Switching on / off, the brightness is set according to the set schedule (the schedule
can be set by a message from the server)
- Outside the schedule is set to Auto
• Function MANUAL:
- Messages from the server can be turned on / off, adjust brightness and interval for
sending data messages.
1 / 5
India
Europe
North America, Japan, Korea
EN
