Assembly Instructions

ASSEMBLY OF BUBBLE | PURE AIR
Before assembly, clean the area where the Bubble will be installed and avoid the
presence of sharp objects that could damage the Bubble. Arch system:

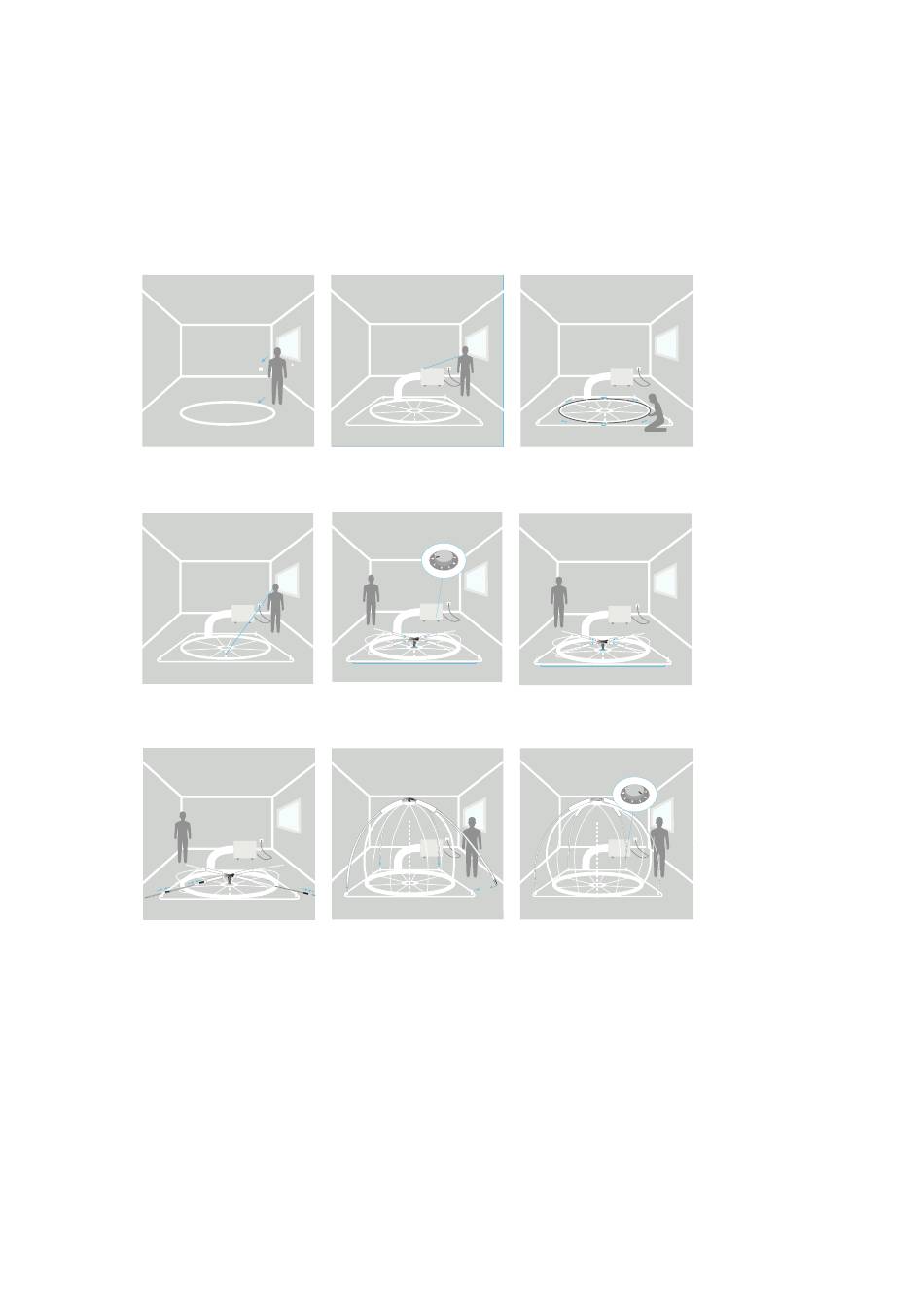

1. Locate a power supply for
connection to the Airbox.
4. Close the zip of the Bubble.
Connect the Airbox to the
power supply and turn it on.
7. Set the cross piece parallel
to the longest side of the base.
Connect the rest of the rod
sections (3 rods per side)
while the Bubble fills with air.
DISASSEMBLING THE BUBBLE| PURE AIR
After use, switch the Airbox regulator to off and disconnect from the power supply.
Open the zips for better air expulsion.
Always store in its bag when not in use. To disassemble, remove the structure
from the base and disassemble the rods, the cylindrical base structure and carefully
fold the bubble. Store the fabric in its carry case, and the rods, cross piece and
cylindrical base in the other carry bag.
2. Connect the end of the tube
to the outlet on the Airbox and
adjust.
5. Set the regulator at position
number 8 to fill the Bubble up.
8. Insert the end of the rods to
the anchor points located at
the corners of the floor.
3. Open the velcro from the base
and insert the cylindrical structure
made of rods. Close the velcro.
6. Insert the 4 upper rod sections
of the Bubble into the cross piece.
9. Once the Bubble is filled up, set
the regulator at position number 4.
