Summary of Contents for Easypix GoXtreme Phantom 4K
-
Page 2: Microsd Card
IMPORTANT INFORMATION To ensure the optimal operation of your camera, please note the following important information: MicroSD card • Please ensure your memory card is formatted in the camera before using the card for the first time (Settings > Format). Before formatting, make sure that all the files in your memory card have been backed up as formatted and erased files can not be restored. - Page 3 Charging • Ensure the camera is charged completely before first use. • Keep the device away from children while charging. • Ensure the camera is switched off when charging. If the camera turns on automatically when connected to a power source please turn it off to complete charging.
-
Page 4: Safety Instructions
Safety instructions WARNING: The camera is not suitable for children under 36 months because of choking hazard. WARNING: Always protect your camera from falls, blows and bumps. • Keep a sufficient distance from objects that generate strong magnetic fields or radio waves, such as electrical appliances to prevent them from damaging the product or affecting the sound and image quality. -
Page 5: Camera Description

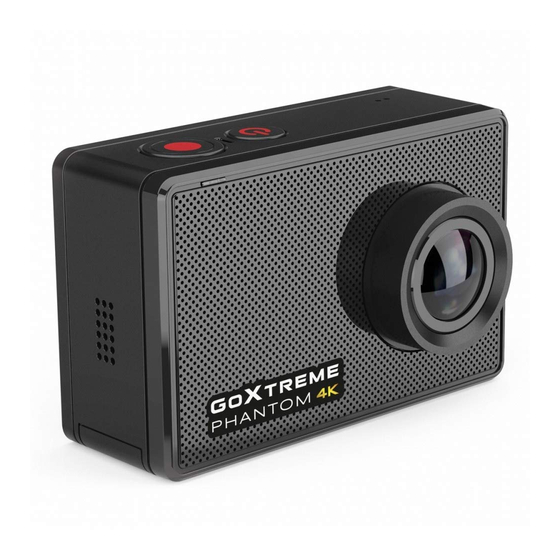

CAMERA DESCRIPTION Operation / Power/Mode Button Microphone Charging Indicator Shutter/ Select Button Lens WiFi Connection Speaker Indicator... - Page 6 USB Type C Slot HDMI Slot Tripod Socket Micro SD Card Slot Battery Cover...
-
Page 7: Camera Operation
CAMERA OPERATION Installing and removing battery 1. Correctly install the battery into the camera as indicated by the +/- symbols and direction of arrows marked on battery until it’s in place. 2. For battery power: Please refer to the symbol: Full power mode “ ”... -
Page 8: Power On/Off
Power on/off Press and hold power button for 3-5 seconds to turn the camera on/off. Video and photo mode switching 1. Switch between video and photo by short-pressing the power button. 2. Simply swipe to the left or right on the touch screen to change between video shooting mode and photo shooting mode. - Page 9 Video/Photo General Settings Menu While in either video or photo mode, click setup icon , enter the video/photo settings interface.
- Page 10 Video / Photo Function Mode Menu There are 2 options to enter the video or photo function mode menu: 1. Using buttons: In the video / photo preview mode, long press the shutter / select button for 3 seconds to enter the function mode menu . 2.
- Page 11 Video Mode After the camera is powered on, the camera's default function mode is standard video mode. The last used video function mode will also be active. Tapping the video settings button will allow you to change the current resolution and other video settings.
- Page 12 Slow Motion Enter the function mode menu and tap the "Slow Motion" mode icon. When selected, the camera will return to the video preview screen automatically. Tap the “Settings” icon and tap the "video resolution" option to select the slow motion resolution. Photo Mode There are 3 options to enter the Photo Mode: 1.
-
Page 13: Control Shortcuts
Photo Burst Enter the function mode menu and tap the "Photo Burst" mode icon. When selected the camera will return to the Photo preview screen automatically. Click the “Settings” icon to enter the photo settings menu and tap "Photo Burst" to select your preferred setting. - Page 14 WIFI Connection Before using the WIFI Control function, please install the GoAction H22 APP on your smartphone or tablet. Please note that wireless transfer of files using the app is not possible for video with resolution higher than 1080p. Files using any resolution higher then 1080p can only be accessed via your computer using a card reader.
- Page 15 Step 2. On your smartphone/tablet: • Open the WiFi settings on your mobile phone to search for the camera device: Phantom_xxxxxx from the available wireless networks. The password to complete the connection is 1234567890. • Exit your WiFi setting menu on your smartphone and open the GoAction H22 APP. •...
-
Page 16: Bluetooth Remote Control
Bluetooth Remote Control Power On/Off Working LED Indicator Photo LED Indicator Photo Button Video LED Indicator Video Button... - Page 17 Connection steps: • Press the "Power ON/OFF" on the remote control for 5 sec. to turn it on. • In the video / photo mode, click the icon at the bottom right corner of the screen to enter the settings menu. •...
-
Page 18: Technical Specifications
Note: Should the camera crash for any reason, please reset the camera by removing and re-installing the battery. TECHNICAL SPECIFICATIONS Type 1/2.3” CMOS 12MP Image Effective Pixels Approx. 12 Mega Pixels (4000x 3000) Sensor Output Pixels Approx. 12.35 Mega Pixels Focal Length Lens f= 5.03mm F No. - Page 19 NTSC: 4K (3840x2160) 60fps/30fps/24fps 16:9 4K (3840x2880) 30fps/24fps 4:3 4K Ultra (3840x2160) 30fps/24fps 2.7K (2704x1520) 60fps/30fps/24fps16:9 2.7K (2704x2016) 60fps/30fps/24fps 4:3 2.7K Ultra (2704x1520) 60fps/30fps/24fps 2.5K (2560x1440) 60fps/30fps/24fps 16:9 1080P (1920x1080)120fps/60fps/30fps/24fps 16:9 1080P Ultra (1920x1080) 60fps/30fps/24fps 720P (1280x720) 240fps/120fps/60fps/30fps/24fps 16:9 Video resolution PAL: 4K (3840x2160) 50fps/25fps/24fps 16:9 4K (3840x2880) 25fps/24fps 4:3...
- Page 20 Audio Mic and Speaker built-in Smooth Video / EIS: Minimizes small movements that On/Off traditional tech can’t detect. Allows the camera to connect to the Bluetooth Pairing remote controller BT Auto Open: Turns on Bluetooth automatically when On/Off the camera is turned on. No internal memory External memory: supports Memory...
- Page 21 Motion Detection: Allows the camera to automatically begin On/Off recording after detecting motion. Dual Files: The camera can create two files for one video, one large (file name ending in AA) and one small On/Off (file name ending in AB). When you want to view videos using your camera (or phone), the smaller file will play for smoother playback.
- Page 22 Effect Mode: Supports multiple modes Applies different special effects filters. Metering: Captures better visuals more consistently by Center, Multiple, Spot adjusting for light sensitivity from different sources. Time-lapse Photo: OFF / 1Sec. / 2 Sec. / The camera will take still pictures at designated 5 Sec.
- Page 23 Image Rotate: On/Off Turns the screen will 180 degrees. Quick Capture: Allows the camera to start recording On/Off automatically when turned on. Dzoom: Also known as digital zoom On/Off Grid Display: On/Off Places a 3x3 grid on your screen. Works with both NTSC and TV Mode PAL setups.
- Page 24 Beep: Turns on or off the beeping sound made by the ON / OFF buttons. WiFi SSID Phantom_xxxxxx WiFi Password 1234567890 WiFi Frequency 2,4 GHZ Language Multiple languages USB TYPE C 3.0: Interface Recharging/File Transfer Li-ion rechargeable Battery Battery 1180mAH L: 66xW:42xH:23.5mm Dimensions (WxHxD) (without lens)
- Page 25 Easypix GmbH reserve the right for errors or omissions. For technical help please visit our support area on www.easypix.eu. CONFORMITY The manufacturer hereby declares that the CE marking was applied to the product GoXtreme...
- Page 26 DISPOSAL Dispose of packaging For disposal, separate packaging into different types. Cardboard and board must be disposed of as paper and foil must be recycled. Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union. This symbol on the product or on the packaging indicates that this cannot be disposed of as a household waste.
- Page 27 Battery warning • Never dismantle, crush, or pierce the battery, or allow the battery to short-circuit. Do not expose battery being placed in high temperature environment, if battery leaks or bulges, stop continue to use. • Always charge using the charger. Risk of explosion if battery is replaced by an incorrect type. •...
