USER MANUAL
FR : Un manuel dans votre langue est disponible sur Internet:
IT: Il manuale nella sua lingua può essere trovato su Internet:
ES: Puede encontrar un manual en su idioma en Internet:
PT: Um manual em seu idioma pode ser encontrado na Internet:
PL: Instrukcję w swoim języku możesz znaleźć na stronie:
SWE: En handbok på ditt språk finns på Internet:
NL: Een handleiding in uw taal vindt u op internet:
www.easypix.info/download-manuals/download/black-hawk-plus/
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Easypix GoXtreme BLACK HAWK+ 4K
Summary of Contents for Easypix GoXtreme BLACK HAWK+ 4K
- Page 1 PT: Um manual em seu idioma pode ser encontrado na Internet: PL: Instrukcję w swoim języku możesz znaleźć na stronie: SWE: En handbok på ditt språk finns på Internet: NL: Een handleiding in uw taal vindt u op internet: www.easypix.info/download-manuals/download/black-hawk-plus/...
- Page 2 Disclaimer Easypix makes no representations or warranties with respect to this manual and, to the maximum extent permitted by law, expressly limits its liability for breach of any warranty that may be implied to the replacement of this manual with another.
-
Page 3: Product Introduction
Retaining instructions Please read this manual and its safety instructions before using this product and follow all of the instructions contained herein. The product should only be used by persons who have fully read and understand the contents of this user manual. Ensure that each person who uses the product has read these warnings and instructions and understands its content. - Page 4 Notes on MicroSD card • Please ensure your memory card is formatted in the camera before using the card for the first time (Menu mode > Camera Settings). • The maximum capacity memory card supported is 64GB. Use of memory cards exceeding the maximum recommended capacity may result in file errors.
-
Page 5: Notes On Charging The Battery
Notes on charging the battery • Ensure the camera is charged completely before using it for the first time. • Keep the device away from children while charging. • Ensure the camera is switched off when charging. If the camera turns on automatically when connected to a power source please turn it off to complete charging. -
Page 6: Safety Instructions
Safety instructions This product is not suitable for children under 36 months because of choking hazard. Always protect your camera from impact with hard surfaces. • Keep a sufficient distance from objects that generate strong magnetic fields or radio waves, such as electrical appliances to prevent them from damaging the product or affecting the sound and image quality. - Page 7 Before using the camera in the water, ensure that all lids and latches on the camera and underwater housing are closed and sealed. • Following use in salty or chlorinated water, clean the case and let it dry naturally. • To prevent condensation inside the case or behind the lens, avoid exposing the camera to high temperature and humidity differences.
-

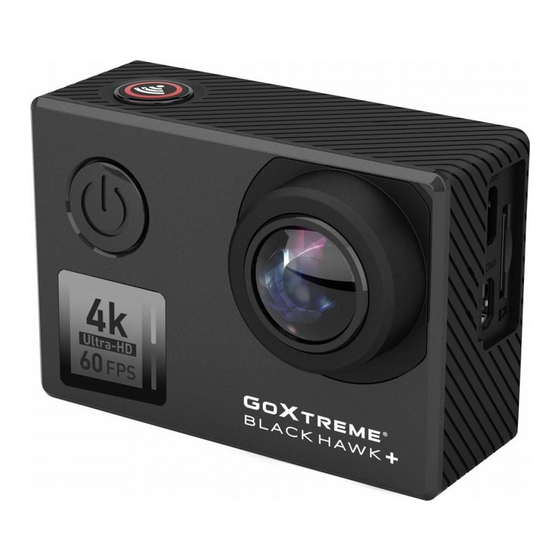

Page 8: Product Description
Product description... - Page 10 Waterproof case description...
-
Page 11: Inserting Micro Sd Card
Inserting micro SD Card Note: Please choose a branded U3 micro SD card and format the memory card in the camera using the ‘Format Card’ option in the camera settings menu before using the card for the first time (Menu mode > Camera settings). Installing and removing the battery The battery compartment features a sliding lock. -
Page 12: Mode Switching
Switching the camera on and off Press and hold the power button for 3-5 seconds to turn the device on/off. Mode switching Short pressing the power button changes the camera operating modes in the following sequence: Video mode / Photo mode / Menu mode. Inside the Menu you will find: Video settings, Photo settings, Playback mode and Camera settings (various camera system settings or format a memory card). -
Page 13: Menu Mode
Menu mode Switch to video recording mode by repeated pressing the Mode button to select “Menu Mode”. Use the ‘Up’ and ‘Down’ buttons on the camera to navigate between the 4 options • Video Setting: Enter to adjust various setting related to video recording •... -
Page 14: Wifi Control
You can also review your files on your smartphone via WiFi. Note: In the unlikely event that the camera freezes during use, please remove and re-insert the battery. WiFi control Before using the WiFi function, please install the iSmart DV app on your smartphone or tablet PC. -
Page 15: Webcam Function
Webcam function Your action cam also features a webcam function. To use your cam as a webcam please follow the following steps: 1. Remove the battery and memory card. 2. Connect the camera to your computer using the USB cable provided. 3. -
Page 16: Box Contents
Box contents • Action Cam • Waterproof case • Bike mount • Helmet mounts • Orientation arms • Tripod adaptor • Monopod adaptor • Battery • USB Cable... -
Page 17: Specifications
Specifications Image Sensor Type 12MP CMOS Focal Length Lens f= 3.21mm F No. F= 2.8 Lens F.O.V(D) 170° LCD Display 2” 320x240 TFT LCD Focusing Type Fixed Control Programmed AE Compensation ± 2EV (0,33 EV) -2,0 / -1,0 / + 0,0 / + 1,0 / 2,0 Exposure ISO Equivalent Auto, 100, 200, 400, 800, 1600... - Page 18 4K 3840x2160 60fps / EIS 30fps 2.7K 2704x1520 60fps / 30fps Video resolution 1920x1080 120fps / EIS 60fps / EIS 30fps 1280x720 240fps / 200fps / 120fps / 60fps / 30fps Image Stabilization On/Off External memory: supporting U3 micro SDHC cards up to Memory 64GB (not included) Video Encoder...
- Page 19 Self Timer: OFF / 3 sec. / 5 sec. / 10 sec. / 20 sec. Burst Rate: OFF / 3 P/s / 7 P/s / 15 P/s /30P/s Time Lapse Photo Interval: OFF / 3 sec. / 5 sec. / 10 sec. / 30 sec. / 60 sec.
- Page 20 Date Format Y/M/D,D/M/Y,M/D/Y Wi-Fi ON / OFF WiFi SSID GOXTREME WiFi Password 1234567890 Format YES/NO Default Setting YES/NO Version GOXTREME V1.0 Interface USB 2.0: Recharging/File Transfer Power Source Li-ion rechargeable battery 1050mAH L: 61mm, W:42mm, H:23 mm Dimensions (W*H*D) (with lens part will be 33mm) Weight about 78.5g (with battery) Mass Storage Driver...
- Page 21 The manufacturer hereby declares that the CE marking was applied to the product GoXtreme Black Hawk+ in accordance with the basic requirements and other relevant provisions of the following CE Directives: 2014/53/EU 2011/65/EC RoHs 2014/30/EU EMV 2012/19/EC WEEE The EC Declaration of Conformity can be downloaded here: http://www.easypix.info/download/pdf/doc_goxtreme_blackhawkplus.pdf...
- Page 22 DISPOSAL Dispose of packaging For disposal, separate packaging into different types. Cardboard and board must be disposed of as paper and foil must be recycled. Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union. This symbol on the product or on the packaging indicates that this cannot be disposed of as a household waste.
- Page 23 Battery warning • Never dismantle, crush, or pierce the battery, or allow the battery to short-circuit. Do not expose battery being placed in high temperature environment, if battery leaks or bulges, stop continue to use. • Always charge using the charger. Risk of explosion if battery is replaced by an incorrect type.
