USER GUIDE
Congratulations on your purchase
of the GoXtreme Vision+!
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOXTREME VISION+ and is the answer not in the manual?

Questions and answers

Related Manuals for Easypix GOXTREME VISION+

Summary of Contents for Easypix GOXTREME VISION+

  • Page 1 USER GUIDE Congratulations on your purchase of the GoXtreme Vision+!
  • Page 2 IMPORTANT INFORMATION To ensure the optimum performance from your camera, please note the following important information: MicroSD card: • Please ensure your memory card is formatted in the camera before first using the card for the first time (Settings > Format). •...
  • Page 3 WiFi connection: • Ensure you have downloaded the correct companion app for your camera model. • Please note that wireless transfer of files using the app is not possible for video with resolution higher than 1080p. Files using any resolution higher then 1080p can only be accessed via your computer using a card reader.
  • Page 4 • In the unlikely event of overheating, smokes or unpleasant odors coming out of the unit, disconnect it immediately from the charging cable and remove the battery to avoid a fire. WARNING: Before using the camera in the water, make sure that all lids and closures on the camera and underwater housing are closed and sealed.

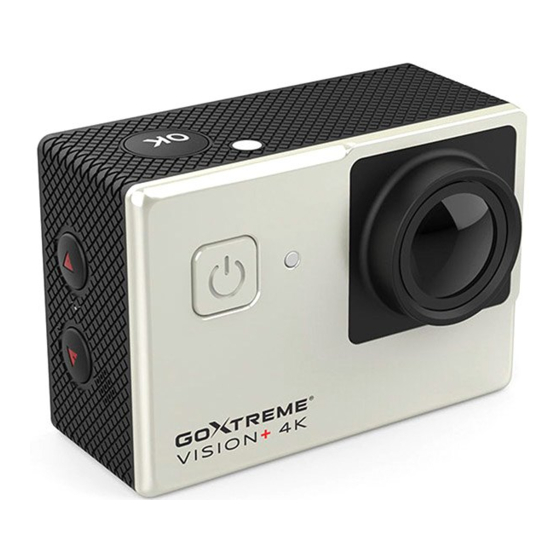

  • Page 5 GOXTREME VISION+ Record / Shutter / OK Power on&off / Back Up / WiFi on & off Down Speaker Micro SD Card Slot HDMI Touchscreen Charging LED Recording LED...

  • Page 6: Charging The Battery

    CHARGING THE BATTERY • Ensure the camera is charged completely before first use. Battery compartment Remove the battery compartment cover and insert the battery. • Keep the device away from children while charging. • Ensure the camera is switched off when charging. If the camera turns on automatically when connected to a power source please turn it off to complete charging.

  • Page 7: Display Icons

    DISPLAY ICONS Time elapsed Total time capacity remaining on card (Video) for current Number of photo capacity remaining on card recording Memory card installed Current recording Battery mode (Video or Photo) level Video / Photo Mode selection Playback Mode Settings Menu Standby: Slide to the right...
  • Page 8 1. SWITCHING BETWEEN PHOTO & VIDEO MODES There are two ways to switch between video / photo: 1. Short press the power button. 2. Simply swipe to the left or right on the touch screen. 2. SELECT A VIDEO / PHOTO FUNCTION Swipe up on the screen and choose between the different functions.
  • Page 9 3. DETAILED PHOTO / VIDEO SETTINGS If you are in photo or video mode, click on the settings icon. The individual settings will then be displayed. Scroll down to see them all. Video/Photo settings General settings Detailed Back settings...

  • Page 10: Playback Mode

    4. PLAYBACK MODE Please click on the playback icon to enter the playback mode: Press to enter Playback mode Play media Slide to next file Delete Back...
  • Page 11 5. SHORT CUTS Swipe down the screen to enter the short cuts menu. Audio recording on/off Switch the WiFi On/Off camera off Touch screen lock...

  • Page 12: Wifi Function

    WiFi FUNCTION Before using the WiFi function, please go to the App Store or GooglePlay and install the XDV PRO app on your mobile phone or tablet PC. There are 2 options to activate the camera WiFi: 1 - Press and hold the UP/ WiFi button for about 3-5 seconds to activate the camera’s WiFi.

  • Page 13: Recording Video

    Please note that it is not possible to wirelessly playback or transfer any files exceeding 1080p resolution using the app. Files using any resolution higher than 1080p can only be accessed via your computer using a card reader. When using the app for live view the camera screen will only display the WiFi network info.
  • Page 14 Using the Remote You can also use the remote control to start recording. • Press the Record/OK button to start recording. • Press the Record/OK button again to stop recording. NOTE: Pressing the video recording button on the remote while in photo mode will automatically switch the camera to video recording mode and start the recording.

  • Page 15: Taking A Photo

    LOOP: When the 'Loop Recording' option is activated the camera will record a video for the duration of time chosen and when the time has elapsed the camera will start recording a new file for the same period of time. Each time a new recording is started it automatically overwrites the last recording.

  • Page 16: Photo Modes

    PHOTO MODES PHOTO: Press the ‘Settings Menu’ icon to choose your photo resolution and additional settings options. After adjusting a specific setting, press the ‘Back’ icon to return to the recording screen. AUTO: With the Auto-Shoot function activated the camera automatically takes a series of timed photos in repetition until the shutter button is pressed to stop the sequence.
  • Page 17 PLAYBACK Tap the ‘Playback’ icon on the touchscreen. The counter on the top of the screen will display the current file number and the total number of files available to view. Tap the left (<) and right (>) icons to navigate through the various files. When a video file is selected the ‘Play’button will appear.

  • Page 18: Wifi Information

    WiFi INFORMATION: • WiFi ID - Displays the device network ID – this is the network you should search for in your smartphone WiFi settings screen when connecting to the camera. • Wi-Fi pwd – This is the password required to complete the connection between your camera and your smartphone.
  • Page 19 AUTO POWER OFF: To help prolong battery life the camera can be set to power off after a preset period of time. BUTTON PROMPT: Adjusts the volume of the ‚beep’ TIME FORMAT: Choose your preferred option of how the date is displayed on screen and in recordings and photos.
  • Page 20 All product specifications are correct at time of print and are subject to change without prior notice. Easypix GmbH reserve the right for errors or omissions. For technical help please visit our support area on www.easypix.eu. CONFORMITY The manufacturer hereby declares that the CE marking was applied to the product...
  • Page 21 DISPOSAL Dispose of packaging For disposal, separate packaging into different types. Cardboard and board must be disposed of as paper and foil must be recycled. Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union. This symbol on the product or on the packaging indicates that this cannot be disposed of as a household waste.
  • Page 22 Battery warning • Never dismantle, crush, or pierce the battery, or allow the battery to short-circuit. Do not expose battery being placed in high temperature environment, if battery leaks or bulges, stop continue to use. • Always charge using the charger. Risk of explosion if battery is replaced by an incorrect type.
