Commissioning
A connection needs to be setup only once per session or any time the communication settings are changed. If
the work is saved to a project file then the connection does not need to be setup unless different communication
settings are used.

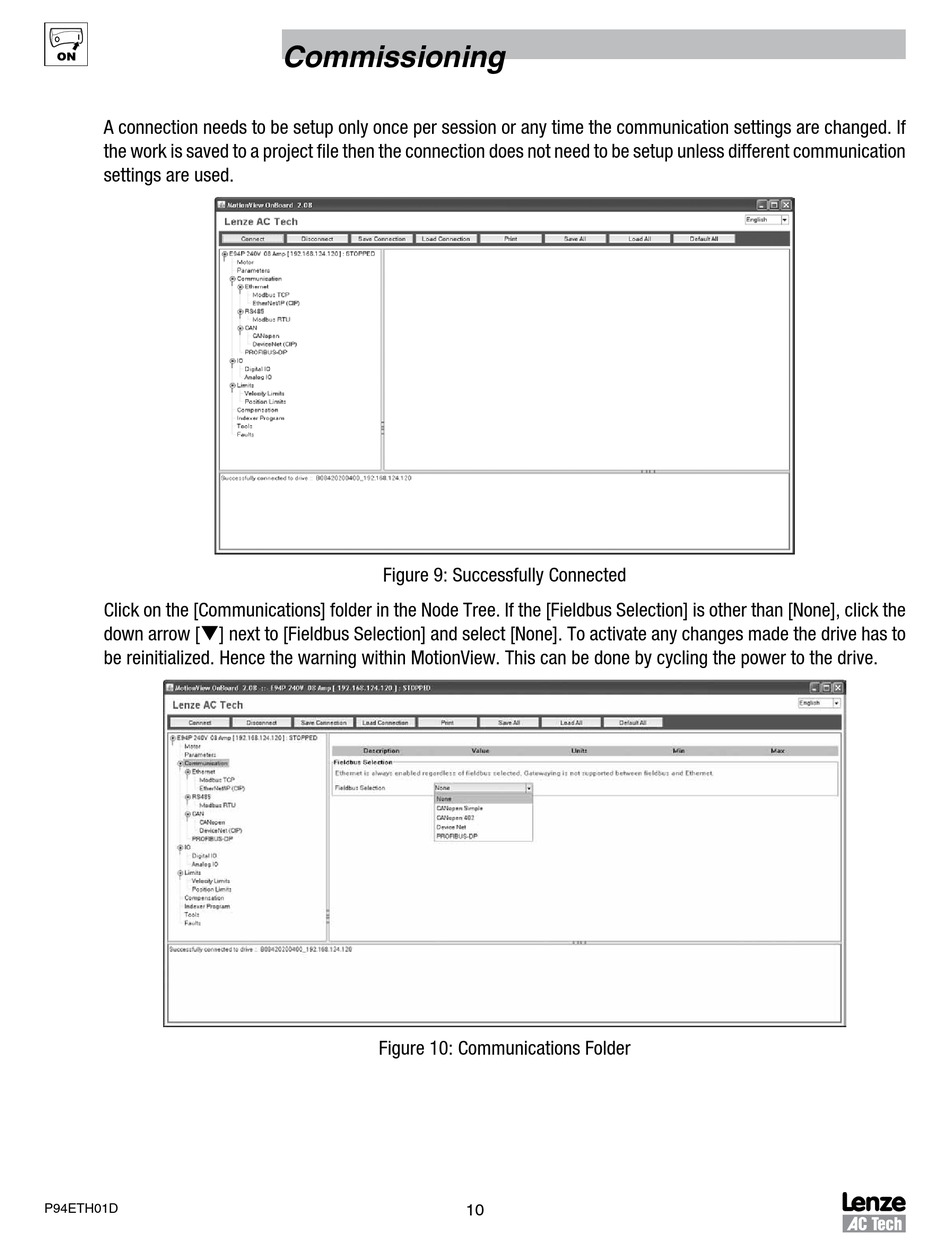

Figure 9: Successfully Connected
Click on the [Communications] folder in the Node Tree. If the [Fieldbus Selection] is other than [None], click the
down arrow [q] next to [Fieldbus Selection] and select [None]. To activate any changes made the drive has to
be reinitialized. Hence the warning within MotionView. This can be done by cycling the power to the drive.
Figure 10: Communications Folder
