Step 3

N OTE: The blue wire
is only needed when
connecting a CT to Port
3, which is not used in a
2-phase, consumption only
installation. If the blue wire
is not needed, twist the
wire nut onto the blue wire.
For more installation types,
visit www.generac.com/
service-support/PWRview

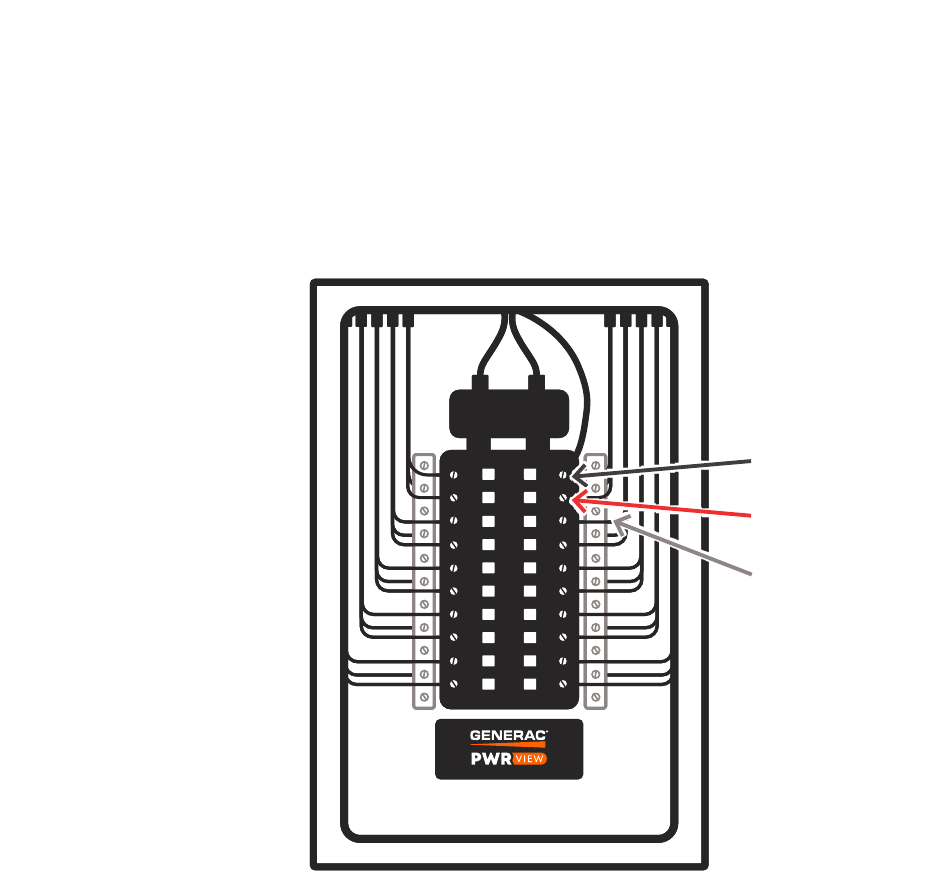

CO NNE C T TH E VOLTAG E CA BL E
Connect the black and red wires to a 2 pole 15A or
20A circuit breaker. The black wire should go to Phase
A and the red to Phase B. Connect the white wire to
the neutral bus bar usually located next to the breaker
O F F O F F
O F F
Black Wire
Red Wire
White Wire
