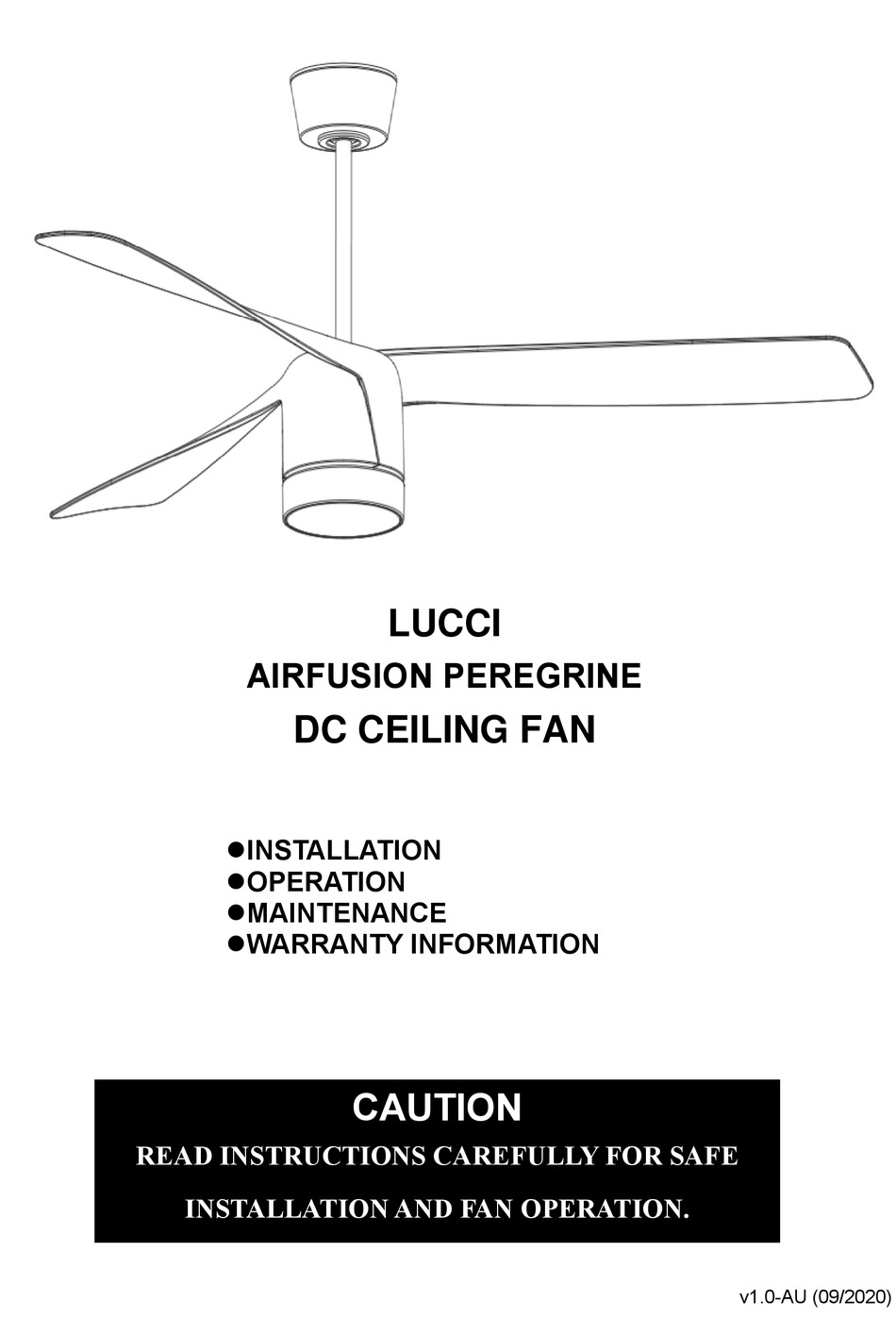

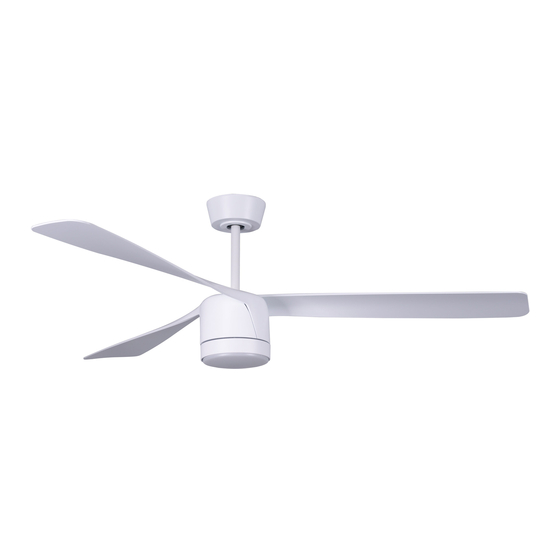

- Page 1 LUCCI AIRFUSION PEREGRINE DC CEILING FAN ⚫ INSTALLATION ⚫ OPERATION ⚫ MAINTENANCE ⚫ WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. v1.0-AU (09/2020)
-
Page 2: Safety Precautions
AIRFUSION PEREGRINE Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 AIRFUSION PEREGRINE Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all- pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
AIRFUSION PEREGRINE Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
AIRFUSION PEREGRINE Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET •... - Page 6 AIRFUSION PEREGRINE Installation Instructions INSTALLATION OF BLADE (Fig. 4) 1. Install the fan blade to the fan assembly by tightening the 2 screws. Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing. Take care not to over tighten the screws, as this can damage the blades 2.
-
Page 7: Hanging The Fan
AIRFUSION PEREGRINE Installation Instructions INSTALLATION OF Bottom cover (Fig. 6) • If no lamp is required, Install the bottom cover to the fan assembly then secure it by turning clockwise. Fig. 6 HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. - Page 8 AIRFUSION PEREGRINE Installation Instructions ELECTRICAL WIRING DIAGRAM THE FAN PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 8) WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING.
-
Page 9: Finishing The Installation
AIRFUSION PEREGRINE Installation Instructions From mains supply to mounting bracket terminal block: (Fig. 8) Connect the live supply wire to the “L” terminal of the terminal block on the mounting bracket. Connect the neutral supply wire to “N” terminal of the terminal block on the mounting bracket. - Page 10 AIRFUSION PEREGRINE Installation Instructions Fig. 10 INSTALLATION OF THE REMOTE CONTROL HOLDER (Fig. 11) 1. Locate a suitable wall to fix the remote control holder with the 2 screws. (Fig.11a). 2. Slide the remote into the holder to rest the remote. (Fig. 11b) Fig.
-
Page 11: Using Your Ceiling Fan
AIRFUSION PEREGRINE Installation Instructions USING YOUR CEILING FAN NOTE: The remote and receiver will need to be paired after the installation of the ceiling fan. NOTE: When two or more ceiling fans are installed in one location, please refer to the instruction on the next page. - Page 12 AIRFUSION PEREGRINE Installation Instructions PAIRING REMOTE & RECEIVER – WHEN 2 OR MORE DC CEILING FANS ARE INSTALLED IN ONE LOCATION When two or more fans are located near each other, you may want to have the remote/receiver for each fan set to a different code, so that the operation of one fan does not affect the operation of the other fan/s.
- Page 13 AIRFUSION PEREGRINE Installation Instructions Remote Control Buttons ( Fig. 13) 1 - FAN SPEED CONTROL BUTTON: There are 6 available speeds. “I” button is for the lowest speed, and “VI” button is for the fastest speed. NOTE: when you turn on the fan for the first time or switch the main power to the controller, you need to start the fan on high “VI”...
-
Page 14: After Installation
AIRFUSION PEREGRINE Installation Instructions THE RECEIVER PROVIDES THE FOLLOWING LEVEL OF PROTECTION: • Lock position: the receiver has a built in safety feature to protect against obstruction during operation. The motor will be locked from operation and will disconnect from power after 30 seconds of interruption. -
Page 15: Technical Information
AIRFUSION PEREGRINE Installation Instructions SAFETY PRECAUTIONS FOR BATTERY WARNING – Keep new and used batteries away from children. CAUTION – Do not ingest battery—Chemical burn hazard. CR2032 DC battery Always use type with this ceiling fan remote controller. Ensure the batteries are inserted with the correct polarity. - Page 16 AIRFUSION PEREGRINE Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 17 AIRFUSION PEREGRINE Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME……………………………………………………………………………………………………..… ADDRESS……………………………………………………………………………………………..…… ……………………………………………………POSTCODE…………………………………………… MODEL NUMBER………………………………………………………………………………………..… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE …………………………………………………………………………….
