NexusLink GPL-1200WAC Quick Install Manual

A

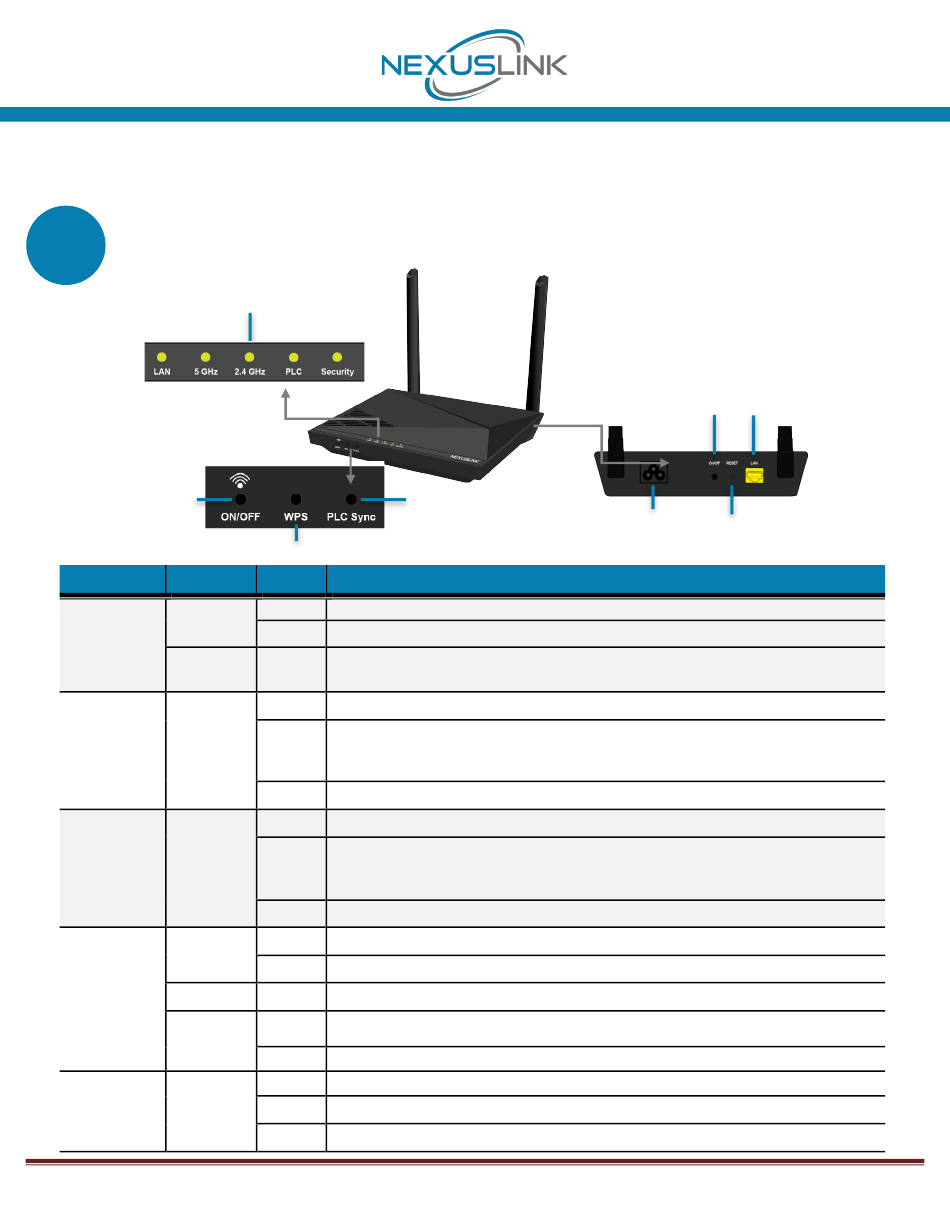

Getting to Know Your G.hn Powerline Adapter

LED Descriptions
are Listed Below
WiFi
Power
On/Off
Button
LED Color
Green
LAN
Orange
5GHz
Blue
2.4GHz
Green
Green
PLC
Orange
Red
Security
Green
Quick Install Guide

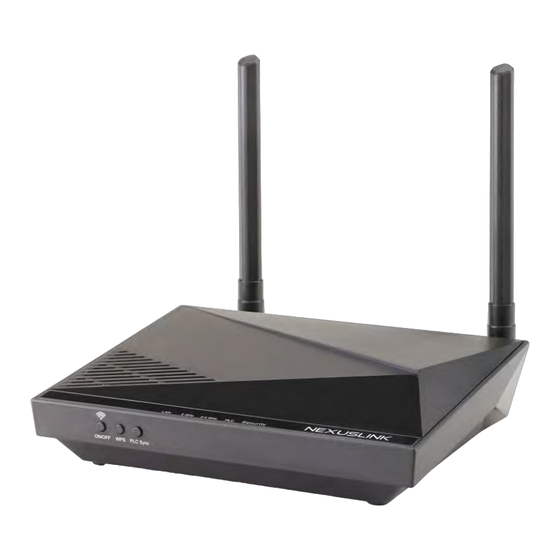

GPL-1200WAC G.hn Powerline Adapter with WiFi
WPS Connection Button
Mode Description
On An Ethernet LAN connection is established.
Off An Ethernet LAN connection does not exist.
Fast Blinking: WPS SSID/Key sync failed.
On
Slow Blinking: WPS SSID/Key sync is active or the adapter is Factory Resetting.
On The 5GHz WLAN is on/ activity is occurring.
Fast Blinking: WPS SSID/Key sync failed.
Blinking Slow Blinking: Either normal WPS sync activity, WPS SSID/Key sync is active, or the
adapter is Factory Resetting.
Off The 5GHz WLAN is disabled.
On The 2.4 GHz WLAN is on/ activity is occurring.
Fast Blinking: WPS SSID/Key sync failed.
Blinking Slow Blinking: Either normal WPS sync activity, WPS SSID/Key sync is active, or the
adapter is Factory Resetting.
Off The 2.4GHz WLAN is disabled.
On The current connection (line rate) is more than 40 Mbps.
Blinking The system is rebooting.
On The current connection (line rate) is more than 20 Mbps and less than 40 Mbps.
(1). The current connection (line rate) is between 1 and 20 Mbps.
On
(2). The PLC is in unsecure mode* and connected to other Adapters.
Off A PLC connection does not exist.
On The Adapter is paired in Secure Mode.
Blinking The Adapter is in Configuration Mode.
Off The Adapter is not paired in Secure Mode.
Adapter
Pairing
Button
Gigabit
On/Off
Ethernet
Power
Port
Button
Power Port Reset Button
Press for more than10
seconds for Factory
Reset.
