NexusLink GPL-1200WN-KIT Quick Install Manual

GPL-1200WN-KIT G.hn Powerline Adapter with WiFi Kit
A

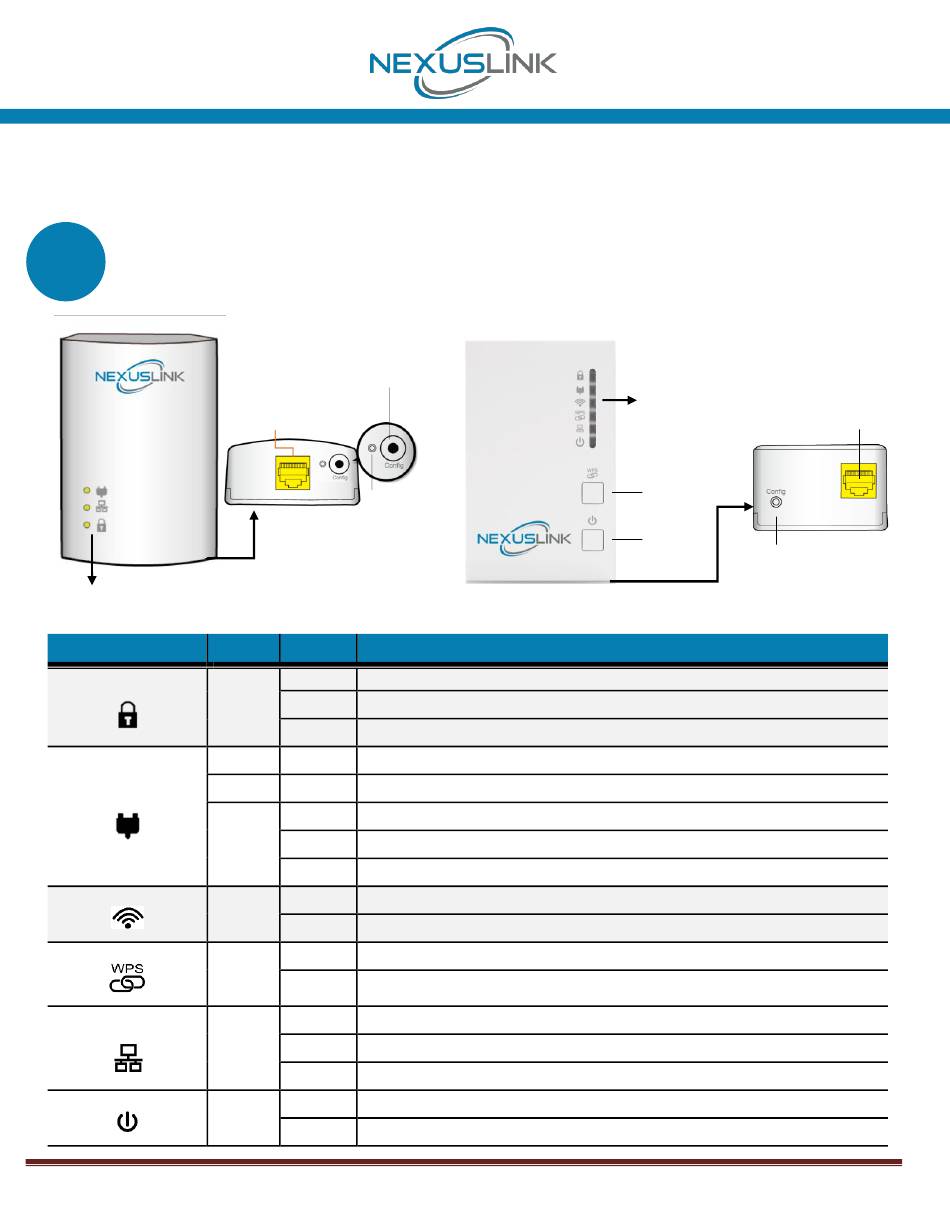

Getting to Know Your G.hn Powerline Adapters

GPL-1200
LED Descriptions Below
LED Color
Security
Green
Green
Orang
Connection
e
Red
WiFi
Green
*Applies only to GPL-1200WN
WPS
Green
*Applies only to GPL-1200WN
Ethernet
Green
Power
Green
*Applies only to GPL-1200WN
Quick Install Guide
Config
Button*
(Enables Device
Synchronization)
Ethernet
Port
Power
Saving
Button
*
Press for 10 seconds for Factory Reset.
Mode Description
On The Adapter is paired in Secure Mode.
Blinking The Adapter is in Configuration Mode.
Off The Adapter is not paired in Secure Mode .
On The current connection (line rate) is more than 40Mbps.
On The current connection (line rate) is between 20Mbps and 40Mbps.
On The current connection (line rate) is between 1Mbps and 20Mbps.
Off An Adapter connection does not exist.
Blinking Adapter is in Power Saving Mode (blinks twice every 5 seconds).
Off The Adapter's Wireless is not active.
Blinking The Adapter's Wireless is active.
Off The WPS function is disabled or there is not activity.
Blinking The WPS function is active.
On An Ethernet LAN connection is established.
Blinking Data over the Ethernet LAN connection is being transmitted.
Off An Ethernet LAN connection is not established.
On The Adapter is powered on.
Off The Adapter is powered off.

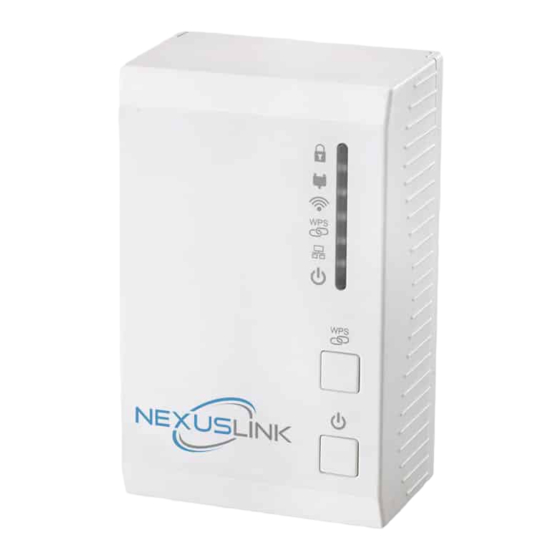

GPL-1200WN
LED
Descriptions
Below
WPS*
Power
Ethernet
Port
Config Button
(Enables Device
Synchronization)
