A
Understanding Your Powerline Adapter
Security Button
Enables Device Synchronization
in Secure Mode
Reset Button
Press for more than 10
seconds for Factory Reset
LED
Color
Power LED
Green
Off
Green
Connection LED
Orange
Red
Off
Security LED
Green
Off
Etherent LED
Green
Off
Quick Install Guide

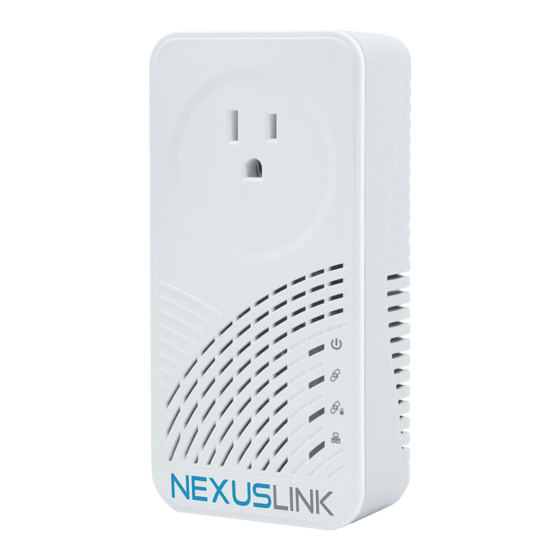

GPL-2000PT G.hn 2000 Powerline Adapter
Mode
Description
On
The Adapter is powered on.
Off
The Adapter is powered off or faulty.
On
The current connection (line rate) is more than 40Mbps.
On
The current connection (line rate) is between 5Mbps and 40Mbps.
On
The current connection (line rate) is less than 5Mbps.
Off
An Adapter connection does not exist.
On
The Adapter is secure (it has received or generated network keys).
Blinking
The Adapter is in the process of being secure.
Off
The Adapter is not secure.
On
An Ethernet LAN connection is established.
Blinking
Data over the Ethernet LAN connection is being transmitted.
Off
An Ethernet LAN connection is not established.
Ethernet Port
Page 1
LED Icons
Descriptions are
provided below.
Advertisement
Table of Contents
Related Manuals for NexusLink GPL-2000PT
Summary of Contents for NexusLink GPL-2000PT
-
Page 1: Ethernet Port
Quick Install Guide GPL-2000PT G.hn 2000 Powerline Adapter Understanding Your Powerline Adapter Security Button Enables Device Synchronization in Secure Mode LED Icons Descriptions are provided below. Ethernet Port Reset Button Press for more than 10 seconds for Factory Reset Color... - Page 2 Initial Powerline Adapter Setup NOTE: A minimum of two G.hn Powerline Adapters are required. → If you are setting up a G.hn Powerline network for the first time, then follow the below steps. → If you are adding to an existing G.hn Powerline network, then skip to Steps 3-4. 1.
- Page 3 Network Device (Modem, Router, or Access Point) Set-Top-Box Pairing the Powerline Adapters 5. Press the Security Button on one Adapter until you see the Security LED start blinking GREEN. Then press the Security Button on the second Adapter until you see the Security LED start blinking GREEN.
- Page 4 • Do NOT insert sharp objects into the adapter’s socket • Socket maximum output is 15A ADDITIONAL HELP: Visit the GPL-2000PT Product Webpage for additional resources such as a User Manual, FAQs, and/or Videos. Link: nexuslinkusa.com/product/gpl-2000pt Support: Call: (855) 337-6750 Email: Support@NexusLinkUSA.com...
