GPL-2000S4 G.hn 2000 Powerline with 4-Port Gigabit Ethernet Switch
A

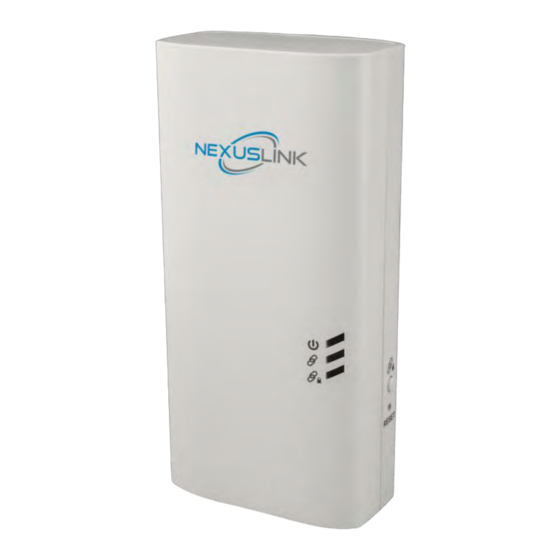

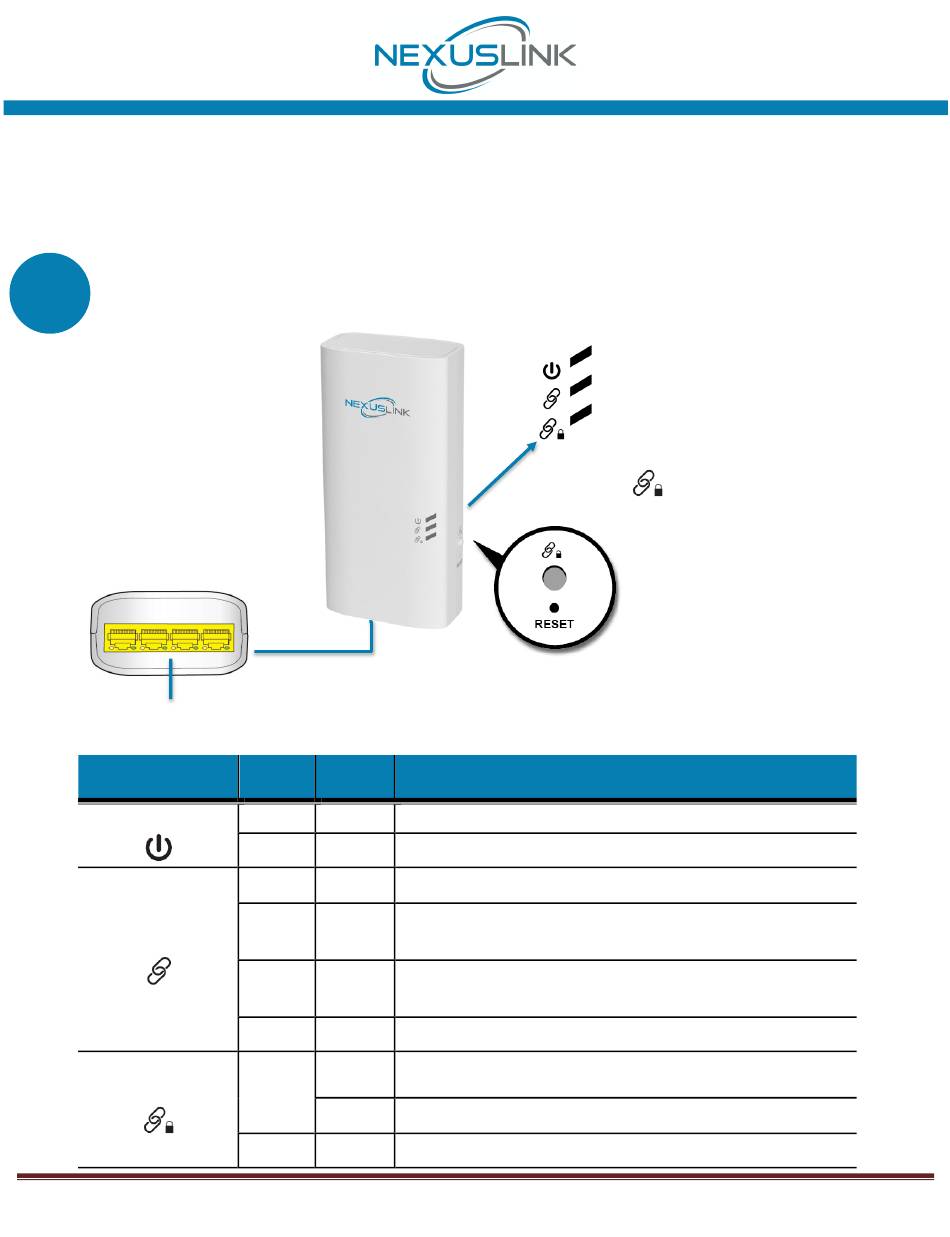

Understanding Your Powerline Adapter

Ethernet Port
LED
Power LED
Connection LED
Security LED
Quick Install Guide
Color
Mode
Description
Green
On
The Adapter is powered on.
Off
Off
The Adapter is powered off or faulty.
Green
On
The current connection (line rate) is more than 40Mbps.
The current connection (line rate) is between 5Mbps and
Orange
On
40Mbps.
Red
On
The current connection (line rate) is less than 5Mbps.
Off
Off
An Adapter connection does not exist.
The Adapter is secure (it has received or generated
On
network keys).
Green
Blinking
The Adapter is in the process of being secure.
Off
Off
The Adapter is not secure.
LED Icons
Descriptions are
provided below.
Security Button
Enables Device
Synchronization in
Secure Mode
Reset Button
Press for more than 10
seconds for Factory Reset
Page 1
