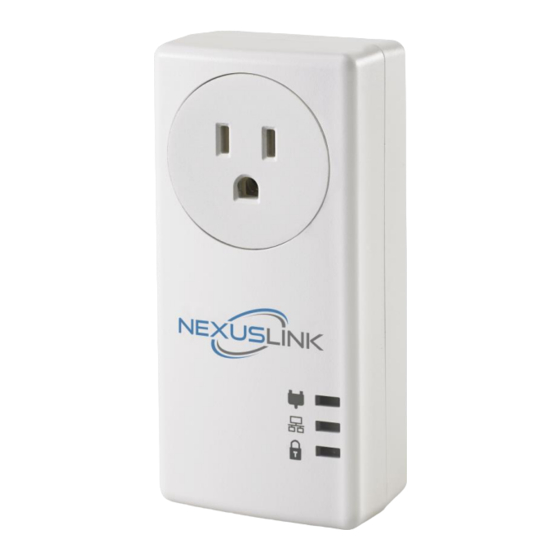

GPL-1200PT G.hn Powerline Adapter with a Pass-Through Outlet
A
Getting to Know Your G.hn Powerline Adapter
Security Button
Enables Device
Synchronization in Secure
Mode
Reset Button
Press for more than 10
seconds for Factory
Reset
LED
Color
Green
Orange
Connection
Red
Ethernet
Green
Security
Green
B
Quick Install Guide
Mode
Description
On
The current connection (line rate) is more than 40Mbps.
On
The current connection (line rate) is between 20Mbps and 40Mbps.
On
The current connection (line rate) is between 1Mbps and 20Mbps.
Off
An Adapter connection does not exist.
Blinking
Adapter is in Power Saving Mode (blinks twice every 5 seconds).
On
An Ethernet LAN connection is established.
Blinking
Data over the Ethernet LAN connection is being transmitted.
Off
An Ethernet LAN connection is not established.
On
The Adapter is paired in Secure Mode.
Blinking
The Adapter is in Configuration Mode.
Off
The Adapter is not paired in Secure Mode .
Ethernet Port
Connection LED- Displays Connection Strength
Ethernet LED- Displays Network Connection Status
Security LED- Connection is Secure When Lit
Page 1
Advertisement
Table of Contents
Related Manuals for NexusLink GPL-1200PT
Summary of Contents for NexusLink GPL-1200PT
-
Page 1: Ethernet Port
Quick Install Guide GPL-1200PT G.hn Powerline Adapter with a Pass-Through Outlet Getting to Know Your G.hn Powerline Adapter Security Button Enables Device Synchronization in Secure Mode Ethernet Port Reset Button Press for more than 10 Connection LED- Displays Connection Strength... - Page 2 Initial Powerline Adapter Setup NOTE: A minimum of two G.hn Powerline Adapters are required. → If you are setting up a G.hn Powerline network for the first time, then follow the below steps. → If you are adding to an existing G.hn Powerline network, then skip to Steps 3-5. 1.
- Page 3 both Powerline Adapters should be GREEN, which represents a strong connection. Modem/Router Powerline Set-Top-Box Ethernet Cable Pairing the Powerline Adapters 5. Press the Security Button for 3 seconds on one Adapter until you see the Security LED start blinking GREEN. Then press the Security Button on the second Adapter until you see the Security LED start blinking GREEN.
- Page 4 Do NOT insert sharp objects into the adapter’s socket • Socket maximum output is 12A • ADDITIONAL HELP: Visit the GPL-1200PT Product Webpage for additional resources such as a User Manual, FAQs, and/or Videos. Link: nexuslinkusa.com/product/gpl-1200pt Support: Call: (855) 337-6750 Email: Support@NexusLinkUSA.com...
Need help?
Do you have a question about the GPL-1200PT and is the answer not in the manual?
Questions and answers
I have a GPL-1200 with pass through. Worked well when i first plugged it in now it does not connect to the internet. The light that indicates that data is passing is rapidly flashing green. The light indicating an internet connection is not on.
If your NexusLink GPL-1200PT is not connecting to the internet and the data light is rapidly flashing green, follow these steps:
1. Check LAN Connection – Ensure the Ethernet cable is securely connected between the adapter and your router or device.
2. Verify Powerline Connection – Press the Security button on one adapter for 3 seconds until the Security LED flashes green, then press the Security button on the additional adapter.
3. Reset the Adapter – If the issue persists, reset the device by holding the Reset button for more than 10 seconds until all LEDs blink.
4. Check IP Configuration – Log in to the web interface by entering the default IP address (e.g., http://192.168.0.5) in a browser and verify the assigned IP address.
5. Ensure Proper Placement – Avoid using power strips or surge protectors, as they may interfere with the powerline signal.
6. Confirm Powerline Link – The Connection LED should be green, indicating a strong link. If it is red or off, try plugging the adapters into different outlets.
If the problem continues, contact NexusLink support for further assistance.
