HMN M2 User Manual

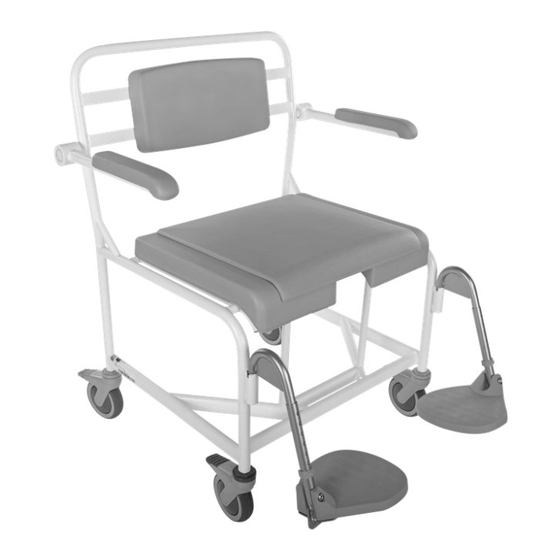

USER GUIDE HEIGHT ADJUSTABLE SHOWER/COMMODE CHAIR, MODEL M2 BOXED CHAIR
INTENTED FOR USE A BATHING, SHOWERING AND TOILET VISIT.
STEP 1. ASSEMBLY OF WHEELS
STEP 2. ASSEMBLY OF BACK ON FRAME
STEP 3. ASSEMBLY/DISASSEMBLT OF ARMREST
STEP 4. LOCKING OF WHEELS

MOUNTING OF FOOTRESTS

THE PAN/BUCKET

LAY DOWN THE CHAIR.
TAKE THE CLIPS OUT OF THE LEG AND INSER
THE WHEELS INTO THE FRAME.
MAKE SURE THAT ALL 4 WHEELS ARE IN THE
SAME HEIGHT BEFORE INSERTING THE CLIPS.
TURN THE CHAIR OVER FOR EASIER
ASSEMBLY OF THE WHEELS.
ATTACH THE BACK INTO THE FRAME.
INSERT THE 4 SCREWS AND TIGHTEN WITH AN
ALLEN WRENCH.
MAKE SURE THAT ALL 4 SCREWS ARE
SECURELY TIGHTENED.
REMEMBER TO RETIGHTENING AFTER A
MONTH.
THE SCREWS SHALL BE DISCARDED AFTER
THE MOUNTING AND YOU SHALL USE THE
SCREWS TO THE NEXT MOUNTING.
Art. No. 800290
TO ATTACH OR DETACH THE ARMRESTS, HOLD
THE ARMRESTS IN A 45 DEGREE ANGLE AND
FIT IT OVER THE ARMREST HOLDER.
BEFORE USE OF THE CHAIR BATHING,
SHOWERING OR LIFTING PERSONS INTO THE
CHAIR, MAKE SURE THAT ALL 4 WHEELS ARE
LOCKED.
TO LOCK THE CHAIR, PRESS DOWN THE GREY
PLATE AS SHOWN ON THE PICTURE TO THE
ADJUST THE HEIGHT OF THE FOOTRESTS BY
TAKING THE CLIPS OUT, PLACING THE
FOOTRESTS IN THE WISHED POSITION AND
PUTTING THE CLIPS BACK IN.
FOOTRESTS ARE TO BE PLACED ON THE
FRONT OF THE FRAME IN THE FOOTRESTS
HOLDERS.
WHEN SLIDING THE BUCKET OF THE CHAIR, IT
IS IMPORTANT TO SLIDE IT STRAIGHT
BACKWARDS ALONG THE SEAT.
OTHERWISE IT CAN BE VERY DIFFICULT TO
GET THE BUCKET OF THE CHAIR.
LEFT.
