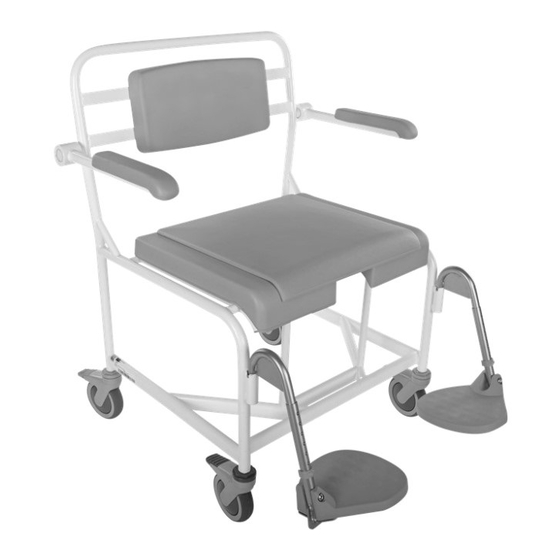

Commode chair with 24 inch wheels
Hide thumbs Also See for M2:

Advertisement

The bushings to the 24-inch wheels are taken off with a wrench key and moved to
the desired height.
The anti-tip bar Is moved to the same postion as the 24-inch wheels.
The clips holding the front wheels are taken out, and the front wheels are moved to
the desired height.
The front wheels can be pu in a position which is ONE (1) position different from the
25 inch wheels (if you want the chair to be slightly tilted)
All other adjustments shall be in the same position! (For example: in the top
hole). Double check that all nuts and bolts are tightened and that all the clips
are pressed in place.
2 x Brakes, 4 x washers and 4 x bolts
Mount the washers and bolts

Adjusting the brakes

Loosen the bolts and move the brake so it has the wanted impact.
Tighten the bolts well!
M2 shower/commode chair with 24 inch wheels

How to mount the wheels:

How to adjust the height:

Make sure to tighten the bolts well
For mounting:
User guide
The axel is clicked into the bush. Pull the wheel to make sure it is correctly
But be careful not to tighten the bolts too much. Using the chair without the
driving belt, the wheels will get more elastic.
(when you receive the chair it is adjusted to the middle position in height)

Mount the brakes

When sliding the bucket of the chair, it is important to slide
Otherwise, it can be very difficult to get the bucket of the chair.
mounted.
Mount the brake on the chair.
Fasten the bolts

Pan / bucket

it straight backwards, along the seat.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2 and is the answer not in the manual?

Questions and answers

Summary of Contents for HMN M2

  • Page 1 User guide M2 shower/commode chair with 24 inch wheels How to mount the wheels: The axel is clicked into the bush. Pull the wheel to make sure it is correctly mounted. But be careful not to tighten the bolts too much. Using the chair without the driving belt, the wheels will get more elastic.
  • Page 2 Terms of claim for frame. non-abrasive detergent. Wash and dry the product after the HMN grants 5 years claim rights against frame break-down for all M2 cleaning. The product can be washed up to 85° degrees in 3 Shower/commode chairs and stainless steel shower stools.
