Assembling The Vertical Sections - DX Engineering DXE-AL24 Manual

Using the second 10-24 x 3/4" Hex Head Bolt, #10 hardware and wire with two ring terminals,
install the grounding bolt and hardware and wire in the hole near the top of the Mounting Plate as
shown in Figure 8. Connect the other end of the wire with terminals to the "Ground" connection on
the Hi-Z Plus-6 High Impedance Amplifier case as shown in Figure 8.

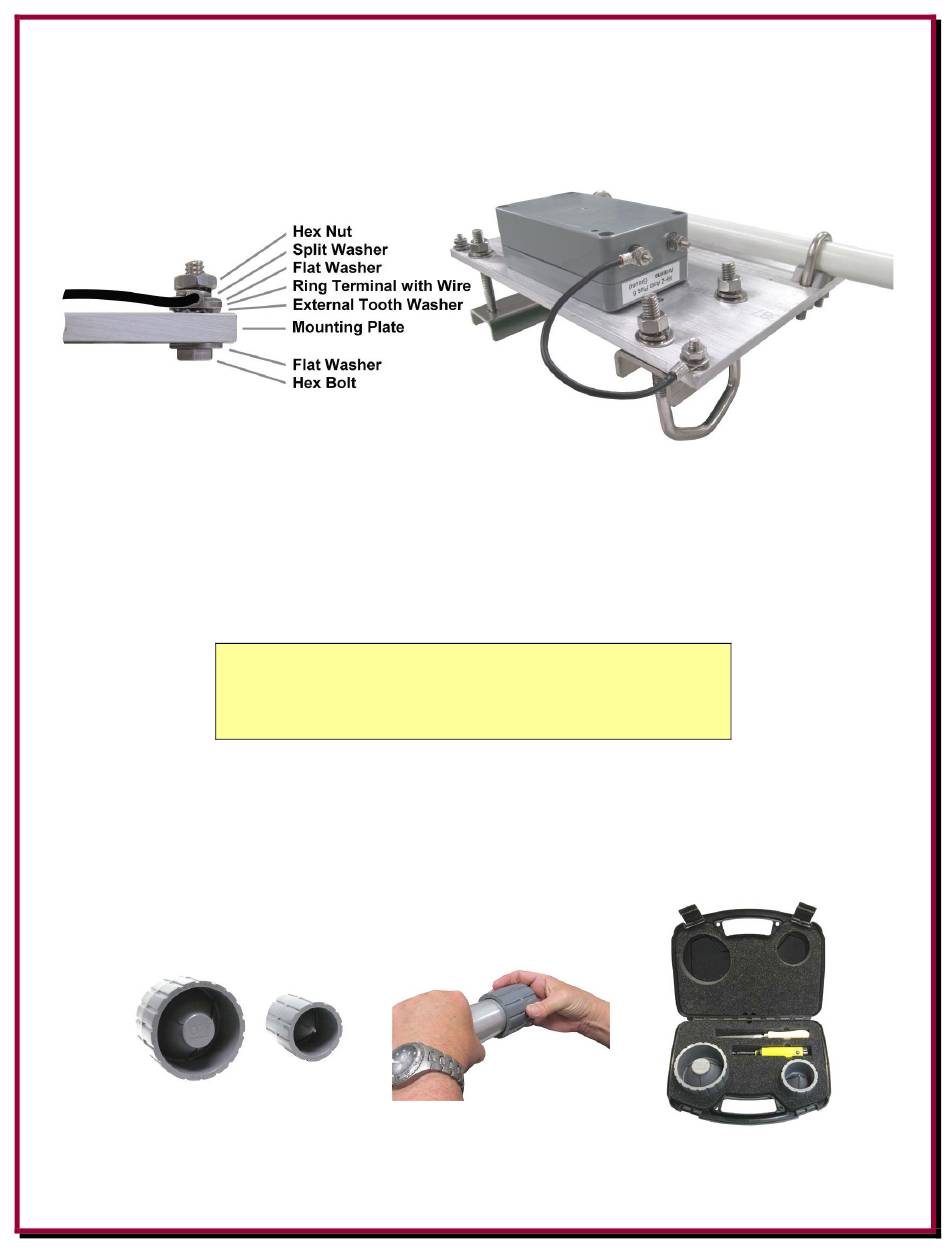

Figure 8 - Ground Connection from Mounting Plate to the optional
Assembling the Vertical Element Sections
Take precautions to ensure you do not get accidentally cut.
The raised particles and shavings that appear when the aluminum tubing is machined are
referred to as burrs, and the process by which they are removed is known as deburring.
Deburring is a finishing method used in manufacturing. Our aluminum tubing is machine cut on
both ends and machine slit on one end. Although DX Engineering manufactured aluminum
tubing is deburred, you should further assure that there are no ragged edges or protrusions.
Use the DXE-UT-KIT-DBR for this operation.
Hi-Z Plus-6 High Impedance Amplifier
Caution
Aluminum tubing edges can be very sharp.
