DX Engineering DXE-ARAV-R Manual

Active receive antenna
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

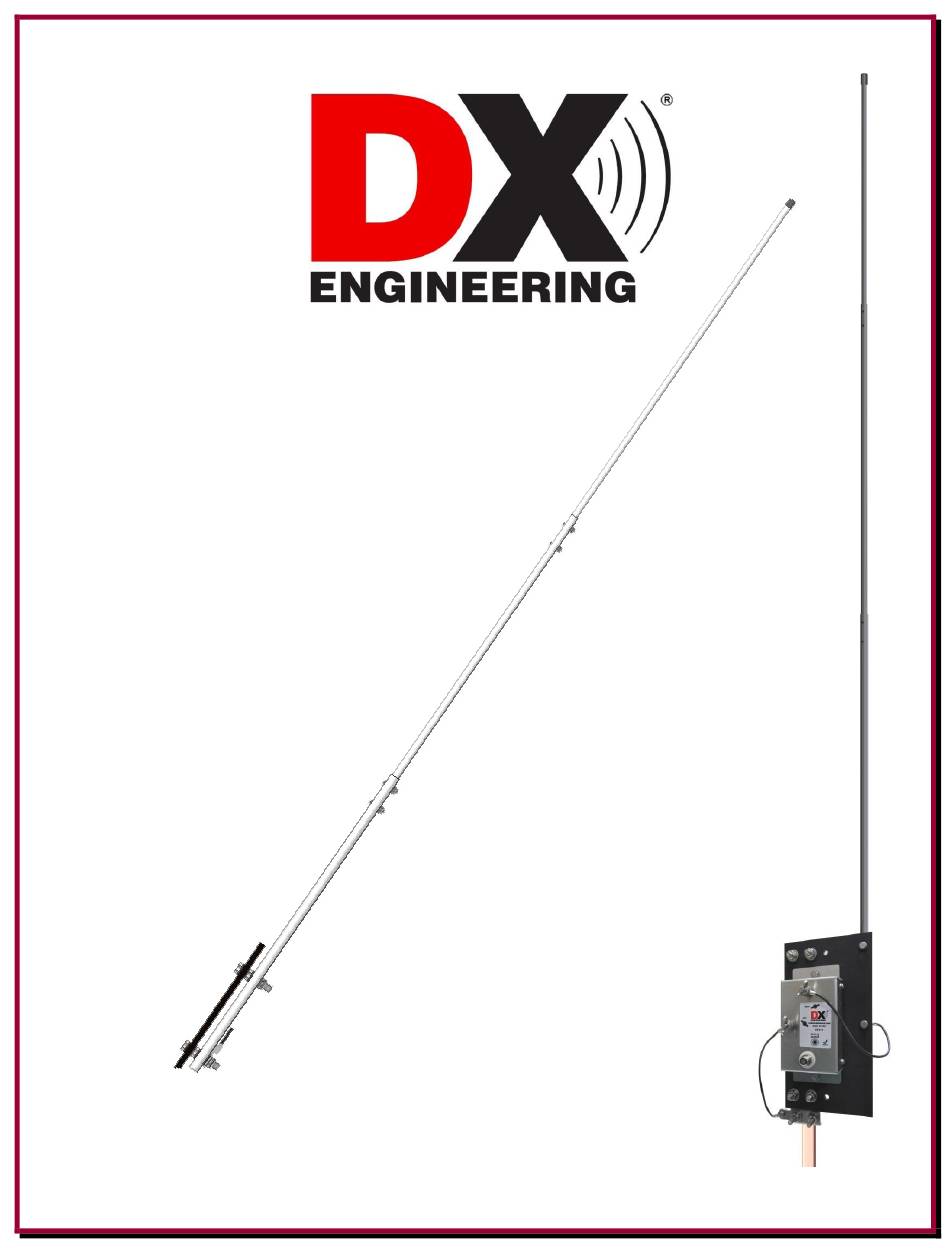

Active Receive Antenna
3-Piece ARAV Antenna Retrofit Kit
3-Piece ARAV Antenna
DXE-ARAV-R ARAV Antenna Retrofit Kit
DXE-ARAV-A ARAV Antenna Kit
DXE-ARAV-AR-INS Revision 0
© DX Engineering 2019
1200 Southeast Ave. - Tallmadge, OH 44278 USA
Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200
Fax: (330) 572-3279 ∙ E-mail: DXEngineering@DXEngineering.com
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DXE-ARAV-R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DX Engineering DXE-ARAV-R

Summary of Contents for DX Engineering DXE-ARAV-R

  • Page 1 Active Receive Antenna 3-Piece ARAV Antenna Retrofit Kit 3-Piece ARAV Antenna DXE-ARAV-R ARAV Antenna Retrofit Kit DXE-ARAV-A ARAV Antenna Kit DXE-ARAV-AR-INS Revision 0 © DX Engineering 2019 1200 Southeast Ave. - Tallmadge, OH 44278 USA Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200 Fax: (330) 572-3279 ∙...

  • Page 2: Manual Updates

    Every effort is made to supply the latest manual revision with each product. Occasionally a manual will be updated between the time your DX Engineering product is shipped and when you receive it. Please check the DX Engineering web site (www.DXEngineering.com) for the latest revision manual.

  • Page 3: Part Lists

    Part Lists Both DXE-ARAV-R Retrofit Kit and DXE-ARAV-A Antenna Kit contain the following parts: Drawing ARAV4-Antenna & Hardware Ref # 7/64" Allen Wrench 3/32" Allen Wrench Tube, Aluminum, 0.500" x .058" Wall x 36" L Tube, Aluminum, 0.375" x .058" Wall x 36" L Tube, Aluminum, 0.250"...
  • Page 4 Remove the AVA from the existing black mounting plate Orient the new black mounting plate with the antenna mounting holes close to the top, as shown below. Mount the AVA-2 matching unit with the ANT + terminal toward the top and the F- Connector toward the bottom.
  • Page 5 ™ NOTE: Use JTL-12502 - Jet-Lube SS-30 on the joints between the antenna elements and on all stainless steel hardware threads to prevent galling and to ensure proper torque. Antenna and Antenna Mounting Parts List Item Description Item Description Mounting Plate #6-32 x 3/4”...
  • Page 6 Bottom Antenna Element Assembly Refer to the drawing shown below and on page 6 for the antenna assembly. Install 2 hex head bolts (#10-24 x 1-1/2” long) in the mounting plate using flat washers and hex nuts as shown below, tighten in place. Place a flat washer and a spacer on each of the hex head bolts.
  • Page 7 followed by a flat washer, split washer and a hex nut as shown. Note the direction of the wire in the photo. On the top hex head bolt, install a flat washer, split washer and a hex nut. Tighten in place. The other end of the wire has a fork lug, is connected to the ANT+ on the AVA2 as shown below between the two flat washers.

  • Page 8: Technical Support

    Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...

This manual is also suitable for:

Dxe-arav-a
