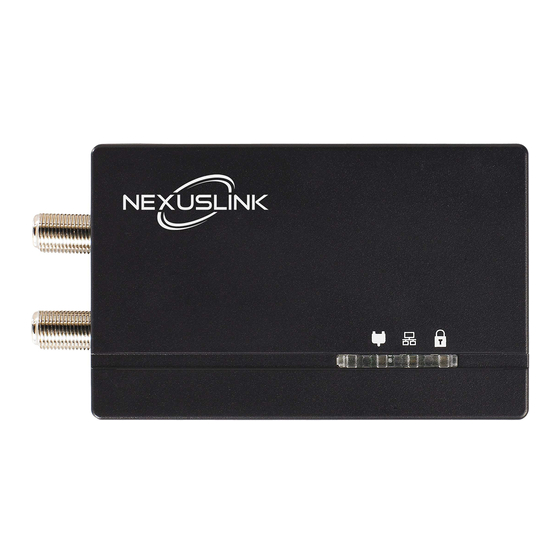

GCA-1200-KIT G.hn Ethernet over Coax Adapter Kit
A
t

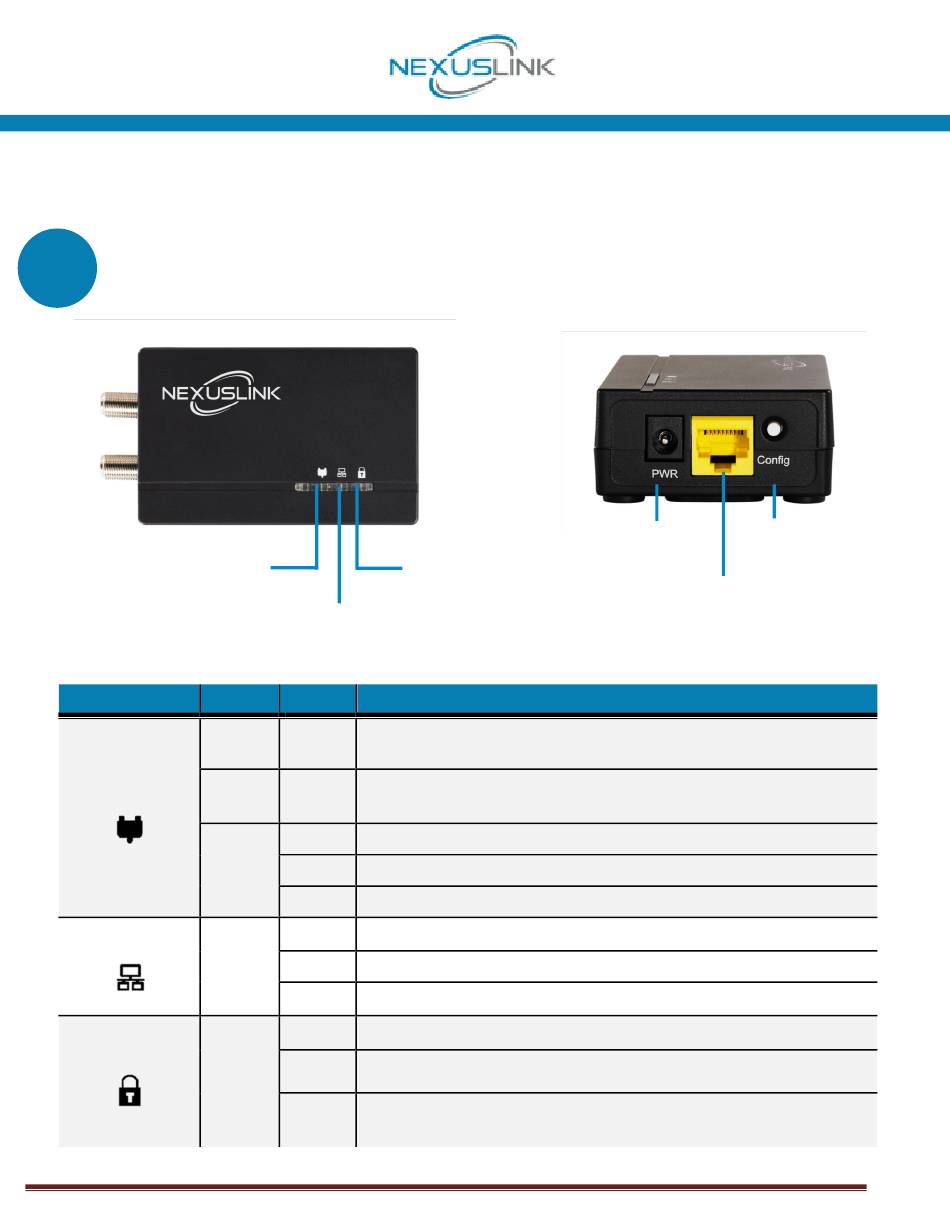

Understanding Your G.hn Coax Adapter
Coverage LED:
Adapters are paired when lit
Directly connected device is active
LED
Connection
Ethernet
Security
Quick Install Guide
Connection is secure when lit
Ethernet LED:
when blinking
Color
Mode
Description
Green
On
The current connection (line rate) is greater than 20 Mbps.
The current connection (line rate) is greater than 20 Mbps and less
Orange
On
than 40 Mbps.
On
The current connection (line rate) is between 1 and 20 Mbps.
Red
Off
No LINK connection exists.
Blink
The adapter is in power saving mode (blinks twice every 5 seconds).
On
A LAN connection is established.
Off
A LAN connection is not established.
Green
Blink
Data is being transmitted/received.
On
The adapter is in secure mode.
Off
The adpter is not in secure mode.
Green
Slow: The adapter is pairing.
Blink
Fast: The adapter is returning to pairing default settings.
Security LED:
Power Plug
Configuration
Button
Gigabit
Ethernet
Port
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NexusLink GCA-1200-KIT
Summary of Contents for NexusLink GCA-1200-KIT
- Page 1 Quick Install Guide GCA-1200-KIT G.hn Ethernet over Coax Adapter Kit Understanding Your G.hn Coax Adapter Power Plug Configuration Button Coverage LED: Security LED: Adapters are paired when lit Connection is secure when lit Gigabit Ethernet Ethernet LED: Port Directly connected device is active...
- Page 2 Initial Device Setup NOTE: A minimum of two G.hn Coax Adapters are required to create a proper connection. Follow Steps 4-8 to add additional G.hn Adapters to your network. 1. Plug the power supply into the Coax Adapter into the power outlet nearest to the network device (Eg.
- Page 3 6. Connect the Coax Adapter to the device with an Ethernet cable. The Ethernet LED the Coax Adapter should light up GREEN. The Coverage LED on the Coax Adapter should now be GREEN or ORANGE. Coaxial Cable HDMI Cable Ethernet Cable Power Adapter IP Set-Top-Box, Game Console, Streaming Player, etc.
- Page 4 GCA-1200 unit is connected firmly to the LAN port of the other device. To check the condition of the Ethernet cable, use another cable to test the same connection. ADDITIONAL HELP: Visit the GCA-1200-KIT Product Webpage for additional resources such as a User Manual, FAQs, and/or Videos. Link: nexuslinkusa.com/product/gca-1200-kit...
