NexusLink GCA-2000-KIT Get To Know

Quick Installation Guide
GCA-2000-KIT G.hn Coax Adapter Kit
IMPORTANT: Read Before Setting Up the Adapter
1. It takes two adapters to create a G.hn Coax Network. If you are adding onto an existing G.hn Coax Network,
then please skip to Step B. If you are adding on to an already securely paired G.hn Coax Network (i.e. the
Security LED is GREEN), then you must complete Step C.
2. We do not recommend using this G.hn Coax Adapter if you receive Cable & Satellite TV services. If this is your
situation, please contact our Tech Support at (855) 313-4433 to discuss alternative options for your connectivity.
A) Set Up the First Adapter Near Your
Device (Modem/Router)
Connect one adapter to the
1
LAN port on the Network
Device (Modem/ Router) via
an Ethernet cable.
Coax Outlet
Network Device
(Modem/Router)
Plug the adapter into a power outlet via the power
3
adapter. Note: If the Power LED
then please refer to the FAQs on the back page.
Network
Connect the coaxial cable to the
2
"G.hn" connector of the Coax
Adapter and to a coax wall outlet.
Power Outlet
is not GREEN,
Get To Know Your G.hn Wave 2 Coax Adapters
Left
This connector is to This connector is This connector is to
power the adapter. for non-Cable connect the adapter
traditional TV to the G.hn Coax
services. network.
B) Set Up the Second Adapter Near Your
(Smart TV, Gaming Console, PC, etc.)
Plug this adapter into a power outlet via the power adapter.
5
Note: If the Power LED
Coax Outlet
Power Outlet
Gaming Console
Connect the second
4
coaxial cable to the "G.hn"
connector of the other
Coax Adapter and to a
coax wall outlet.

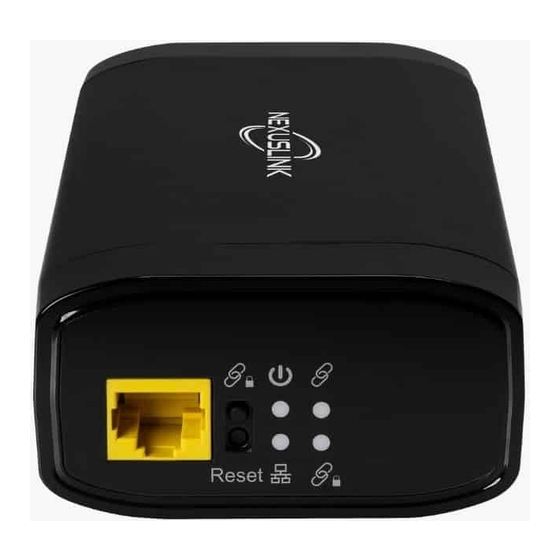

Right
This Ethernet port The Button and LED
connects to the descriptions can be found on
Network Device or the back page.
Internet Device.
Internet Device
is not GREEN, please refer to the FAQs.
7
TV
The Power LED,
Connection LED, and
Ethernet LED should
be GREEN
adapters.
Now connect the adapter
6
into your Internet device
(i.e. Gaming Console, PC,
etc.) via an Ethernet
Reset
cable.
on both
