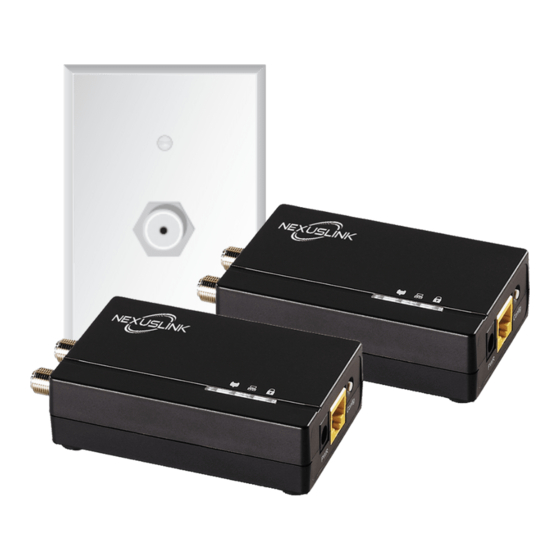

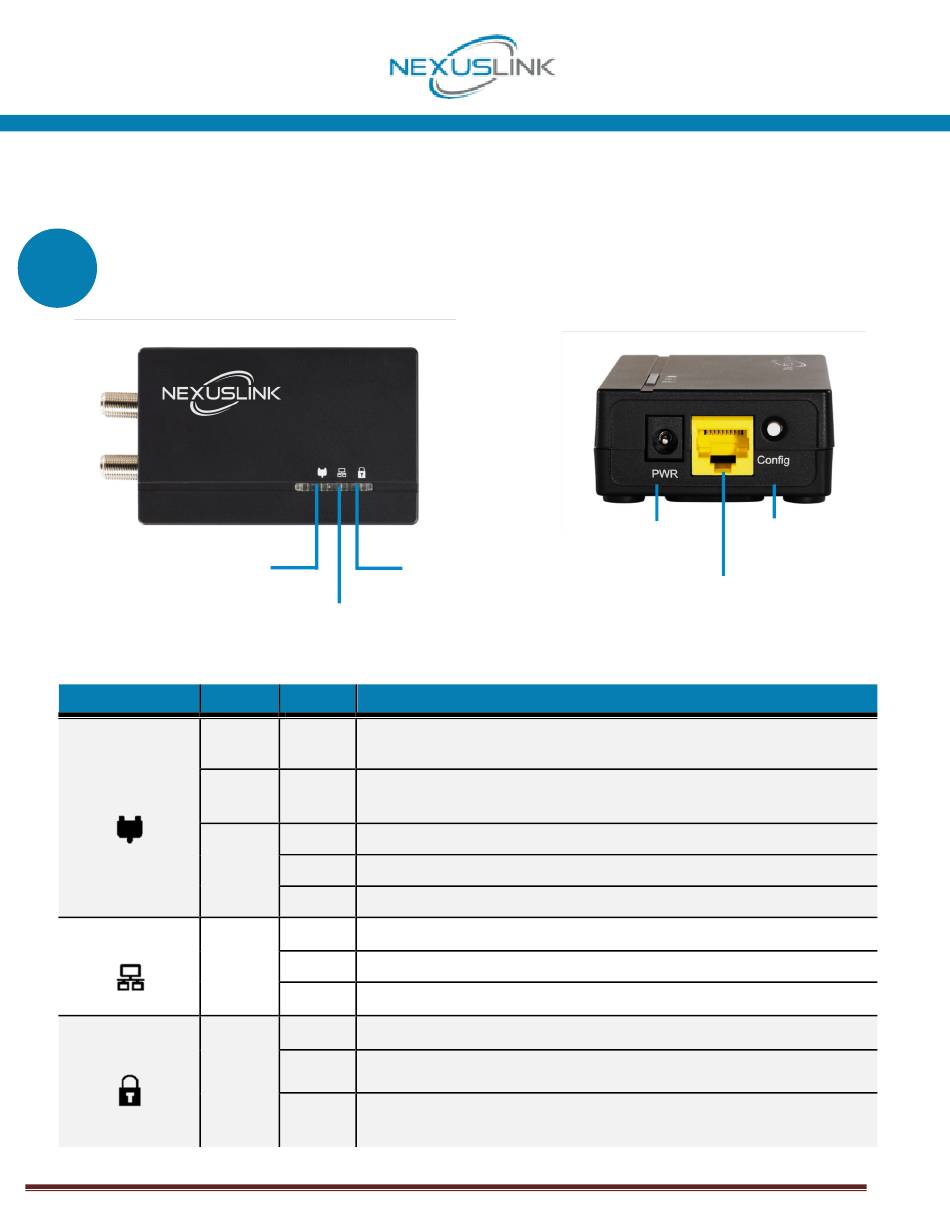

Understanding Your G.hn Coax Adapter
Coverage LED:
Adapters are paired when lit
Directly connected device is active
LED
Connection
Ethernet
Security
Quick Install Guide
GCA-1200 G.hn Ethernet over Coax Adapter
Connection is secure when lit
Ethernet LED:
when blinking
Color
Mode
Description
Green
On
The current connection (line rate) is greater than 20 Mbps.
The current connection (line rate) is greater than 20 Mbps and less
Orange
On
than 40 Mbps.
On
The current connection (line rate) is between 1 and 20 Mbps.
Red
Off
No LINK connection exists.
Blink
The adapter is in power saving mode (blinks twice every 5 seconds).
On
A LAN connection is established.
Off
A LAN connection is not established.
Green
Blink
Data is being transmitted/received.
On
The adapter is in secure mode.
Off
The adpter is not in secure mode.
Green
Slow: The adapter is pairing.
Blink
Fast: The adapter is returning to pairing default settings.
Security LED:
Power Plug
Configuration
Button
Ethernet
Port
Page 1
Advertisement
Table of Contents
Related Manuals for NexusLink GCA-1200
Summary of Contents for NexusLink GCA-1200
- Page 1 Quick Install Guide GCA-1200 G.hn Ethernet over Coax Adapter Understanding Your G.hn Coax Adapter Power Plug Configuration Button Coverage LED: Security LED: Adapters are paired when lit Connection is secure when lit Ethernet Port Ethernet LED: Directly connected device is active...
- Page 2 Initial Device Setup NOTE: A minimum of two G.hn Coax Adapters are required to create a proper connection. Follow Steps 4-8 to add additional G.hn Adapters to your network. 1. Plug the power supply into the Coax Adapter into the power outlet nearest to the network device (Eg.
- Page 3 Note: Pressing the Config button – located on the side of the device for more than 5 seconds resets the security settings (10 seconds or more performs a factory reset). If you accidentally reset the GCA-1200 unit, then return to step 7 to reconfigure it. Adding Additional Adapters/Devices Follow steps 3-7 in Part B to add additional Adapters/devices to the Coax Network (up to 32 devices).
- Page 4 LAN port of the GCA-1200 unit is connected firmly to the LAN port of the other device. To check the condition of the Ethernet cable, use another cable to test the same connection.
