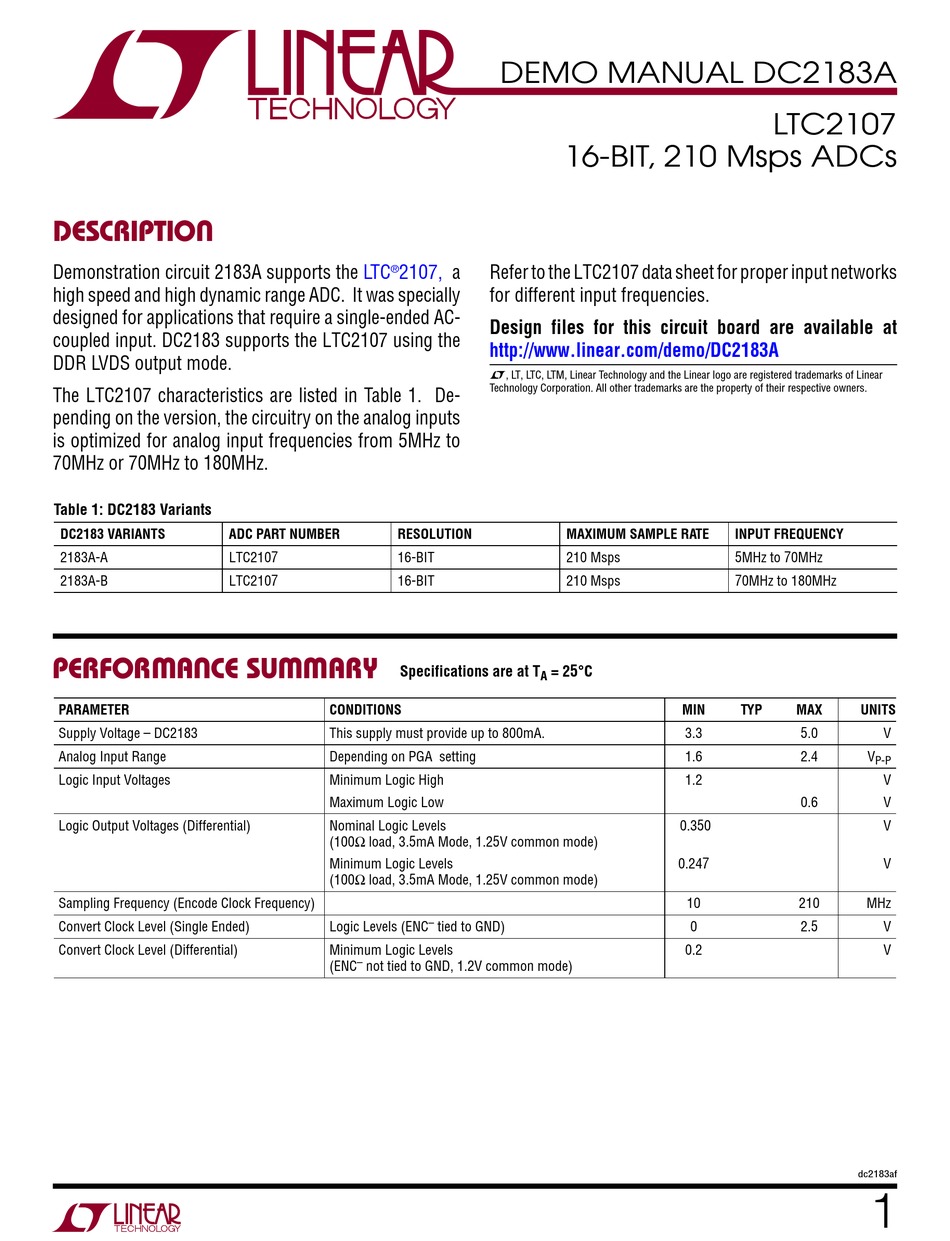

Performance Summary - Linear Technology DC2183A Demo Manual

Description
Demonstration circuit 2183A supports the
high speed and high dynamic range ADC. It was specially
designed for applications that require a single-ended AC-
coupled input. DC2183 supports the LTC2107 using the
DDR LVDS output mode.
The LTC2107 characteristics are listed in Table 1. De-
pending on the version, the circuitry on the analog inputs
is optimized for analog input frequencies from 5MHz to
70MHz or 70MHz to 180MHz.
Table 1: DC2183 Variants
DC2183 VARIANTS ADC PART NUMBER
2183A-A LTC2107
2183A-B LTC2107

performance summary

PARAMETER
Supply Voltage – DC2183
Analog Input Range
Logic Input Voltages
Logic Output Voltages (Differential)
Sampling Frequency (Encode Clock Frequency)
Convert Clock Level (Single Ended)
Convert Clock Level (Differential)
DEMO MANUAL DC2183A
LTC 2107, a Refer to the LTC2107 data sheet for proper input networks
®
for different input frequencies.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2183A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
RESOLUTION
16-BIT
16-BIT
Specifications are at T
CONDITIONS
This supply must provide up to 800mA.
Depending on PGA setting
Minimum Logic High
Maximum Logic Low
Nominal Logic Levels
(100Ω load, 3.5mA Mode, 1.25V common mode)
Minimum Logic Levels
(100Ω load, 3.5mA Mode, 1.25V common mode)
–
Logic Levels (ENC tied to GND)
Minimum Logic Levels
–
(ENC not tied to GND, 1.2V common mode)
16-BIT, 210 Msps ADCs
MAXIMUM SAMPLE RATE
210 Msps
210 Msps
= 25°C
A
MIN
3.3
1.6
1.2
0.350
0.247
10
0
0.2
LTC2107
INPUT FREQUENCY
5MHz to 70MHz
70MHz to 180MHz
TYP MAX UNITS
5.0 V
2.4 V
P-P
V
0.6 V
V
V
210 MHz
2.5 V
V
dc2183af
