4. Remote Control

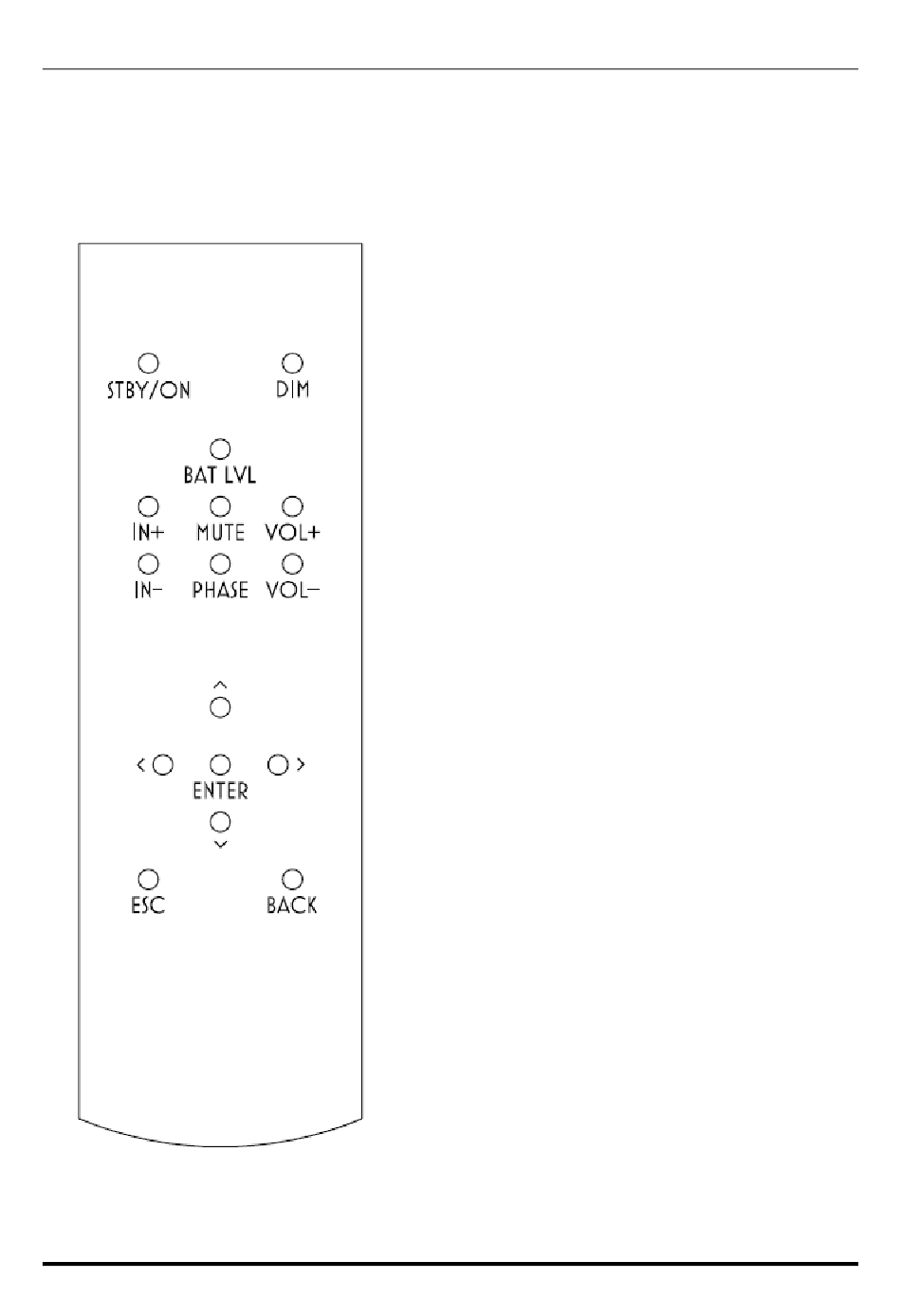

Figure 3
9
Stby/On. Activates the unit when it's in
standby and puts it in standby when it's on.
Dim. .Allows for choosing 6 different intensity
levels for the display, plus an "auto" mode in
which the display is always off, except for a
few seconds after a command is sent to the
unit.
Bat Lvl. Displays the battery status on the
display.
In+ and In-. Allow for sequentially choose the
input.
Mute. Toggles mute on and off. Mute is 20dB
attenuation over the set volume level.
Phase. Toggles output signal phase between
0° and 180°. Useful to restore absolute
phase of certain recordings made with
inverted phase
Vol+ and Vol-. Allow for setting the volume,
except when the volume control is disabled.
Arrows and Enter. Allow for navigating the
menu.
Esc. Exits the menu without changing the
displayed option.
Back. Recalls the active value of the
displayed option.
Note: the remote control is powered by two
AAA type batteries. To replace them,
unscrew the screw that holds the bottom
cover and open it by sliding it to the back.
Please pay attention: when the bottom cover
is extracted, the front grill may fall down.
