VI-506/IC-414
Applied Machines: C554/C454/C364/C284
COLOR MFP: 55 ppm/45 ppm/36 ppm/28 ppm
Product Code: A2XK/A4FJ/A161/A4FK

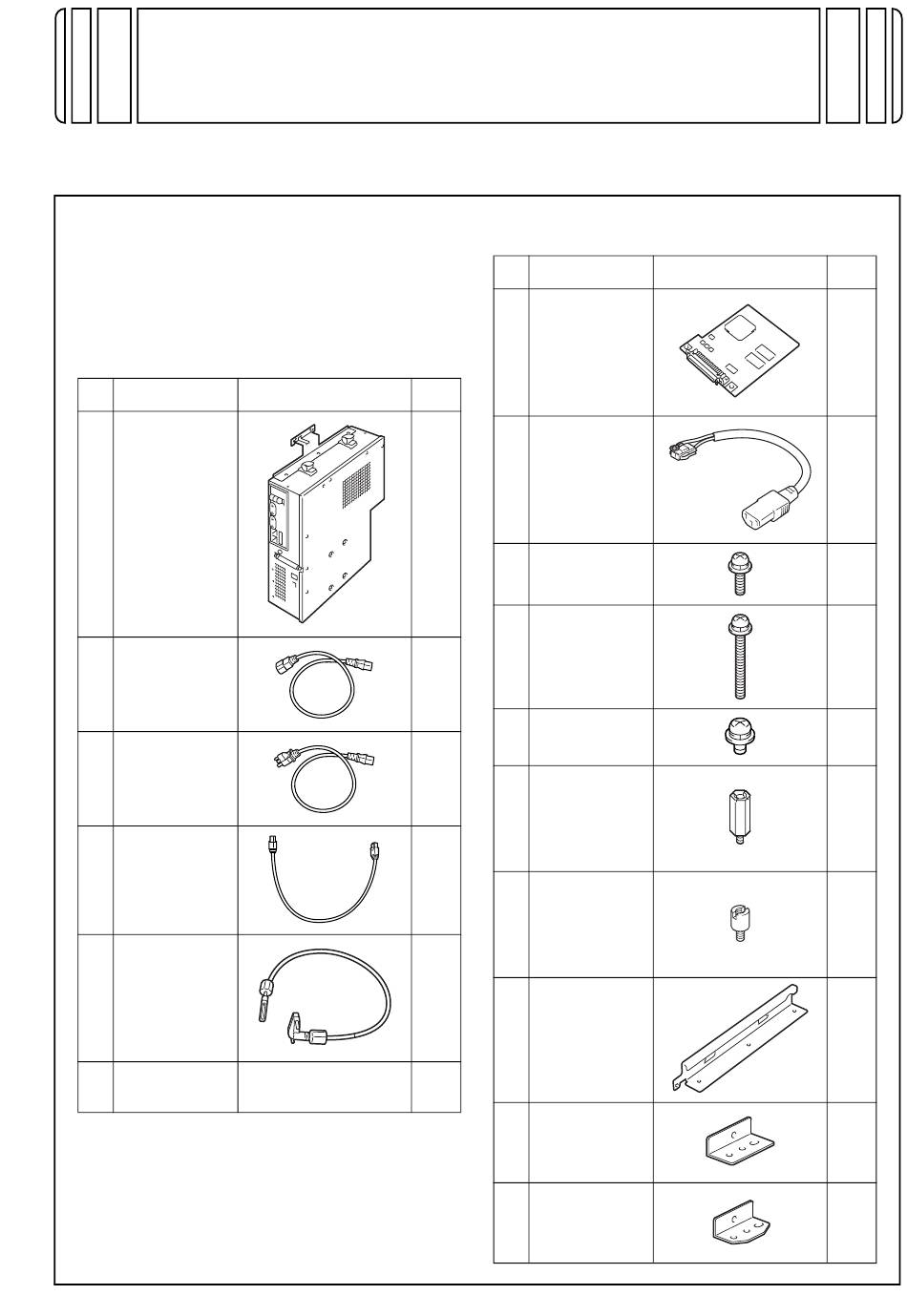

I. Accessory parts
Before starting to set up, check that the following are
included.
Only the parts required to install the image controller
appear in the package contents list.
Package contents of the image controller Fiery
IC-414
No.
Name
1. Image
controller
2. Power cord A
3. Power cord B
*1
(for the wall
outlet)
4. Copier
LAN cable
(crossover
cable)
5. Image
transmission
cable
6. Other
*2
accessories
*1 This power cord cannot be used in Taiwan that
utilizes 110V power.
*2 The accessories are not used when installing
the image controller.
INSTALLATION MANUAL
Shape
Q'ty
1
A4MGIXC001DB
1
A00HIXC019HA
1
A00HIXE034HA
1
A00HIXC018HA
1
A4MGIXC002DB
-
-
Video Interface Kit/Image Controller
Package contents of the video interface kit
VI-506
No.
Name
1. Relay circuit
board
2. Power cord
(for connection
between copier
and IC) *
3. Screw A
(3 × 16 mm)
4. Screw B
(3 × 40 mm)
5. Screw C *
(4 × 8 mm)
6. Shoulder
screws for
mounting the
relay circuit
board
7. Shoulder
screws
for the relay
circuit board
connector
8. Mounting
bracket (top)
9. Mounting
bracket (side)
10. Mounting
bracket
(bottom)
E-1
Shape
Q'ty
1
A4MGIXC003DA
1
A0YEIXC002DA
3
A2Y1IXC044DA
1
A4MGIXC062DA
1
4038IXC033DA
2
A0YEIXC005DB
2
A0YEIXC047DA
1
A4MGIXC004DA
1
A4MGIXC005DA
1
A4MGIXC006DA
A4MG-9550-00
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Konica Minolta VI-506
Summary of Contents for Konica Minolta VI-506
- Page 1 VI-506/IC-414 Video Interface Kit/Image Controller INSTALLATION MANUAL Applied Machines: C554/C454/C364/C284 COLOR MFP: 55 ppm/45 ppm/36 ppm/28 ppm Product Code: A2XK/A4FJ/A161/A4FK I. Accessory parts Package contents of the video interface kit VI-506 Before starting to set up, check that the following are...
-
Page 2: Part Names
II. Part names Name Shape Q’ty 11. Installation manual Ethernet 10Base-T/100Base-TX/1000Base-T network port (Port 1) 1 set 4980IXC019DA This part is not used in this installation. After unpacking, be sure to get rid of the Power packaging materials and keep them out of cord the reach of children. -
Page 3: Installation Procedures
<Port descriptions> 4. Remove the cover shown in the illustration form the copier. (One screw) Port 1 Port 2 A00HIXC033HB Port 1 (For the LAN) Connect the network cable to the LAN. Port 2 (For the COPIER)* Use a crossover cable to connect to the LAN port of A4MGIXC010DA the copier. - Page 4 7. Attach the relay circuit board to the plate. 10. Attach the relay circuit board assy to the copier (Two supplied shoulder screws for the relay cir- at the position shown in the illustration. cuit board connector) Note: Insert the connector on the back of the relay circuit board to the connector of the board of the copier.
- Page 5 15. Remove the two mounting brackets from the a: Connecting the copier and image controller image controller. (Five screws) with separate LAN cables 18. Remove the rear right cover from the paper feed cabinet or desk. (Two screws) A161IXC056DA A4MGIXC059DA 16.
- Page 6 21. Route the network cable through the harness 24. Screw the image controller to the cover. (Three guides and three wire saddles. supplied screws A and one supplied screw B) Note: Note: Leave an appropriate amount of slack in the por- Screw the screws at the bottom and side first.
- Page 7 27. Use a network cable to connect port 1 of the 19. Route the supplied copier LAN cable (crossover image controller to the hub (LAN). cable) through the notch made in step 18. Port 1 Port 2 A4MGIXC030DA 20. Connect the cable to the LAN port of the copier. A4MGIXC028DA 28.
- Page 8 22. Screw the image controller to the cover. (Three 25. Route the image transmission cable and the supplied screws A and one supplied screw B) copier LAN cable through the cable clamps of the image controller. (Image transmission cable: Note: two places, Copier LAN cable: one place) Screw the screws at the bottom and side first.
- Page 9 V. Connecting the copier and image con- 27. <110-127 V regions> Plug the copier and image controller power troller to a network cords into an outlet. <220-240 V regions> The network functions of the copier can be used Connect the image controller power cord to the even when the image controller is installed.
- Page 10 b: Connecting the copier and image controller <Copier Network Settings> Since the IP address of the copier can be set from with the supplied copier LAN cable (cross- the image controller, it is not necessary to specify over cable), and connecting the image con- the IP address from the copier.
- Page 11 VI. Specifying basic image controller 10. Select “OK”. 11. Touch “Exit IPV4 Setup” → “Exit Protocol Setup” settings (IP address) → “Exit Network Setup”, select “Yes” when “Save Changes” appears, and then select “OK”. Specify the default settings for the image controller. 12.
- Page 12 Timing for turning on the copier with con- nection method b from “V. Connecting the copier and image controller to a network” Turning on Turn on the devices in the following order. 1. Turn on the softswitch on the image controller. 2.
