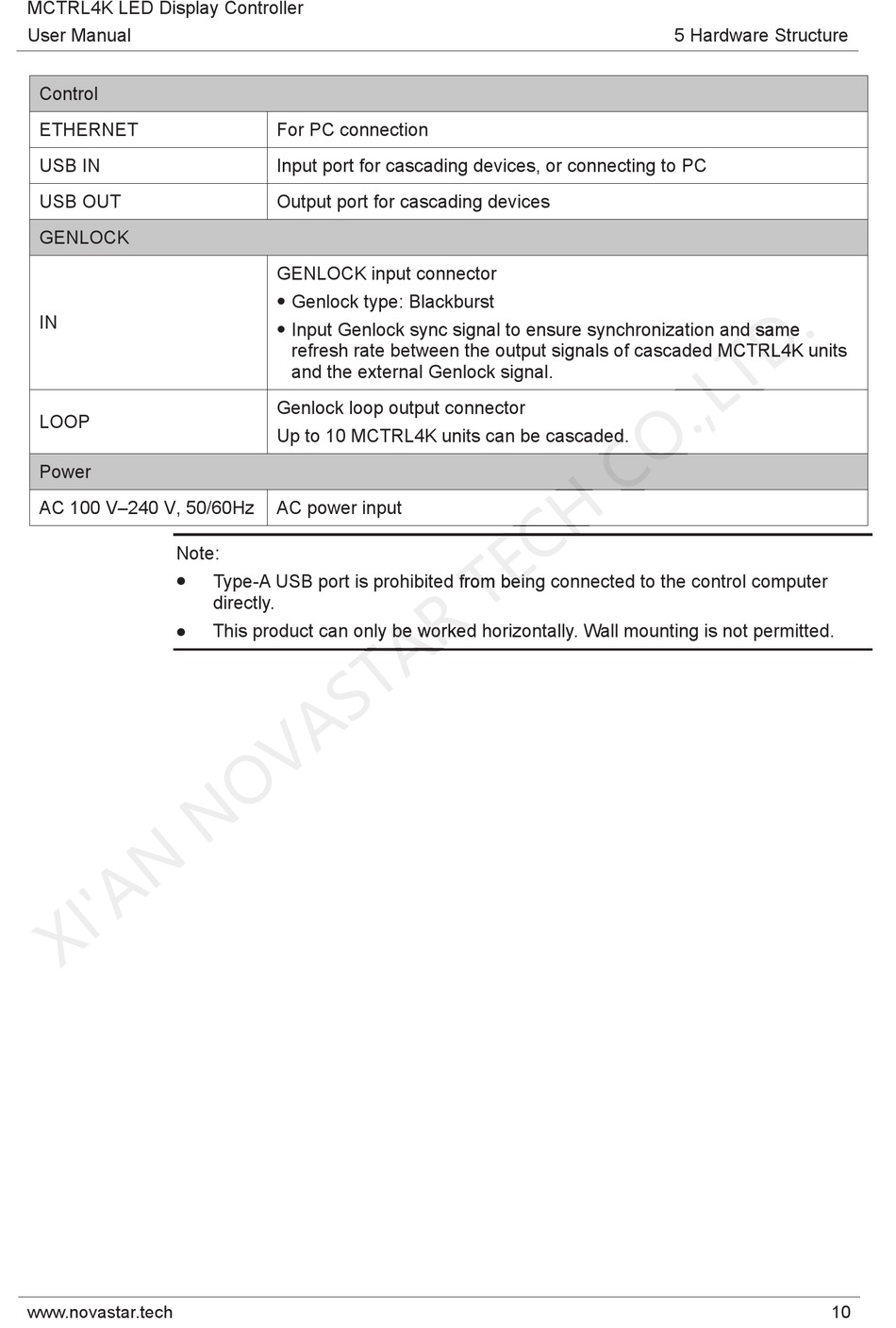

NovaStar MCTRL4K User Manual page 15

MCTRL4K LED Display Controller
User Manual
Control
ETHERNET
USB IN
USB OUT
GENLOCK
IN
LOOP
Power
AC 100 V–240 V, 50/60Hz
Note:


www.novastar.tech
For PC connection
Input port for cascading devices, or connecting to PC
Output port for cascading devices
GENLOCK input connector
Genlock type: Blackburst

Input Genlock sync signal to ensure synchronization and same Input Genlock sync signal to ensure synchronization and same Input Genlock sync signal to ensure synchronization and same

refresh rate between the output signals of cascaded MCTRL4K units refresh rate between the output signals of cascaded MCTRL4K units refresh rate between the output signals of cascaded MCTRL4K units
and the external Genlock signal.
Genlock loop output connector
Up to 10 MCTRL4K units can be cascaded. Up to 10 MCTRL4K units can be cascaded. Up to 10 MCTRL4K units can be cascaded.
AC power input
Type-A USB port is prohibited from being connected to the control computer Type-A USB port is prohibited from being connected to the control computer Type-A USB port is prohibited from being connected to the control computer Type-A USB port is prohibited from being connected to the control computer Type-A USB port is prohibited from being connected to the control computer
directly.
This product can only be worked horizontally. Wall mounting is not permitted. This product can only be worked horizontally. Wall mounting is not permitted. This product can only be worked horizontally. Wall mounting is not permitted.
5 Hardware Structure
10
