S3
Left Handle
Right Handle
IMPORTANT
!
mounted handles have been replaced with handles
adapted for ICS Direct.
Carefully check the changed functions, for both the base
machine/excavator and alternative control.
© Rototilt Group AB
- The base machine/excavator's factory

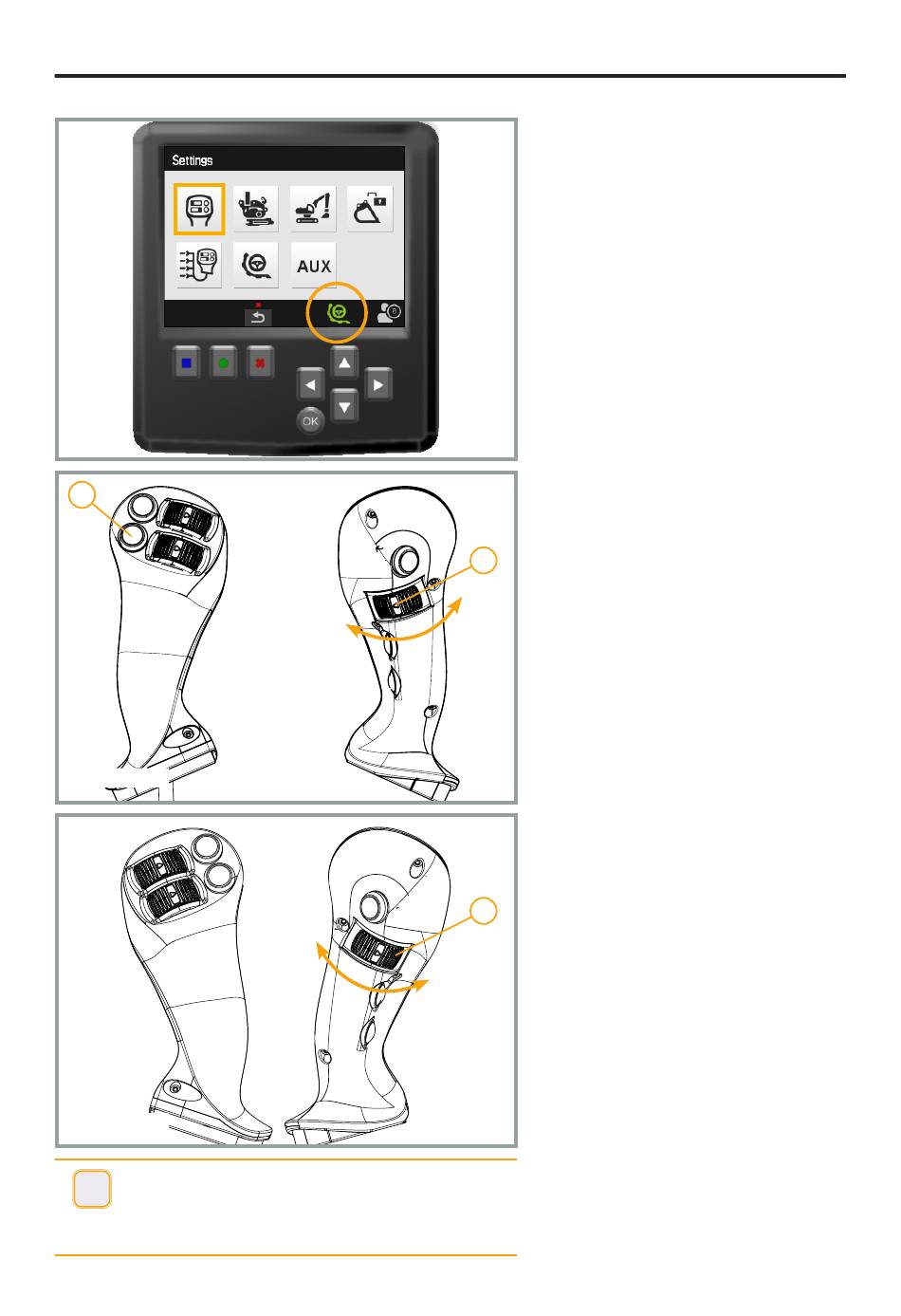

Display
The symbol on the display comes on
when alternative operation is activated.
Handles
The handles are equipped with switches
and rollers to control the functions on
the base machine/excavator and for
R3
alternative control.
The rollers in the handles must have
proportional control.
The handle functions are configured by
an authorised installer.
One of several possible examples of
connection to the alternative control is
described below.
Left Handle
S3 Activate alternative control
R3 Steering
Right = Turn right
Left = Turn left
R3
Right Handle
R3 Drive
Right = Drive forwards
Left = Drive backwards
Information about functions
Information concerning the handles'
current configuration is available in three
places: On the decal, on the display and
in the instructions for the base machine/
excavator.
2200399_ EN _7733 2019-08-19 English
