ROTOTILT ICS Direct Translation Of The Original Instruction page 2

Overview
The product described in the document consists of components for the ICS Direct track control system.
The overviews show standard equipment and options.
Refer to the illustrations and lists below and on the following pages.
ICS Direct is design to facilitate the movement of the base machine/excavator when working. ICS Direct
track control is manoeuvred using switches and or rollers in the handles. In most cases this permits the
operator to work in a more ergonomic position.
1
3
4
IMPORTANT
!
control system, tiltrotator and base machine/excavator use
before starting work. Pay particular attention to the safety
instructions.
IMPORTANT
!
malfunctioning, always use the base machine/excavator's
controls.
© Rototilt Group AB
2
5
- Read through the instructions for the
- If you suspect alternative control if
Control system of the
ICS Direct type

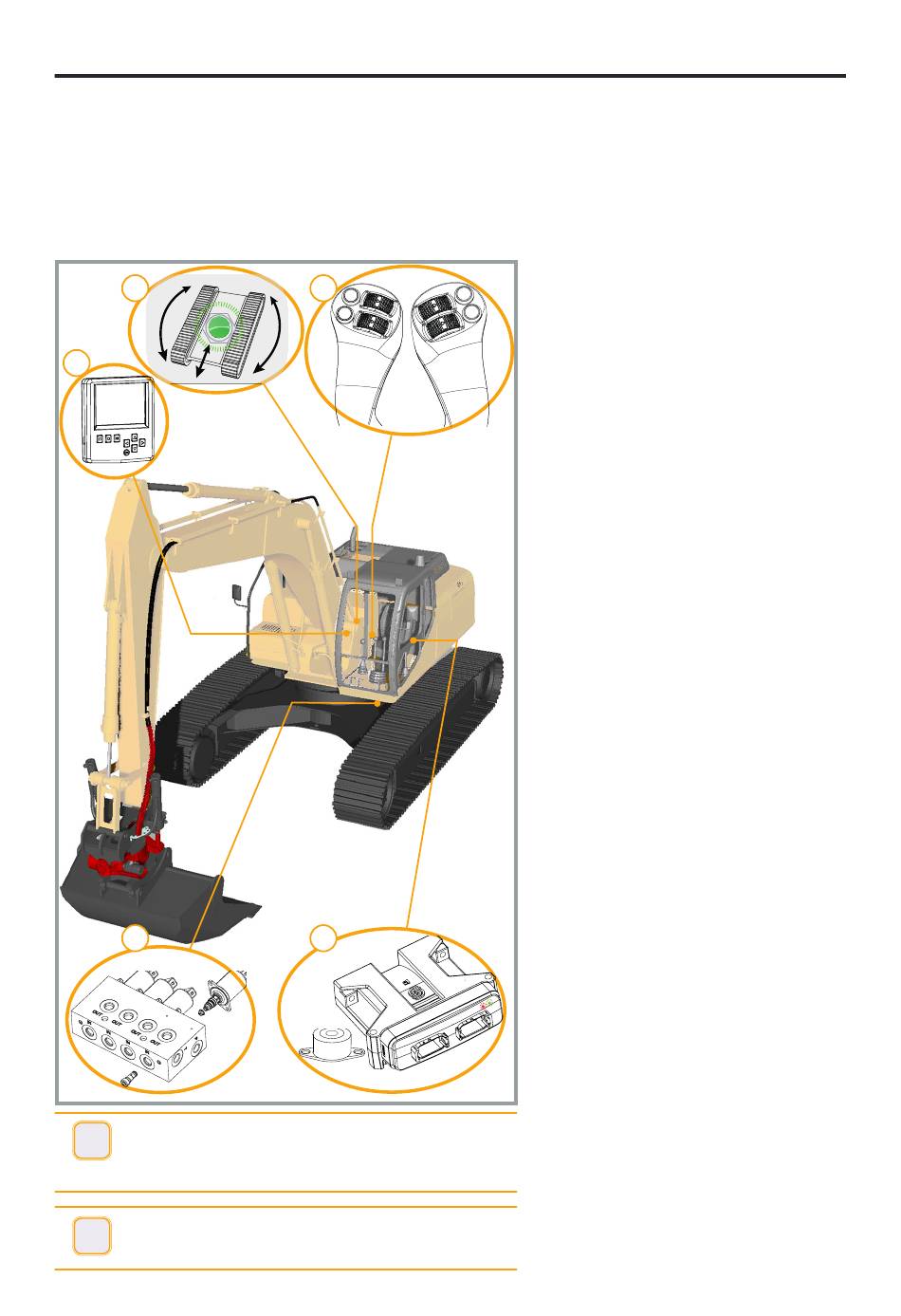

A base machine/excavator equipped with
ICS Direct track control has the following
components installed:
1. Indicator lamp
Decal - track control
2. Handles with controls to operate the
base machine/excavator, ordered
separately
3. Display - included in the control
system ICS, ordered separately
4. Valve block - Track control
5. Control unit
Buzzer
2200399_ EN _7733 2019-08-19 English
