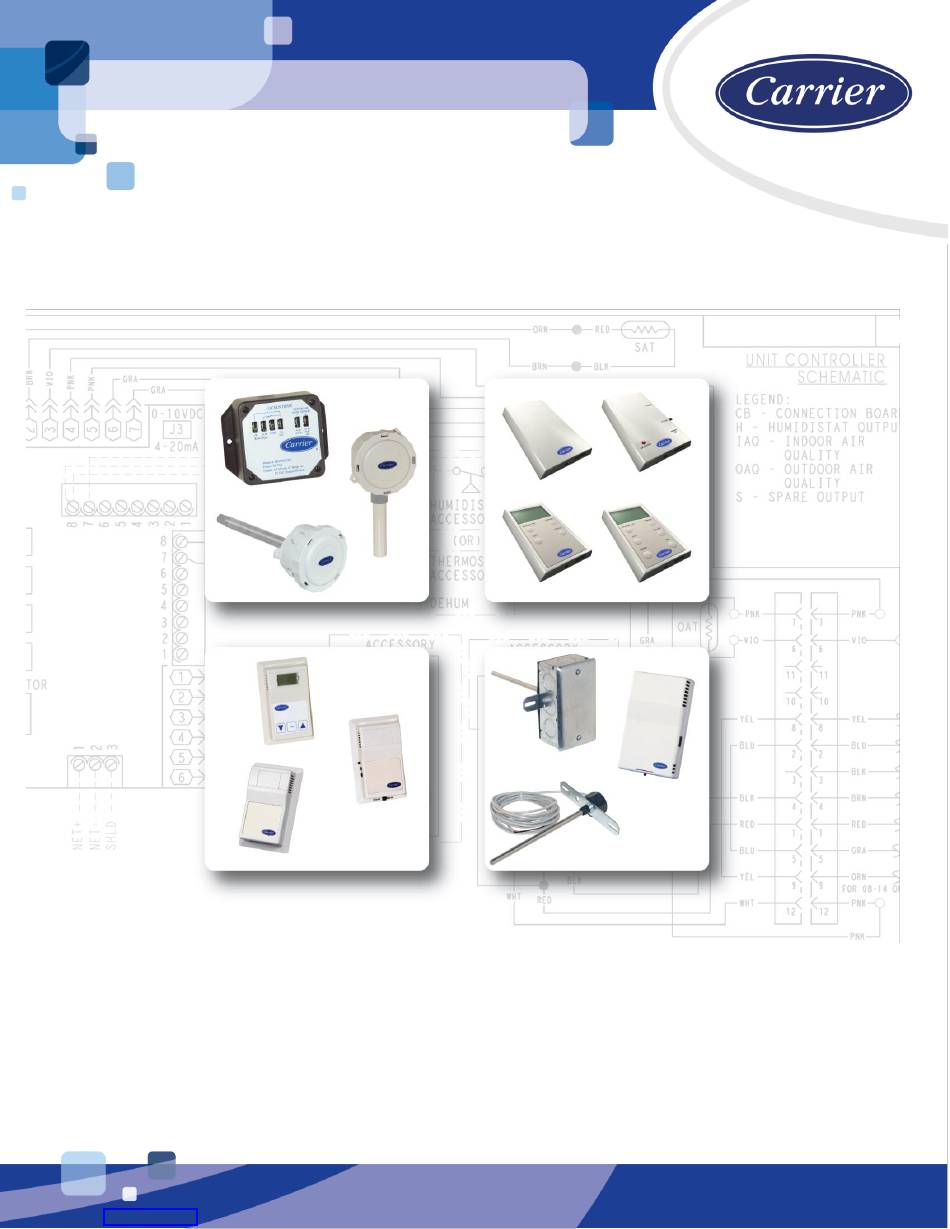

  • Page 1 CARRIER CORPORATION ©2021 · Catalog No. 11-808-423-01 · 9/21/2021 Downloaded from ManualsNet.com search engine...
  • Page 2 Verify that you have the most current version of this document from www.hvacpartners.com, the Carrier Partner Community website, or your local Carrier office. Important changes are listed in Document revision history at the end of this document. CARRIER CORPORATION ©2021. All rights reserved throughout the world. i-Vu is a registered trademark of Carrier Corporation.

  • Page 3: Table Of Contents

    Contents Introduction to Carrier sensors ..........................1 ZS Sensors ................................3 Specifications ................................ 5 CO2 sensor installation ............................6 Rnet Configuration ............................... 6 Rnet wiring specifications ........................... 6 To address a ZS Sensor ............................7 Power requirements ............................. 8 To wire and mount a ZS Sensor.......................... 9 To communicate through the local access port ....................
  • Page 4 Contents Wiring specifications ............................43 Mounting location .............................. 44 To wire and wall-mount the CO2 sensor ......................45 To wire and duct-mount the sensor ........................ 46 CO2/Temperature sensor ..........................47 CO2/Temperature sensor specifications ....................... 48 Wiring specifications ............................48 Mounting location .............................. 49 To wire and mount the CO2/Temperature sensor..................

  • Page 5: Introduction To Carrier Sensors

    Introduction to Carrier sensors The following Carrier sensors can be used with the specified Open controllers. For information on Carrier PIC controllers, please see the controller's Installation Guide. Controller Sensor Part number Space temperature sensor (page 14) • • •...
  • Page 6 Introduction to Carrier sensors WARNING Disconnect electrical power to the controller or sensor before wiring it. Failure to follow this warning could cause electrical shock, personal injury, or damage to the device. CAUTION Do not run sensor or relay wires in the same conduit or raceway with Class 1 AC or DC service wiring.

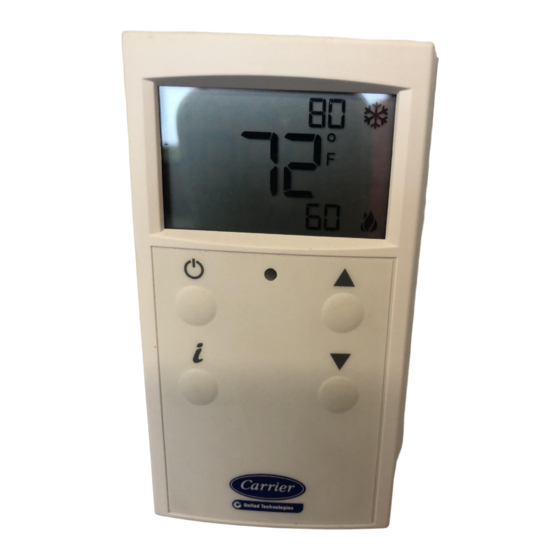

  • Page 7: Zs Sensors

    The following table shows the 4 ZS Sensor models and their features. Part # with Part # wihout Sensor Features Carrier logo logo • Local access port ZS-CAR ZS-BNK ZS Standard • No user control ZS-C-CAR ZS-C-BNK ZS-H-CAR ZS-H-BNK ZS-V-CAR ZS-V-BNK ZS-HC-CAR ZS-HC-BNK...
  • Page 8 To configure the control program for the desired user interaction with the sensor, see the ZS Sensor Application Guide. For basic user instructions, see the ZS Sensor User Guide. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 9: Specifications

    See CO sensor installation (page 6). 0 to 2,000 CO2 PPM Equivalent: ±100PPM Power requirements Temperature only ZS Standard or ZS Plus: 12 Vdc @ 6 mA ZS Pro or Pro-F: 12 Vdc @ 7 mA Temperature with humidity ZS Standard or ZS Plus:...

  • Page 10: Co2 Sensor Installation

    If shielded, Aluminum/Mylar shield (100% coverage) with TC drain wire UL temperature rating 32–167°F (0–75°C) Voltage 300 Vac, power limited Listing UL: NEC CL2P, or better Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 11: To Address A Zs Sensor

    Switch value EXAMPLE DIP switches 1 and 4 above are on. Their values (1 + 8) total 9, so the sensor's address is 9. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 12: Power Requirements

    See Specifications (page 5) for power requirements and power supply information. CAUTION Do not share power between controller's power and external 12 Vdc unless both devices are half wave. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 13: To Wire And Mount A Zs Sensor

    If wiring 2 cables in a daisy-chain configuration, twist together the shield wires, then wrap the shield wires with tape. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...
  • Page 14 ZS Sensors Insert the other 4 wires into the ZS Sensor's screw terminal connector. If wiring 2 cables, insert like-colored wires into each terminal. Carrier recommends that you use the following Rnet wiring scheme: Connect this To this wire... terminal...

  • Page 15: To Communicate Through The Local Access Port

    1 2 ft USB Link NOTE If using a USB isolator, plug the isolator into your computer's USB port, and then plug the USB Link cable into the isolator. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 16: Troubleshooting

    Software/addressing setup • Wiring connections • Controller operating status Characters that The sensor may have a memory problem. Try formatting the sensor. seem out of place Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...
  • Page 17 Set the DIP switches back to their original position. Reattach the wiring connector. NOTE If you move a sensor from one controller to another controller that has a different control program, format the sensor. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 18: Spt Sensors

    SPT Sensors Part #SPS, SPPL, SPP, SPPF An SPT sensor is a thermistor-based, wall-mounted temperature sensor that monitors zone temperature. An SPT sensor is wired to a controller's Rnet port. Carrier offers the following SPT sensors: Sensor Features • Local access port SPT Standard •...
  • Page 19 INFO button to cycle through zone and outside air temperatures, setpoints, and local override time • FAN SPEED button to adjust fan speed • Local access port Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 20: Spt Sensor Specifications

    SPT Standard sensors if you have more than one on the Rnet. See To address an SPT Standard sensor (page 17). • BACview® 's if you have two on the Rnet. See the BACview® Installation and User Guide. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 21: To Address An Spt Standard Sensor

    NOTE The sensor mounting plate accommodates the NEMA standard 2x4 in. standard single gang electrical box. However, the sensor can be mounted directly on the wall surface if local codes permit.= Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 22: To Wire And Mount The Spt Sensor

    Partially cut, then bend and pull off the outer jacket of the Rnet cable(s). Do not nick the inner insulation. Strip about .25 inch (.6 cm) of the inner insulation from each wire. Outer Jac ket .25 in. Inner insulation (.6 cm) Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...
  • Page 23 SPT Sensors Insert the other 4 wires into the sensor's screw terminal connector. If wiring 2 cables, insert like-colored wires into each terminal. Carrier recommends that you use the following Rnet wiring scheme: Connect this To this terminal... wire... +12V...

  • Page 24: Using An Spt Sensor

    199 minutes, the display shows the time in hours. To cancel the override, hold the button down until 0 displays. Wait five seconds for the display to show the current zone temperature again. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 25: To Change Sensor Properties

    Space Temp, SPT Temp Sensor, Zone Temp Sensor > Details tab of microblock popup. Field Assistant runs on a laptop that you connect to an SPT sensor's Local Access port. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 26: To Communicate Through The Local Access Port

    1 2 ft USB Link NOTE If using a USB isolator, plug the isolator into your computer's USB port, and then plug the USB Link cable into the isolator. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 27: Troubleshooting Spt Sensors

    Has power, but is not communicating Only the temperature and current status Is correctly wired and communicating NOTE If OF is displayed, cycle the power on the controller. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 28: Alternate Space Temperature Sensor

    T-59 • Setpoint adjustment Part #33ZCT59SPT • LCD display NOTE The T-59 sensor requires a dedicated 24 Vac, 3 Va transformer to power the sensor. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 29: Sensor Specifications

    Resistance (Ohms) 335,651 242,195 176,683 130,243 96,974 72,895 55,298 42,315 32,651 25,395 19.903 15,714 12,494 10,000 8,056 6,530 5,325 4,367 3,601 2,985 2,487 2,082 1,752 Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 30: Wiring Specifications

    NOTE The sensor mounting plate accommodates the NEMA standard 2x4 in. standard single gang electrical box. However, the sensor can be mounted directly on the wall surface if local codes permit. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 31: To Wire And Mount The Sensor

    NOTE Clean sensor with damp cloth only. Do not use solvents. Sens or wiring SENSET White Blk (G nd) Sens or Sens or wiring wiring Jumper terminals Blk (Gnd) T-55 sensor T-56 sensor T-59 sensor Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 32: To Change A T59 Sensor's Options

    NOTE If you do not press a key for 10 seconds, the sensor automatically returns to option page. To return sensor to From an option page, press until the display shows 1- -. Then press normal operation Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...
  • Page 33 00 = Disable Lockout 01 = Enable Lockout Keep at 00 Keep at 00 Display Mode 00 = Normal 01 = Setpoint Only Keep at 00 Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...
  • Page 34 65 = Default (Range is 10 to 89) Unoccupied heat setpoint 55 = Default (Range is 00 to 99) Unoccupied cool setpoint 90 = Default (Range is 00 to 99) Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 35: Supply Air Temperature Sensor

    - rated cable NOTE If state or local code requires the use of conduit, use a Primary Air Temperature (page 39) (Part #33ZCSENPAT) sensor instead of an SAT sensor. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 36: Sat Sensor Specifications

    Cable from sensor to controller: If <100 ft (30.5 meters) 22 AWG, unshielded If >100 ft (30.5 meters) 22 AWG, shielded Maximum length: 500 feet (152 meters) Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 37: Mounting Location

    6 inches (15.2 cm) or less in diameter. Wire the sensor to the Open controller. See the controller's Installation and Startup Guide for details. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 38: Duct Air Temperature Sensor

    Duct Air Temperature sensor Part #33ZCSENDAT The Duct Air Temperature (DAT) sensor monitors supply air and is required for cooling and heating air source applications on non-Carrier dampers and for stand-alone operation. DAT sensor specifications Operating range -40° to 245°F (-40° to 118°C) with a nominal resistance of 10,000 ohms at 77°F (25°C).

  • Page 39: Wiring Specifications

    Pull on the sensor's wiring until the sensor is snug against the grommet. Wire the sensor to the Open controller. See the controller's Installation and Startup Guide for details. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 40: Outdoor Air Temperature Sensor

    2 .8 1 in. (7 .1 4 c m) 4 .5 6 in. (1 1 .5 8 c m) 4 .9 2 in. (1 2 .5 c m) Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 41: Oat Sensor Specifications

    Cable from sensor to controller: If <100 ft (30.5 meters) 22 AWG, unshielded If >100 ft (30.5 meters) 22 AWG, shielded Maximum length: 500 feet (152 meters) Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 42: Mounting Location

    Attach the sensor box to the conduit adapter using the adapter locking nut. Replace sensor gasket and cover using the 2 screws provided. Wire the sensor to the Open controller. See the controller's Installation and Startup Guide for details. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 43: Primary Air Temperature Sensor

    If conduit is not required, you can use an SAT sensor. 6 in. (15.2 cm) probe 4 x 2 in. (10.2 x 5.1 cm) electrical b ox Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 44: Pat Sensor Specifications

    Cable from sensor to controller: If <100 ft (30.5 meters) 22 AWG, unshielded If >100 ft (30.5 meters) 22 AWG, shielded Maximum length: 500 feet (152 meters) Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 45: Mounting Location

    CAUTION The tip of the sensor's 6-inch (15.2-cm) probe must not touch the inside of the duct. Wire the sensor to the Open controller. See the controller's Installation and Startup Guide for details. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 46: Co2 Sensor

    CO input terminals. • Do not use a relative humidity sensor and CO sensor on the same zone controller. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 47: Co2 Sensor Specifications

    Cable from sensor to controller: If <100 ft (30.5 meters) 22 AWG, unshielded If >100 ft (30.5 meters) 22 AWG, shielded Maximum length: 500 feet (152 meters) Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 48: Mounting Location

    • In the center of the duct • Where at least 1 foot (.3 m) of space in front of the sensor is free of obstruction Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 49: To Wire And Wall-Mount The Co2 Sensor

    Turn the two Allen screws at the bottom of the unit counterclockwise to secure the cover to the mounting plate. Wire the sensor to the Open controller. See the controller's Installation and Startup Guide for details. To controller Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 50: To Wire And Duct-Mount The Sensor

    2 field-supplied #8 x 32 machine screws. To wire the CO sensor, see the instructions above in To wire and wall-mount the CO sensor (page 45). Install the aspirator box cover. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 51: Co2/Temperature Sensor

    The sensor has a 4–20 mA or 0–10 V output. • Push button override • Do not use a relative humidity sensor and CO sensor on the same zone controller. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 52: Co2/Temperature Sensor Specifications

    Cable from sensor to controller: If <100 ft (30.5 meters) 22 AWG, unshielded If >100 ft (30.5 meters) 22 AWG, shielded Maximum length: 500 feet (152 meters) Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 53: Mounting Location

    10 Turn the two Allen screws counterclockwise to secure the cover to the mounting plate. 11 Wire the sensor to the Open controller. See the controller's Installation and Startup Guide for details. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...
  • Page 54 CO2/Temperature sensor Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 55: Relative Humidity Sensors

    Relative Humidity sensors Relative Humidity sensors Carrier offers 4 Relative Humidity sensors: Sensor Usage Space Relative Humidity Controls zone humidity sensor (dehumidification) if the rooftop Part #33ZCSENSRH-02 unit has a dehumidification device. If not, the sensor only monitors humidity. Can output 0–5 or 0-10 Vdc or 4–20 mA.

  • Page 56: Sensor Specifications

    4-20 mA, 0-5 Vdc, and 0–10 Vdc and #33ZCSENORH-02: Physical Includes a 499 Ohm 1 Watt resistor for conversions of the 4–20 mA signal to a +2–10 Vdc output signal Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 57: Wiring Specifications

    At least 4 feet (1.2 meters) from any corner. Reduced airflow in corners results in erratic sensor readings. • Vertically so that the Carrier logo is correctly oriented Do not mount the sensor: • In drafty areas such as near heating or air-conditioning ducts, open windows, or fans •...

  • Page 58: To Wire And Mount The Space Rh Sensors

    Strip the outer jacket from the cable for at least 4 inches (10.2 cm). Strip .25 inch (.6 cm) of insulation from each wire. Wire the unit for power. See Typical power wiring diagrams for Space RH sensors (page 56). Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...
  • Page 59 • If using shielded cable, connect only one end of the shield to ground at the controller. Connecting both ends to ground may cause a ground loop. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 60: Typical Power Wiring Diagrams For Space Rh Sensors

    Failure to do so could cause a ground loop that could damage the devices. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 61: To Wire And Mount The Duct Rh Sensor

    2 locations with a screwdriver, then remove the ring. Install your conduit connectors or watertight fittings. Wire the unit for power. See Typical power wiring diagrams for Duct RH and Outdoor RH sensors (page 60). Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...
  • Page 62 Place the sensor's cover onto the probe unit and gently turn until it is tight. 10 Verify that you are getting a humidity reading. NOTE Allow up to 20 minutes after powering up for the sensor reading to stabilize. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 63: To Wire And Mount The Outdoor Rh Sensor

    Place the cover onto the unit and gently turn until it is tight. Verify that you are getting a humidity reading. NOTE Allow up to 20 minutes after powering up for the sensor reading to stabilize. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 64: Typical Power Wiring Diagrams For Duct Rh And Outdoor Rh Sensors

    Failure to do so could cause a ground loop that could damage the devices. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 65: Calibrating And Troubleshooting Relative Humidity Sensors

    (For troubleshooting only.) 50% RH Transmitter outputs a 12 mA, 2.5 Vdc, or 5 Vdc signal regardless of Output sensor reading. (For troubleshooting only.) Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...
  • Page 66 0 Vdc = 0% RH 10 Vdc = 100% RH 0-5 Vdc 2 Vdc 2 Vdc/0.05 = 40% RH 0 Vdc = 0% RH 5 Vdc = 100% RH Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 67: Enthalpy Switch/Receiver And Enthalpy Sensor

    Output: 10 A Form 1C Relay w/ Output: 4 to 20 mA 24 VAC Sourced Power 3.75 in. 3.75 in. (9.5 cm ) (9.5 cm) Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 68: Enthalpy Switch/Sensor Specifications

    Do not mount the enthalpy switch/receivers and sensors where they could be exposed to outdoor elements such as rain or snow. These units are not NEMA 4 enclosures. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 69: To Wire And Mount The Switch/Sensor

    Connect the GND and 24 Vac terminals on the enthalpy switch/receiver to the controller's power terminals. Connect the HI or LOW terminals on the enthalpy switch/receiver to the controller's J2-6 input. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...
  • Page 70 Connect the GND and 24 Vac terminals on the enthalpy switch/receiver to the controller's power terminals. Connect the HI or LOW terminals on the enthalpy switch/receiver to the controller's J2-6 input. Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com...

  • Page 71: Appendix: I-Vu® Control System Wiring Specifications And Recommended Vendors

    CM, 22AWG, plenum rated. < 100 ft Analog & discrete Single twisted shielded pair, CM, W221P-2044 6500FE 21280 CLP0520 sensor wiring 22AWG, plenum rated. 100–500 ft Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...

  • Page 72: Document Revision History

    PAT sensor specifications 3/10/16 Specifications Added drift statement to Humidity specification. X-TS-EE-F 5/28/15 Introduction to Carrier sensors Carrier® ChillerVu™ added and WSHP Open removed from table C-TS-RD-E ZS sensors - CO2 sensor installation New section C-TS-RD-E 11/24/14 Power requirements Made corrections to wiring diagram...

  • Page 73: Index

    Enthalpy sensor • 61 Enthalpy switch/receiver • 61 Humidity sensor • 3 Outdoor Air Temperature sensor • 35 outdoor sensors Outdoor Air Temperature sensor • 35 Carrier Sensors CARRIER CORPORATION ©2021 Installation Guide All rights reserved Downloaded from ManualsNet.com search engine...
