1
3
5
7

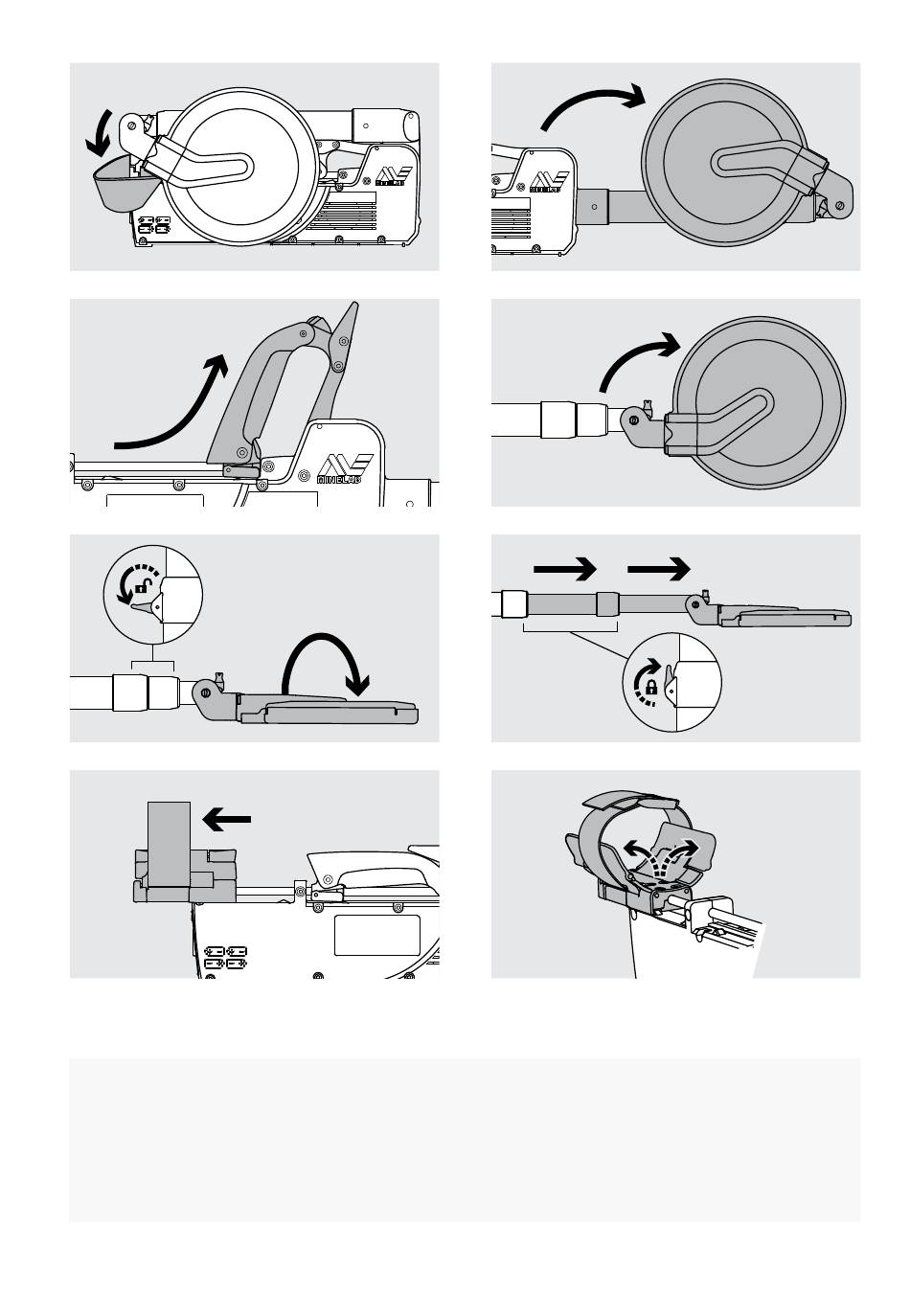

Figure 5: Guide to unfolding and adjusting the F3 Compact
When the Handle Assembly is locked into position (Frame 3) it will also lock the
Upper Shaft in position. To unlock the Handle Assembly and to allow the Upper Shaft
to fold when repacking the detector, gently but firmly impact the base of the palm
against the top of the handle behind the LED display.
F3 Compact Operations Manual
2
4
6
8
NOTE
General Description and Preparation | 11
