DS-1600KI Keyboard
User Manual

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-1600KI

Summary of Contents for HIKVISION DS-1600KI

  • Page 1 DS-1600KI Keyboard User Manual...
  • Page 2 SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
  • Page 3 DS-1600KI Keyboard User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could...

  • Page 4: Table Of Contents

    DS-1600KI Keyboard User Manual Contents Chapter 1 Product Description ....................1 1.1 Product Overview ........................1 1.2 Appearance ..........................2 Chapter 2 Start-up ........................5 2.1 Activate Keyboard ........................5 2.2 Change Password ........................5 2.3 Login and Logout ........................7 Chapter 3 Configure Network .....................
  • Page 5 DS-1600KI Keyboard User Manual 4.3.8 Video Wall Preview ..................... 27 4.4 Video Playback ........................27 4.5 Control DVR .......................... 28 4.6 Manage User ........................31 4.6.1 Add New Users with Admin Account ................31 4.6.2 Edit User Accounts by Administrator ................32 Chapter 5 Control Platform .......................

  • Page 6: Chapter 1 Product Description

    In addition to displaying images, the 10.1" capacitive touchscreen supports DVI and HDMI video outputs. The software system runs on Android 6.0. It is compatible with all series of Hikvision IP cameras, NVRs/DVRs, and control center platform such as HikCentral. It supports recording, picture capturing and two-way audio, as well as the video wall control and scene switch of platform and decoding devices.

  • Page 7: Appearance

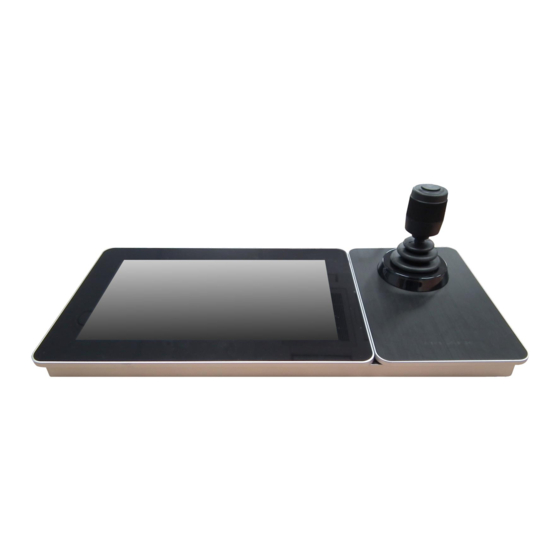

    DS-1600KI Keyboard User Manual 1.2 Appearance The DS-1600KI keyboard consists of a touchscreen and a joystick panel. The joystick panel is detachable and can be separated from the keyboard. Refer to the following figure for keyboard appearance. Figure 1-1 DS-1600KI Keyboard Appearance Front Panel Refer to the following table for description of keyboard appearance.
  • Page 8 Rotate clockwise Zoom in (ZOOM+) Interfaces Eight interfaces and one button are provided on the rear panel of DS-1600KI keyboard. Figure 1-2 Rear Panel of DS-1600KI Refer to the following table for description of the interfaces. Table 1-3 Description of Interfaces...
  • Page 9 DS-1600KI Keyboard User Manual Number Name Description LAN Network Interface 1 10M/100M/1000M adaptive Ethernet interface. Power Input 12 VDC power input. Power Switch Press to wake up the touchscreen, or turn the keyboard into sleeping mode. Hold (for 3 s) to power on/​ o ff, or reboot the device.

  • Page 10: Chapter 2 Start-Up

    What to do next You can log in the keyboard and operate it now. 2.2 Change Password You can reset the keyboard password by SADP. Steps 1. Select the checkbox before the ID of the DS-1600KI keyboard. 2. Click Forgot Password.
  • Page 11 DS-1600KI Keyboard User Manual Figure 2-1 Reset the Password 3. Click Export to download the key request file. 4. Set the file path in the pop-up window. 5. Click Select Folder to save the device key request file on your PC.

  • Page 12: Login And Logout

    DS-1600KI Keyboard User Manual 2.3 Login and Logout Log in the keyboard to operate it. Log out to lock your operation. Steps 1. Click Keyboard on the menu. 2. Select the account and enter the password to login. Figure 2-2 Login Interface 3.

  • Page 13: Chapter 3 Configure Network

    DS-1600KI Keyboard User Manual Chapter 3 Configure Network 3.1 Set Wired Network Setting the wired network parameters to connect to the network. Before You Start Make sure the network cable is appropriately connected. Steps 1. Click on the home page and choose Ethernet.

  • Page 14: Chapter 4 Manage Keyboard

    DS-1600KI Keyboard User Manual Chapter 4 Manage Keyboard 4.1 Manage Device 4.1.1 Add and Edit Device Add Device Manually You can add devices manually by inputting device parameters. Up to 8,000 devices can be added by the admin. Steps 1. Click Keyboard.
  • Page 15 DS-1600KI Keyboard User Manual Figure 4-2 Add Device Manually 6. Click Save to finish adding. Add Device by Searching Online Devices You can also add devices by online searching Steps 1. Click Keyboard. 2. Click 3. Click Device. 4. Click to enter Auto Search interface.
  • Page 16 DS-1600KI Keyboard User Manual Figure 4-3 Auto Search Result 5. Select the device(s) as you desired. 6. Enter User Name, and Password. 7. Click Save. Note If you want to add multiple devices, all device user names and passwords must be the same.
  • Page 17 DS-1600KI Keyboard User Manual Steps 1. Click Keyboard. 2. Click 3. Click Camera. 4. Optional: If you don't know the import file format, you can export a file to find out. 1) Click 2) Enter the admin password. 3) Select a file where you want to export.
  • Page 18 DS-1600KI Keyboard User Manual Edit Device Property You can view and edit details of the added devices in Device interface. Before You Start Ensure you have at least added one device. Steps 1. Click Keyboard. 2. Click 3. Click Device.

  • Page 19: Manage Connected Cameras

    DS-1600KI Keyboard User Manual Figure 4-5 Edit the Device 6. Click Save to confirm the modification. 4.1.2 Manage Connected Cameras You can view and edit connected camera information. Before You Start Ensure you have added at least one camera and logged in the admin user account.
  • Page 20 DS-1600KI Keyboard User Manual Steps 1. Click Keyboard. 2. Click 3. Click Device → Camera . 4. Click the camera as you desired and then you can view its details. Name The camera name. Channel ID The camera serial number according to the added sequence.

  • Page 21: Manage Auto-Switch Group

    DS-1600KI Keyboard User Manual Note The range of Channel ID is from 1 to 99999999, and the ID cannot be repeated. 6. Click Save to finish modification. 4.1.3 Manage Auto-switch Group Create Auto-switch Group It would be easier to manage your devices by adding relevant cameras into a group. For example, you can add all the underground garage cameras into one auto-switch group, so you can view the group to view the cameras in it.
  • Page 22 DS-1600KI Keyboard User Manual Enter the group number as desired. The range is from 1 to 16, and it cannot be repeated. Up to 64 cameras can be added in each group, no more than 16 groups can be added.

  • Page 23: Live View On Screen

    DS-1600KI Keyboard User Manual Before You Start Ensure you have groups added. Steps 1. Click Keyboard. 2. Click 3. Click Device → Auto-switch Group . 4. Click on the added group. Figure 4-9 Edit the Group 5. Edit group parameters of Name, No., and Time.
  • Page 24 DS-1600KI Keyboard User Manual 6. Select a camera to display by two selectable ways. In keyboard Enter the serial number in the numeric panel, and click to play panel the live video of corresponding camera or camera group on the window.

  • Page 25: Ptz Control

    DS-1600KI Keyboard User Manual 4.2.2 PTZ Control You can click in the live view mode to achieve PTZ control operation, including pan/tilt movement, zoom in/out, wiper on/off, etc. The PTZ control should be supported by the added device. Set and Call a Preset A preset is a predefined image position which contains information of pan, tilt, zoom, focus and other parameters.

  • Page 26: Manage Video Wall

    DS-1600KI Keyboard User Manual 2. Click to start recording path of the desired pattern. 3. Use the joystick and other buttons to control the PTZ movement, including pan/tilt movements, zoom and focus control, auto-scanning, etc. 4. Click to stop recording of this pattern path.

  • Page 27: Configure Video Channels On Video Wall

    DS-1600KI Keyboard User Manual Figure 4-11 Edit the Video Wall Name Edit a name for the video wall as desired. The row of the video wall. Column The column of the video wall. 8. Click Save to save the settings.
  • Page 28 DS-1600KI Keyboard User Manual Figure 4-12 Select the Output Channel 7. Select the output channel as you desired. Note • If you want to delete the output channel, hold the configured window and click on the upper-right corner • At Video Wall interface, you can also open, close, and move window by holding the window.

  • Page 29: Play Video On Video Wall

    DS-1600KI Keyboard User Manual 4.3.3 Play Video on Video Wall You can play live video on video wall window. Steps 1. Click Keyboard. 2. Click 3. Click Video Wall. 4. Select a playing window. 5. Click to expand the channel panel.

  • Page 30: Save Current Video Wall Settings As A Scene

    DS-1600KI Keyboard User Manual Figure 4-14 Window Roaming 6. You can move the playing window within the video wall as desired and adjust its size. 7. The dotted borders will display during moving the window. You can double-click the window to adjust it to match the borders.

  • Page 31: Smart Scaling On Video Wall

    DS-1600KI Keyboard User Manual 3. Click Video Wall. 4. Select a window on the video wall interface. 5. Click 6. Select the date as you desired. Figure 4-15 Video Wall Playback 7. Optional: You can switch channel by two ways.

  • Page 32: Video Wall Preview

    DS-1600KI Keyboard User Manual 5. You can adjust the frame size with fingers. Figure 4-16 Smart Scaling 4.3.8 Video Wall Preview You can preview videos on the local keyboard interface to check the layout and other effects of the video wall.

  • Page 33: Control Dvr

    DS-1600KI Keyboard User Manual Figure 4-17 Video Playback 5. You can switch channel by two ways. In keyboard panel Enter the serial number in the numeric panel, and click In the list a. Click List b. Select a camera in the list.
  • Page 34 DS-1600KI Keyboard User Manual Figure 4-18 DVR/NVR Remote Panel 6. Optional: You can switch on Enable PTZ to achieve functions such as PTZ control, iris control, focus, wiper, light, etc. Note Ensure the device that connects to DVR/NVR device supports PTZ control operation.
  • Page 35 DS-1600KI Keyboard User Manual Table 4-1 Panel Description Name Function Description Returns to the previous menu. Presses for arming/disarming the device in live view mode. REC/SHOT Enters the Manual Record settings menu. Presses this button followed by a numeric button to call a PTZ preset in PTZ control settings.

  • Page 36: Manage User

    DS-1600KI Keyboard User Manual Name Function Description Shows/hides the control interface in playback mode. PREV/FOCUS- Switches between single screen and multi-​ s creen mode. Adjusts the focus in conjunction with the A/FOCUS+ button in PTZ control mode. IRIS- Adjusts the iris of the PTZ camera in PTZ control mode.

  • Page 37: Edit User Accounts By Administrator

    DS-1600KI Keyboard User Manual Figure 4-20 User Management 4.6.2 Edit User Accounts by Administrator The administrator has the highest operation permissions that can change the settings of all other operators, including assigning device permission to the operator, and changing the password of other operator accounts.

  • Page 38: Chapter 5 Control Platform

    DS-1600KI Keyboard User Manual Chapter 5 Control Platform You can connect the keyboard to platforms to play live video on video wall or watch live video on the local keyboard interface. 5.1 Control iSecure You can connect the keyboard to iSecure platform to play live video on video wall or watch live video on the local keyboard interface.

  • Page 39: Control Hikcentral

    DS-1600KI Keyboard User Manual 2) Click , enter the serial number in the numeric panel, and click to play the live video of corresponding camera on the window. Note • You can also select from List. • You can click to preview the live video of the previous or next input camera channel on the selected output monitor.

  • Page 40: Control Kps

    DS-1600KI Keyboard User Manual 4. Click in the upper-right corner and select Video Wall, and select the video wall that you want to configure. Note All video wall resources from the platform will be listed in Video Wall. 5. Select a camera to play on video wall .
  • Page 41 DS-1600KI Keyboard User Manual Figure 5-3 Platform Management 4. Click in the upper-right corner and select Video Wall, and select the video wall that you want to configure. Note All video wall resources from the platform will be listed in Video Wall.

  • Page 42: Chapter 6 Control Matrix

    DS-1600KI Keyboard User Manual Chapter 6 Control Matrix The keyboard can connect to matrix to control video display on video wall. Before You Start Make sure you have appropriately configured the network of keyboard and matrix. Steps 1. Click Matrix on the home page.
  • Page 43 DS-1600KI Keyboard User Manual Figure 6-2 Monitor Interface 5. Optional: You can enter the number in numeric panel, and click to split the window into multiple screens. 6. Optional: You can click to view previous or next input camera channel on the selected output window.

  • Page 44: Chapter 7 Configure System

    DS-1600KI Keyboard User Manual Chapter 7 Configure System For Ethernet and WLAN configuration, refer to Set Wired Network and Set Wireless Network . 7.1 Set Language You can choose the device language. Steps 1. Click System Settings → Language .

  • Page 45: Maintenance

    DS-1600KI Keyboard User Manual Note A new folder will be created in the directory. 4. Click Save. 7.4 Maintenance For the admin user account, you can import and export the configuration files, and restore the defaults of local configurations. The import and export operation allows you to duplicate system settings from one device to another, which is a convenient way to configure your device.

  • Page 46: Upgrade Firmware

    DS-1600KI Keyboard User Manual External Monitor Resolution Click at External Monitor Resolution. Display Video Only on Secondary Screen When enabling Display Video Only on Secondary screen, live view and playback video will be shown on the secondary screen. And the operation will be shown on the keyboard.
