Installation Guide / Manual
Warning

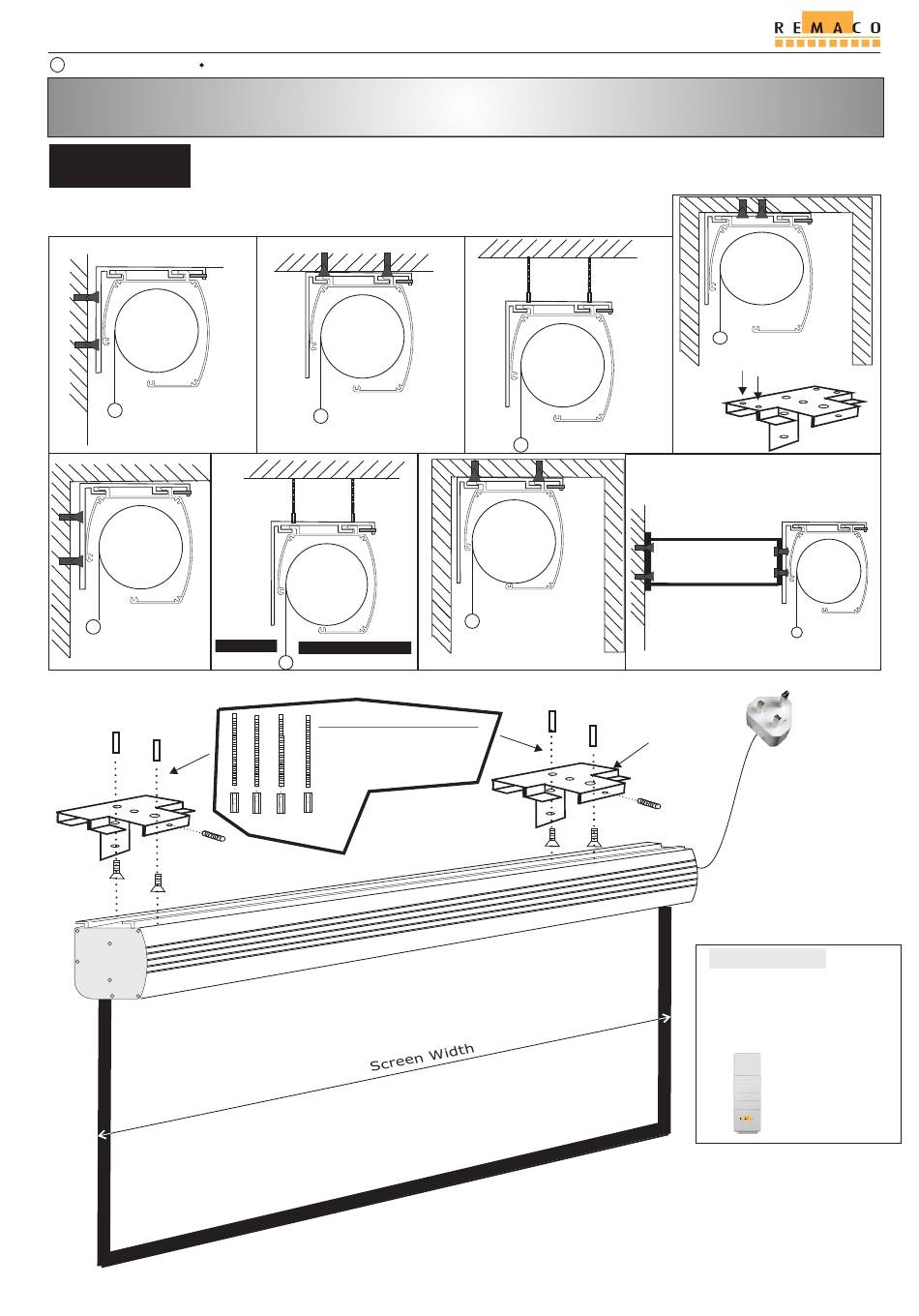

Universal Bracket can be used for any type of installation as shown below.
Wall Mount
Corner Mount
M6 Anchors
M5 Stopper
M6
Screws
Countersunk
Screws
* For details dimension , please refer to technical specifications at
Caution with main supply and live wires. Install with qualified technician or trained
personnel.
Ceiling Mount
Ceiling
Recessed
For Suspension from Ceiling
Insert these accessories in
between the indicated arrow.
(optional)
M6 Long Nuts
www.remacotech.com
(PRO-1515 to PRO-2727)
Ceiling
Suspension
AVA-Wall Ext/L - 25.0cm
AVA-Wall Ext/S - 12.5cm
Pelmet Mount
Universal
Bracket
Website: www.remacotech.com
Use these holes
Side
Pelmet
Mount
Extension Mount (Wall)
3-Cores
Power
Supply
AC Cable
Brown (to Live)
Blue (to Neutral)
Green (to Earth)
Important Note!
Each RF Transmitter is
pre-programmed to work with
the RF Receiver that comes with
it. It will not work with any other
Receiver, unless otherwise
programmed to do so.
RF
Transmitter
V: 10.0
