Remaco FIX-1612V Installation Manual

Wall mount screen fix series

Advertisement

Quick Links

C COPYRIGHTS 1998
REMACO TECHNOLOGIES PTE LTD
Installation Guide
Warning
Step 1
Front View
Step 2
Back-view of the frame
Should the screen install in cold weather (Temperature below 18 degrees), please warm up the screen
by opening it and leave it with the room heater for an hour to allow fabric to expand.
This measure is to prevent the fabrics from tearing.
Inner track
Outer track
Snap Button
(FIX SERIES)

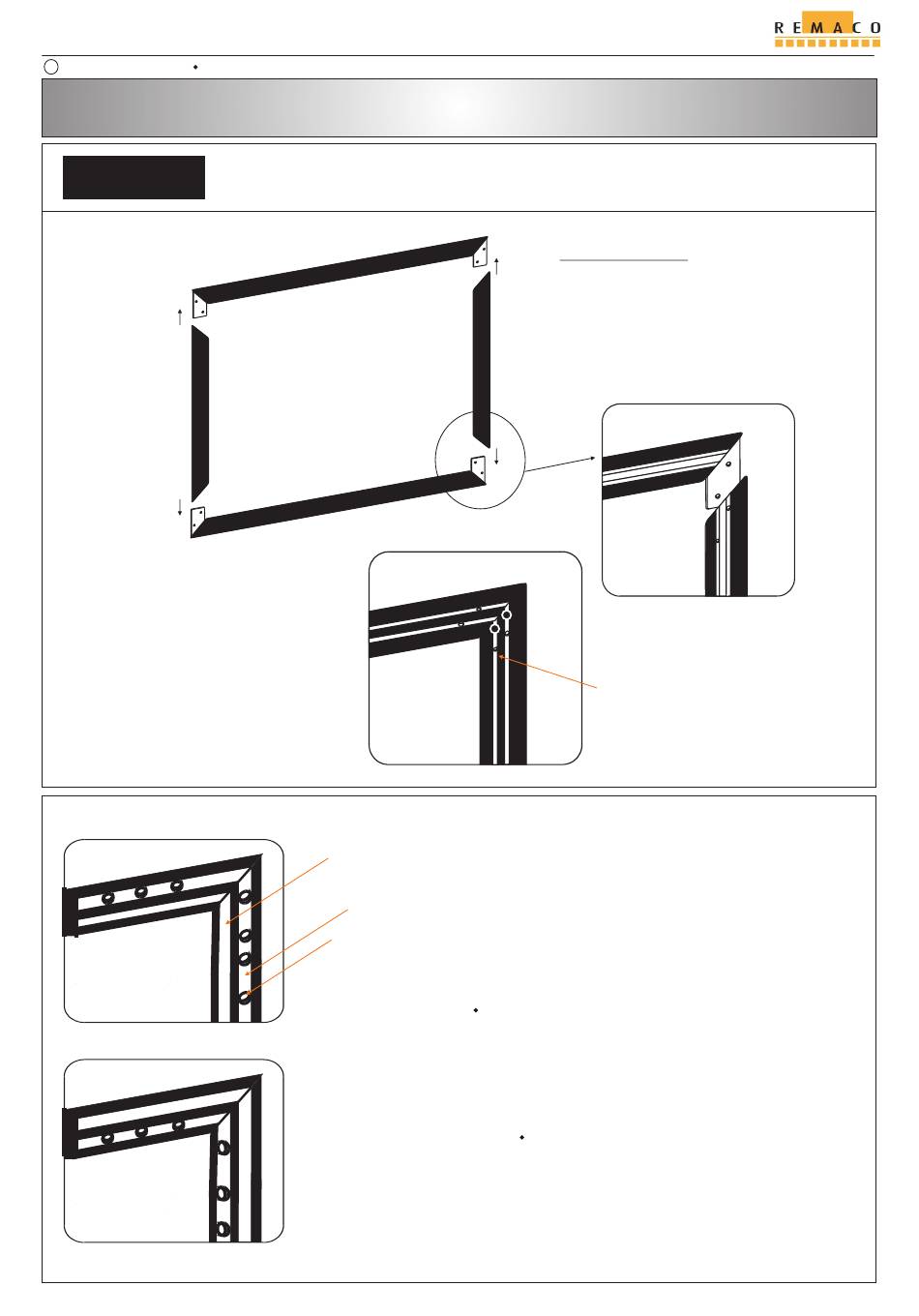

Frame Assembly
Place the frame sections on the floor as
shown.
To form a rectangle, insert frame into the
metal angle joint bracket. Screw the
respective 2 holes with the screws provided.
Back-view of the frame
Default setting of the buttons are located at the outer
track. Outer track is ideal for room temperature above
25 Celsius.
Due to cold countries or low temperature room
(below 25 Celsius) may cause fabrics to contract
thus Inner track has to be used. In that case simply
shift snap button to the inner track as shown.
Website: www.remacotech.com
Back-view of the frame
Place 1 moveable button and screw it in
place on the provided hole in one of the
desire track.
V: 9.0
FIX
