Remaco PLT-419C Installation Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
C
COPYRIGHTS 1998
REMACO TECHNOLOGIES PTE LTD
Important Notice: Do not turn on power to the projector lift until it is completely installed on the ceiling.
!
!
Warning: Caution with main supply and live wires. Install with qualified technician or trained personnel.

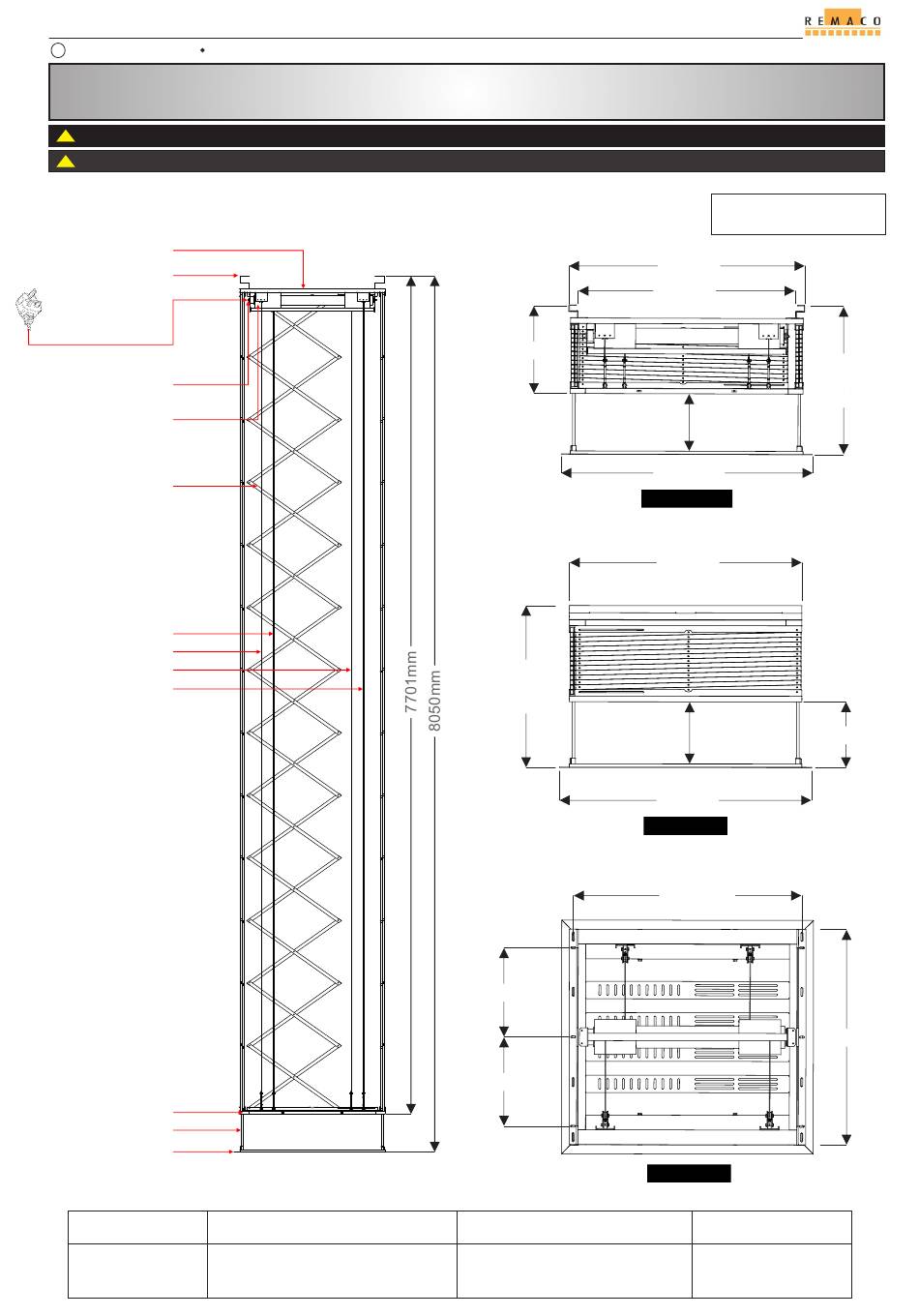

Top Frame
C-Hook Bracket
3-Core
Power Supply
AC Cable
4-Core DC Control
(Contact Closure)
Motor
Scissors Bar
Stainless Steel
Wire (4 nos)
Bottom Frame
Threaded Rod
Ceiling Enclosure
Model
PLT-419C
Installation Guide (PLT-419C)
Kept Position Height
734mm to 988mm
*Depending on the lift drop height
512mm
Front View
734mm
to
988mm
Side View
362mm
362mm
Travel Distance
H = 4000mm to 10000mm
Website: www.remacotech.com
Load Capacity: 120kg
Drop Height: 10meters
957mm
925mm
734mm
988mm
330mm
1021mm
874mm
330mm
349mm
948mm
927.5mm
948mm
Plan View
Load Capacity
120kg
V: 3.0
PLT
to

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLT-419C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Remaco PLT-419C

Summary of Contents for Remaco PLT-419C

  • Page 1 Website: www.remacotech.com COPYRIGHTS 1998 REMACO TECHNOLOGIES PTE LTD V: 3.0 Installation Guide (PLT-419C) Important Notice: Do not turn on power to the projector lift until it is completely installed on the ceiling. Warning: Caution with main supply and live wires. Install with qualified technician or trained personnel.
  • Page 2 Contact Closure (Dry Contact) Concrete M8 Anchor ** AVA-200 Spring-Loaded Mechanical Switch C-Hook Bracket 78.7 x 4.1 x 3cm Top Frame Motor Stainless Steel Wire (4 nos) Cable color legend Projector Up (Red) Down (Black) Common (Yellow) Bottom Frame Not in use (Green) * Stop - press any button to stop movement Projector...
  • Page 3 RF Remote Operation Stop Down Stop for 2 sec. Move Upward Stop Movement Move Downward Move to third limit (for maintenance purposes) Press and hold (STOP) for 2 sec. Mechanical Switch (AVA-200, AVA-200+, Third-Party Control) Stop Down Press any button to Move Upward STOP movement Move Downward...
  • Page 4 Setting of Upper and Lower Limit P2 x 1 UP x 1 P2 x 1 Motor beeps Motor beeps Motor roll Motor roll Motor roll up and down up and down up and down Remote ENTERS teaching mode press setting button (P2) press (UP) button press setting button (P2) one time...
  • Page 5 Setting of Third Limit (Below Lower Limit for Maintenance) P2 x 1 DOWN x 1 DOWN x 1 Motor beeps Down limit position Motor roll Motor roll Motor roll up and down up and down up and down Remote ENTERS teaching mode press setting button (P2)

  • Page 6: Appendix A (Set Only When Required)

    Appendix A (Set Only When Required) Fine Tuning of Upper/Lower Limit UP x 1 STOP x 1 Motor beeps (UP+DOWN) x 1 Motor move Motor move Successful in steps in steps press (UP) button press STOP button one time until and hold for 3 sec.

  • Page 7: Appendix B (Another Setting Method By Motor Button)

    Appendix B (Another Setting method by Motor Button) Motor Button Change Direction Motor beeps x 3 Motor Successful Press and Hold Motor roll Button up and down for 5 sec. Factory Default Reset Motor Motor beeps x 3 beeps x 3 Motor Successful Press and Hold...

  • Page 8: Appendix C (Assemble Threaded Rod And Spring To Ceiling Enclosure)

    Appendix C (Assemble threaded rod and spring to ceiling enclosure) Simple Method to insert false ceiling Lay false ceiling board 45 degree on false ceiling frame as shown. Rotate and false ceiling board will position correctly. Parts: 1. Ceiling Enclosure 2.
