C COPYRIGHTS 1998
REMACO TECHNOLOGIES PTE LTD

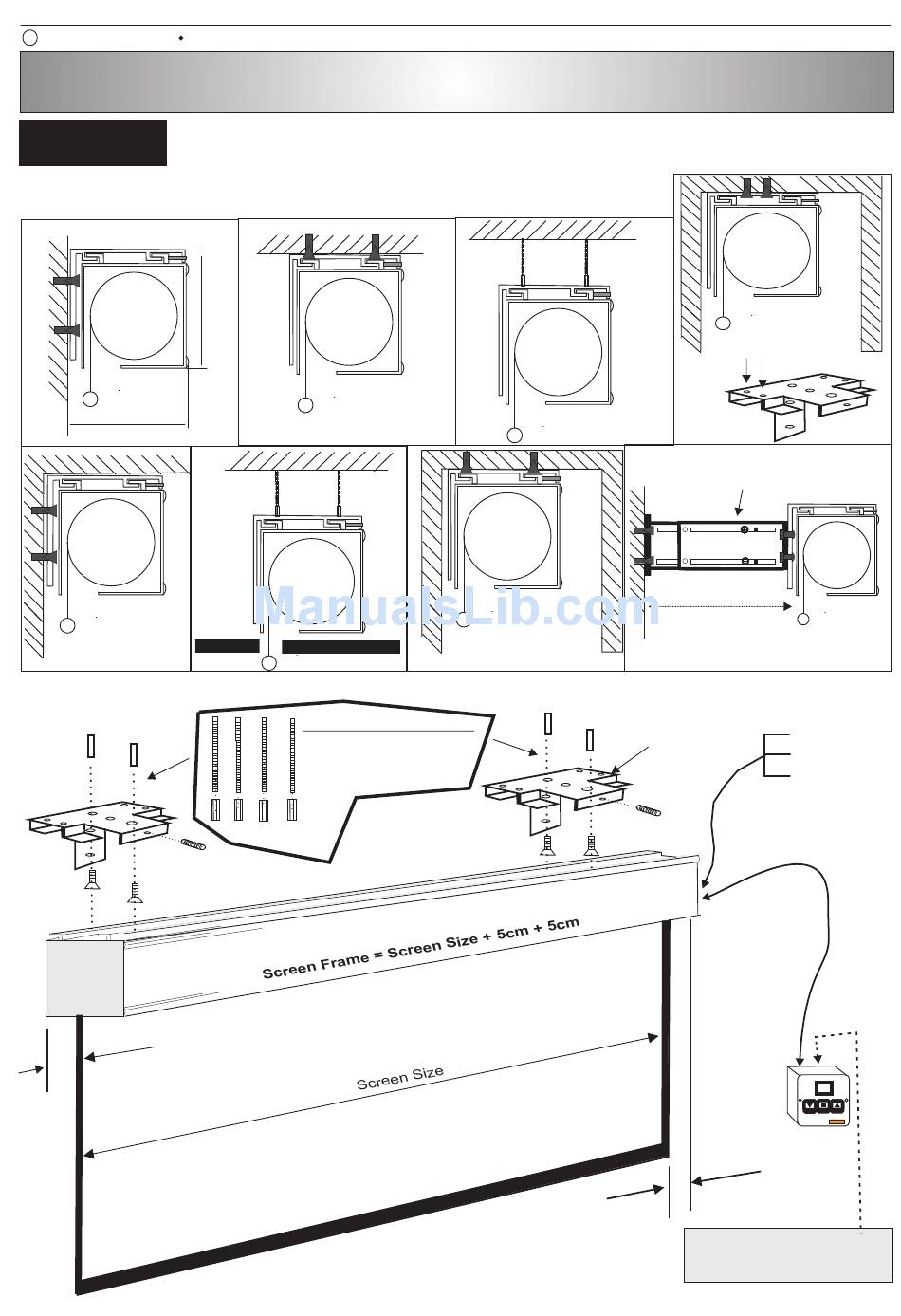

Installation Guide

Warning

Universal Bracket can be used for any type of installation as shown below.
Wall Mount
10cm
Corner Mount
M6 Anchors
M5 Stopper
Screws
M6
Countersunk
Screws
5cm
Caution with main supply and live wires. Install with qualified technician or trained
personnel.
10
cm
Ceiling Mount
Ceiling
Recessed
For Suspension from Ceiling
Insert these accessories in
between the indicated arrow.
M6 Long Nuts
(For PRO-1515 to PRO-2724)
Ceiling
Suspension
Pelmet Mount
Website: www.remacotech.com
Use these holes
Side
Pelmet
Mount
5" to 9" Adjustable Extension
Mount (Optional)
5" to 9"
Extension Mount (Wall)
Bracket
Brown (to Live)
Blue (to Neutral)
Green (to Earth)
3-Cores AC Cable
4-Cores
AC
Cable
Electronics
Screen
Control
(ESC)
5cm
A/V Control System
(Crestron, Panja)
V: 5.1
SS/ESC
STOP
DOWN
UP
Remaco
