Remaco PRO-1515 Installation Manual & Manual

C COPYRIGHTS 1998 REMACO TECHNOLOGIES PTE LTD
Installation Guide / Manual
Warning

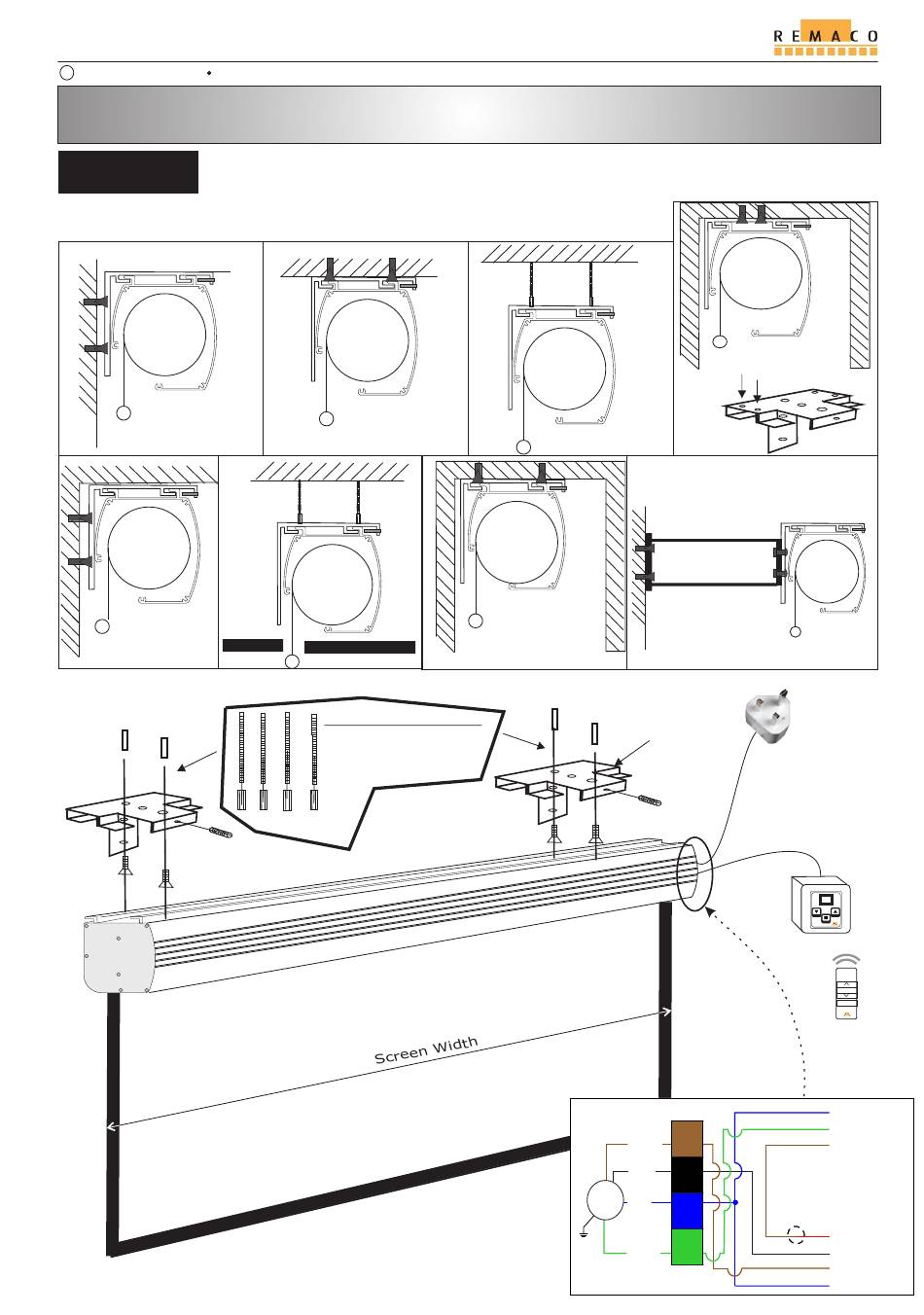

Universal Bracket can be used for any type of installation as shown below.
Wall Mount
Recessed
Corner Mount
M6 Anchors
M5 Stopper
M6
Screws
Countersunk
Screws
* For details dimension , please refer to technical specifications at
Caution with main supply and live wires. Install with qualified technician or trained
personnel.
Ceiling Mount
Ceiling
For Suspension from Ceiling
Insert these accessories in
between the indicated arrow.
(optional)
M6 Long Nuts
www.remacotech.com
(PRO-1515 to PRO-2727)
Ceiling
Suspension
AVA-Wall Ext/L - 25.0cm
AVA-Wall Ext/S - 12.5cm
Pelmet Mount
Universal
Bracket
Brown
Black
Motor
Blue
Green
Website: www.remacotech.com
ESC-ip
Use these holes
Side
Pelmet
Mount
Extension Mount (Wall)
3-Cores
Power
Supply
AC Cable
Brown (to Live)
Blue (to Neutral)
Green (to Earth)
4-Cores
Control
.
Cable
UP
DOWN UP
DOWN
STOP
ESC-ip
_
RF
Remote
Details
connection
inside
Blue
}
Green
UP Brown
DN
Internally Shorted
N
Red
}
Brown
E
Black
Brown
Blue
V: 11.0
Electronics
Screen
Control
(ESC-ip)
To 3-Cores
Power
Supply
To ESC-ip
