Draper STORM FORCE 38255 User Manual

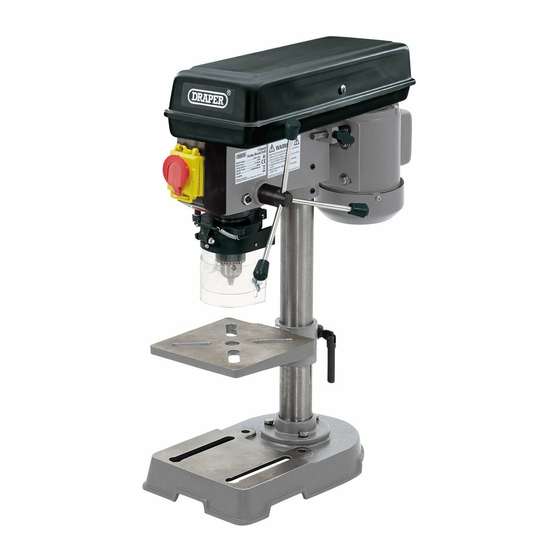

230v 5 speed bench drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

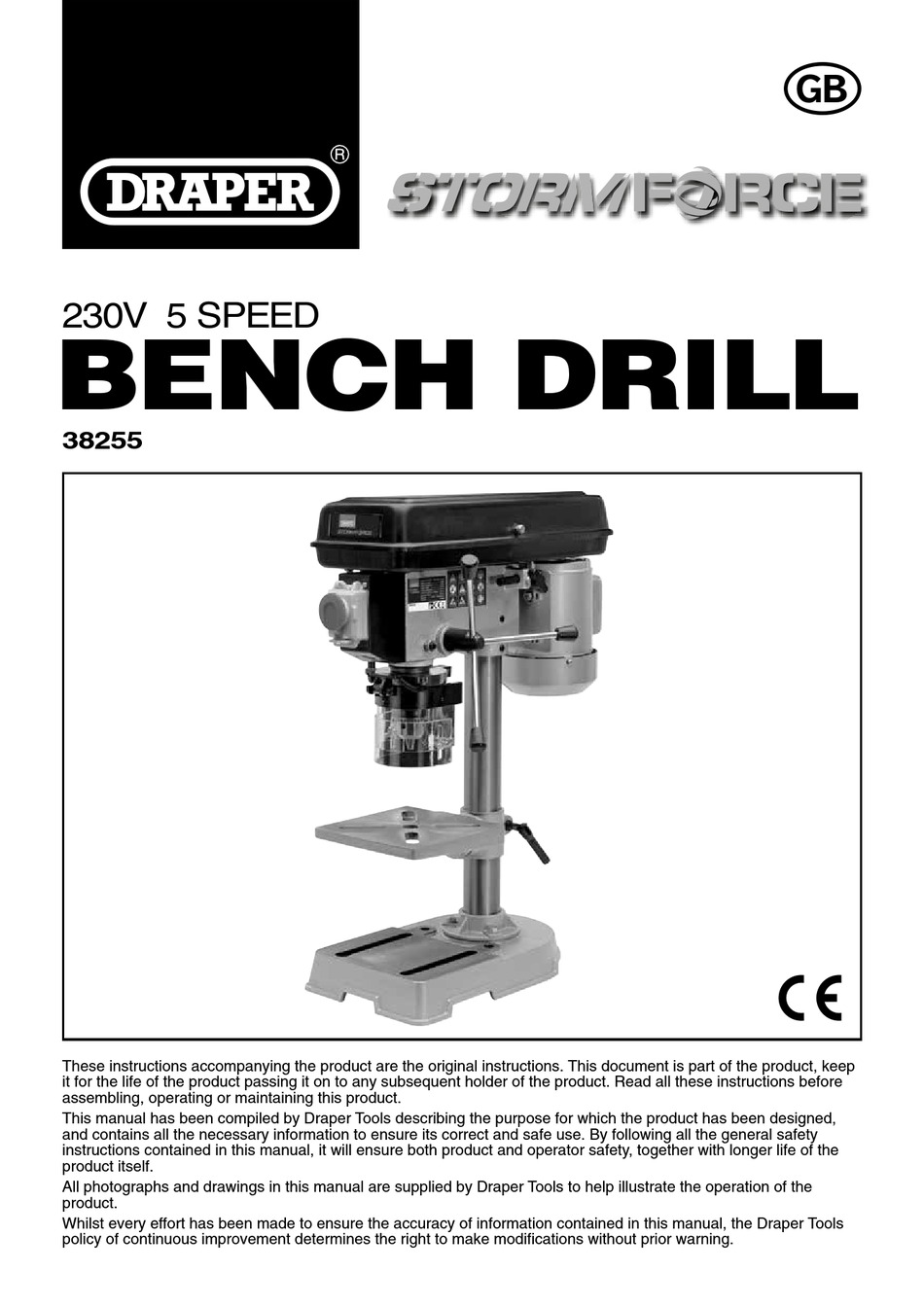

230V 5 SPEED
BENCH DRILL
38255
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STORM FORCE 38255 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper STORM FORCE 38255

Summary of Contents for Draper STORM FORCE 38255

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION: ......................2 REVISIONS: ......................... 2 UNDERSTANDING THIS MANUALS SAFETY CONTENT: ......... 2 COPYRIGHT © NOTICE: ..................... 2 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE ..................5 HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE .......

  • Page 4: Warranty 3.1 Warranty

    This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 5: Introduction

    INTRODUCTION SCOPE Five speed bench drill with a 13mm chuck. Ideal suited for the DIY and hobby user. Designed to drill into wood, plastics, ceramics and many metals (drill bits sold separately). This product is intended for domestic and infrequent light trade use only. Any application other than that it was intended for, is considered misuse.

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.

  • Page 7: Specific Safety Instructions For Drill Presses

    HEALTH AND SAFETY INFORMATION before making any adjustments, carrying out maintenance operations or just finishing using the tool. Remove and check setting tools. Some machinery requires the use of additional tools or keys to set, load or adjust the power tool. Before starting the power tool always check to make certain they have been removed and are safely away from the machine.

  • Page 8: Residual Risk

    HEALTH AND SAFETY INFORMATION Location: − Posture: Ensure when mounting the machine that the chosen location does not lead to unhealthy posture or repetitive strain during normal operation. − Lighting : Adequate lighting must be provided to ensure no operations are light impaired possibly leading to injury.

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION IDENTIFICATION (11) (12) (10) (13) (14) (15) (17) (16) (18) (19) (20) (1) No-volt on/off switch. (11) Motor/belt tension adjuster (12) Plunge handle assembly (2) Depth stop (3) Spindle (13) Geared chuck (4) Pulley cover (14) Work table tilt scale (5) Motor cut-out microswitch (15) Work table tilt locking bolt (6) Motor pulley...

  • Page 10: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 11: Assembling The Bench Drill

    ASSEMBLING THE BENCH DRILL Note: Remove the plug from the socket before (10) carrying out adjustment, servicing or maintenance. BASE TO COLUMN – FIG. 1 Align the column (10) onto the base (20) and secure with the three 12mm bolts and washers (21).

  • Page 12: Chuck - Fig. 5

    ASSEMBLING THE BENCH DRILL CHUCK – FIG. 5 Ensure both mating surfaces of the spindle (13.1) and chuck (13) are clean before pushing the chuck (13) onto the taper. A sharp tap with a soft blow mallet will secure the chuck in place. (13.1) Note: Ensure the chuck jaws are fully recessed prior to striking with the mallet.

  • Page 13: Setting The Bench Drill

    SETTING THE BENCH DRILL Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. SPINDLE SPEED ADJUSTMENT – FIGS. 7 – 8 This drilling machine is equipped with 5 drilling speeds. − Remove the pulley cover securing screw (4.1). −...

  • Page 14: Maintenance And Troubleshooting

    10. MAINTENANCE AND TROUBLESHOOTING 10.1 TROUBLESHOOTING GUIDE Problem Possible Cause Remedy Machine will not start. 1. Fuse. 1. Replace/reset time delay fuse or circuit breaker. 2. Unsure. 2. Return to an authorised service agent for diagnosis. Noisy operation. 1. Incorrect belt tension. 1.

  • Page 15: Maintenance

    10. MAINTENANCE AND TROUBLESHOOTING 10.2 MAINTENANCE (6.1) (3.1) Warning: For your safety always turn the main switch on the machine “OFF” and remove the plug from the power supply before carrying out any maintenance or trouble shooting. − Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition.

  • Page 16: Optional Accessories

    11. OPTIONAL ACCESSORIES 11.1 OPTIONAL ACCESSORIES A full range of accessories are available from Draper Tools. Please visit our website for details: www.drapertools.com – 16 –...

  • Page 17: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...

  • Page 18: Explanation Of Symbols

    13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Do not Read the instruction manual. Wear protective gloves. Wear face mask and safety Warning! glasses. Warning! Wear ear defenders. Risk of electric shook. Warning! Regular attention required. Keep out of the reach of children. Warning! Do not abandon into the environment.
  • Page 19 NOTES – 19 –...
  • Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.

This manual is also suitable for:

D13/5da

Table of Contents
