Related Manuals for Draper 30357
Summary of Contents for Draper 30357
-

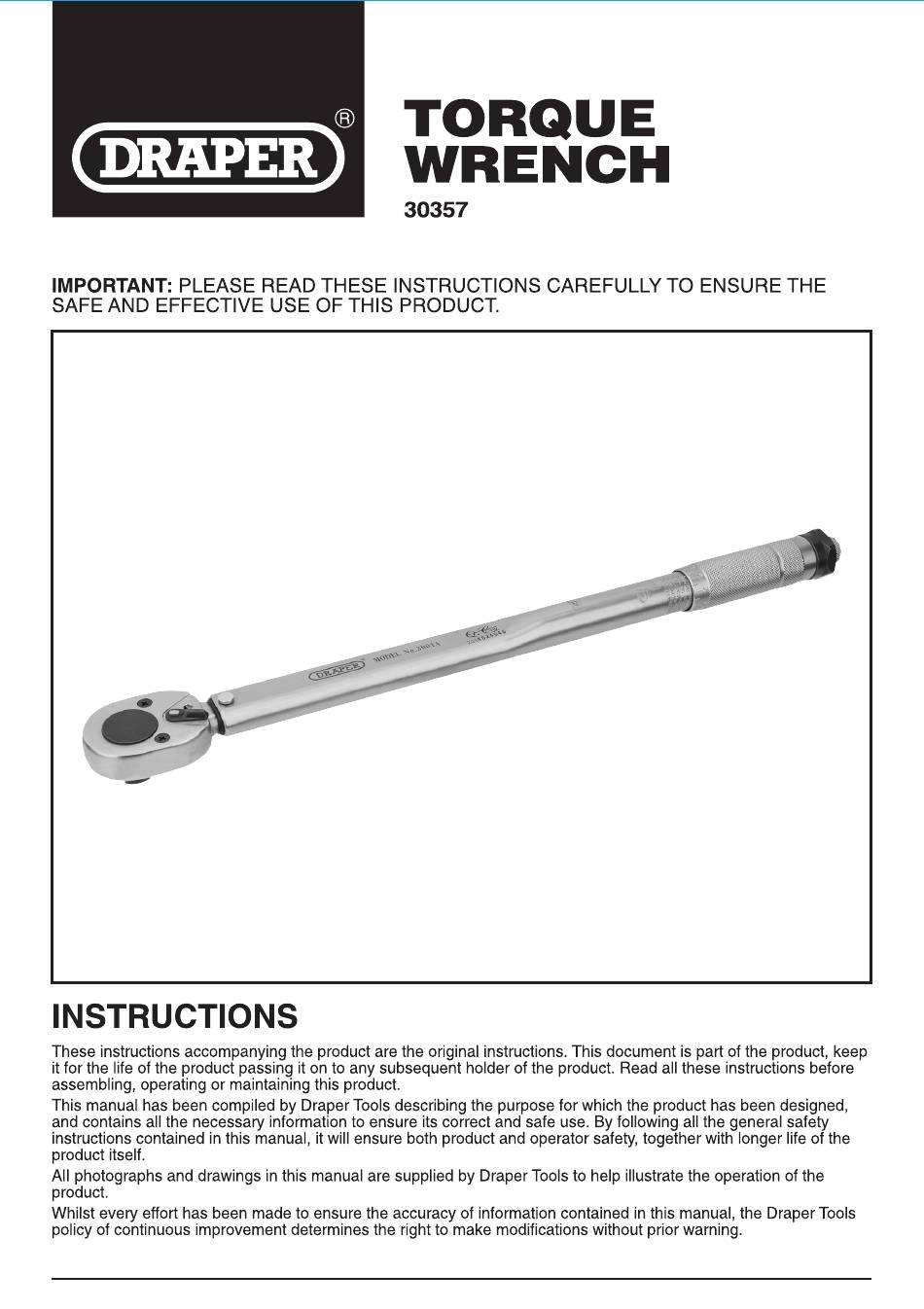

Page 5: Specification

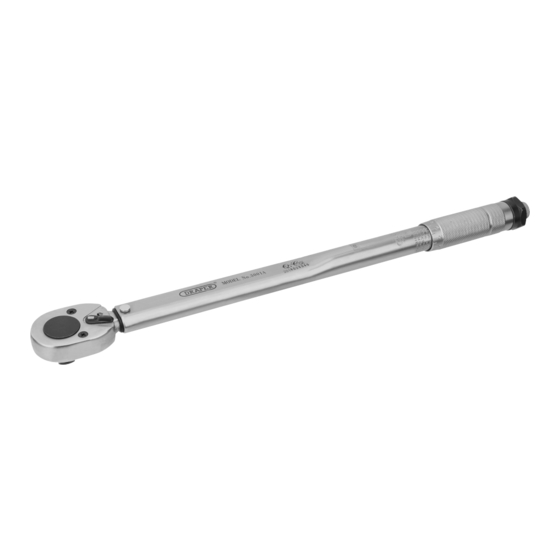

Whilst every effort has been made to ensure that the accuracy of information given in this manual is correct at time of going to print, the Draper Tools policy of continuous improvement determines the right to change specification without notice. - Page 7 TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Drive square. Handle. Direction arrow. Locking screw. Torque scales. Note: After use ALWAYS reset torque wrench to its lowest setting for storage. Storing at a level other than the lowest setting will affect torque wrench calibration.
-
Page 11: Setting Example
OPERATING INSTRUCTIONS - SETTING EXAMPLE ⁄ " SQUARE DRIVE (Figs.2-5): FIG.2 Stock No.30357 Part No.3001A - Torque wrench set to 96Nm. 1. Unlock handle (Fig.1) (Page 10). 2. 90Nm. whole number (Fig.2). 3. 1 div. on handle = 1Nm. 6 div. = 6Nm.
