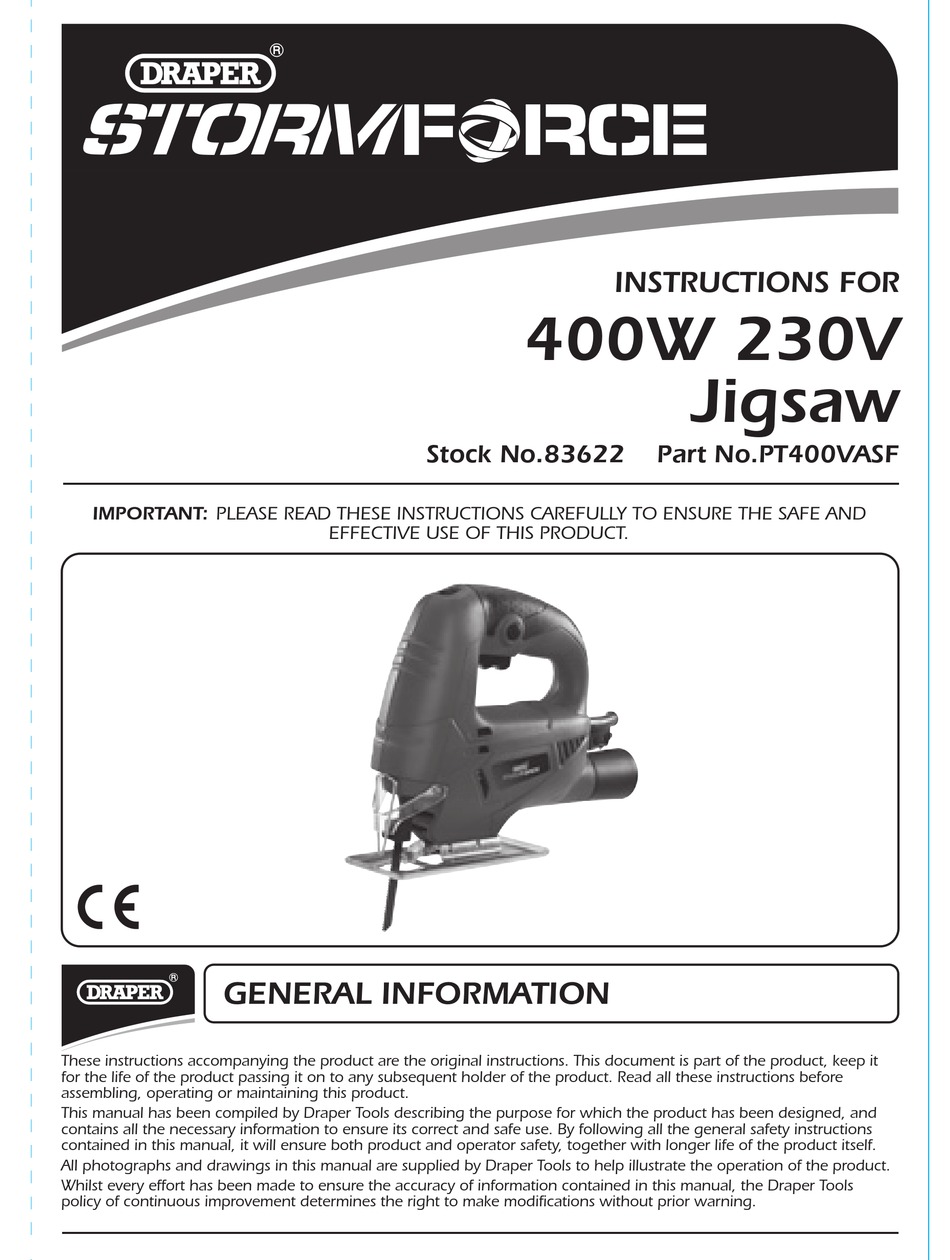

STORM
INSTRUCTIONS FOR
400W 230V

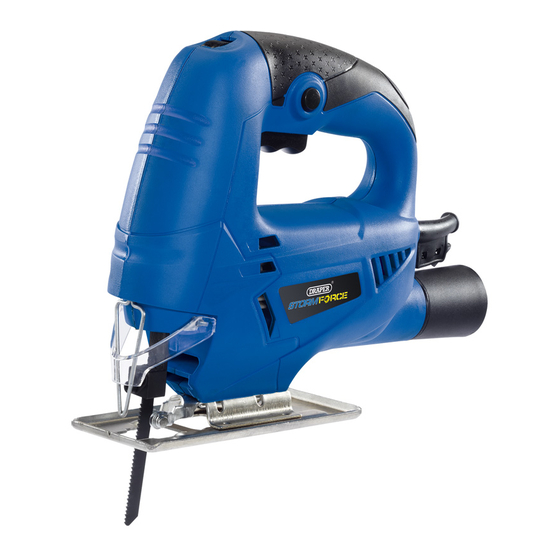

Jigsaw
Stock No.83622
Part No.PT400VASF
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 400W
Summary of Contents for Draper 400W
-
Page 1: General Information
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product. -
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY....................2 UNDERSTANDING THIS MANUAL ...............2 COPYRIGHT NOTICE....................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION ......................5 HANDLING & STORAGE ..................5 HEALTH & SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS ................6 - 7 CONNECTION TO THE POWER SUPPLY..............8 TECHNICAL DESCRIPTION IDENTIFICATION ....................9... -
Page 4: Guarantee 3.1 Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
Stock no ........................... 83622 Part no ........................PT400VASF Motor: Rated voltage ...................... 230V~ Rated frequency ....................50Hz Rated input ......................400W Revolutions per minute (no load) ............0-3,000min Cutting capacity: Wood ........................55mm Mild steel......................... 8mm Mitre cutting ........................±45º... -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS General Power Tools Safety Warnings WARNING: Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... - Page 7 HEALTH & SAFETY INFORMATION f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 8: Connection To The Power Supply
HEALTH & SAFETY INFORMATION 5.2 CONNECTION TO THE POWER SUPPLY Make sure the power supply information on the machine’s rating plate are compatible with the power supply you intend to connect it to. This product comes supplied with a UK standard 3 pin plug fitted. It is designed for connection to a domestic power supply rated at 230V AC. -
Page 9: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Variable speed adjustment Base plate On/off trigger switch Chip guard Trigger lock Blade clamp 3mm hex. key Bevel locking bolts Plug and cable Dust extraction adaptor (fitted) -
Page 10: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the jigsaw. -
Page 11: Setting The Jigsaw
SETTING THE JIGSAW NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. 8.1 BLADE FITTING AND REMOVAL - FIG. 1 A jigsaw can be used for a variety of applications so the correct blade choice is important. i. -
Page 12: Basic Jigsaw Operation
BASIC JIGSAW OPERATION IMPORTANT: Make sure that the mains voltage matches the voltage stated on the machines rating plate. 9.1 SWITCH OPERATION - FIG. 2 FIG.2 TRIGGER SWITCH i. To start the jigsaw, pull, and hold, trigger ii. Release the trigger to cut power to the motor. -
Page 13: Bevel Cuts
BASIC JIGSAW OPERATION NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. 9.2 BEVEL CUTS - FIG. 3 FIG.3 For making bevel cuts, the base can be adjusted up to 45° in either direction. i. Loosen the 3mm hex. socket bolts ii. -
Page 14: General
BASIC JIGSAW OPERATION 9.4 GENERAL Always wear safety goggles. During cutting operations, make sure that the base is always resting on the workpiece. When cutting metals, it is advisable to spread a few drops of oil on the cutting line to aid penetration and help prolong the blade life. -
Page 15: Advance Jigsaw Operation
10. ADVANCE JIGSAW OPERATION 10.1 INTERNAL CUTS - FIG. 5 There are two options for making internal cuts in FIG.5 workpieces: i. Using a flat wood bit, drill a large enough hole in an area within the waste part of the workpiece in order to provide a starting point for the jigsaw blade. -
Page 16: Maintenance
11. MAINTENANCE 11.1 MAINTENANCE & PARTS REPLACEMENT Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. For this reason avoid blocking the air inlets. -
Page 17: Explanation Of Symbols
12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Warning! Wear dust mask. Warning! Read the instruction manual Warning! Warning! Wear suitable eye/face Wear ear defenders. protection. WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish Class II construction (Double insulated). -
Page 18: Disposal
13. DISPOSAL 13.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 19 NOTES...
- Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Help Line for details of an agent in your local area. YOUR DRAPER STOCKIST RDCH0816...
