Rice Lake 882D Quick Start Manual

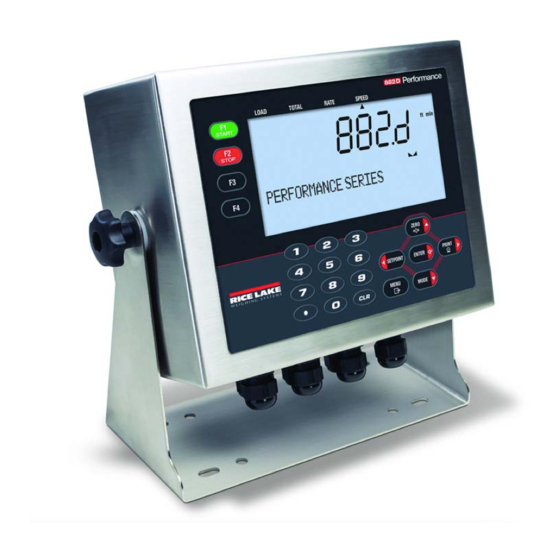

882D Belt Scale Integrator and 882IS/882IS Plus Indicators
Single Analog Output Option Card
The Single Analog Output Card (PN 164704) provides either a 0-10 VDC or 0-20 mA (4-20 mA) output, proportional to the
selected mode source (can also be controlled via the iRite user program).
See the 882D technical manual (PN 184260) or the 882IS I/O Module installation manual (PN 194139) for complete instruction
of the corresponding product on opening the enclosure and the necessary connection ports.
Manuals and additional resources are available from the Rice Lake Weighing Systems website at
Warranty information can be found on the website at
Always disconnect power before opening an enclosure. Option card is not hot swappable.
WARNING
A grounding wrist strap must be worn to protect components from electrostatic discharge (ESD) when working
CAUTION
inside an enclosure.
Kit (PN 190528) Parts
The included parts kit contains items used for installation of the card. See the 882D technical manual or the 882IS I/O Module
installation manual for more information on shield grounding.
Part No.
164704
190927
*15130
*15631
*153878
*180826
*194487
*53075
December 3, 2019

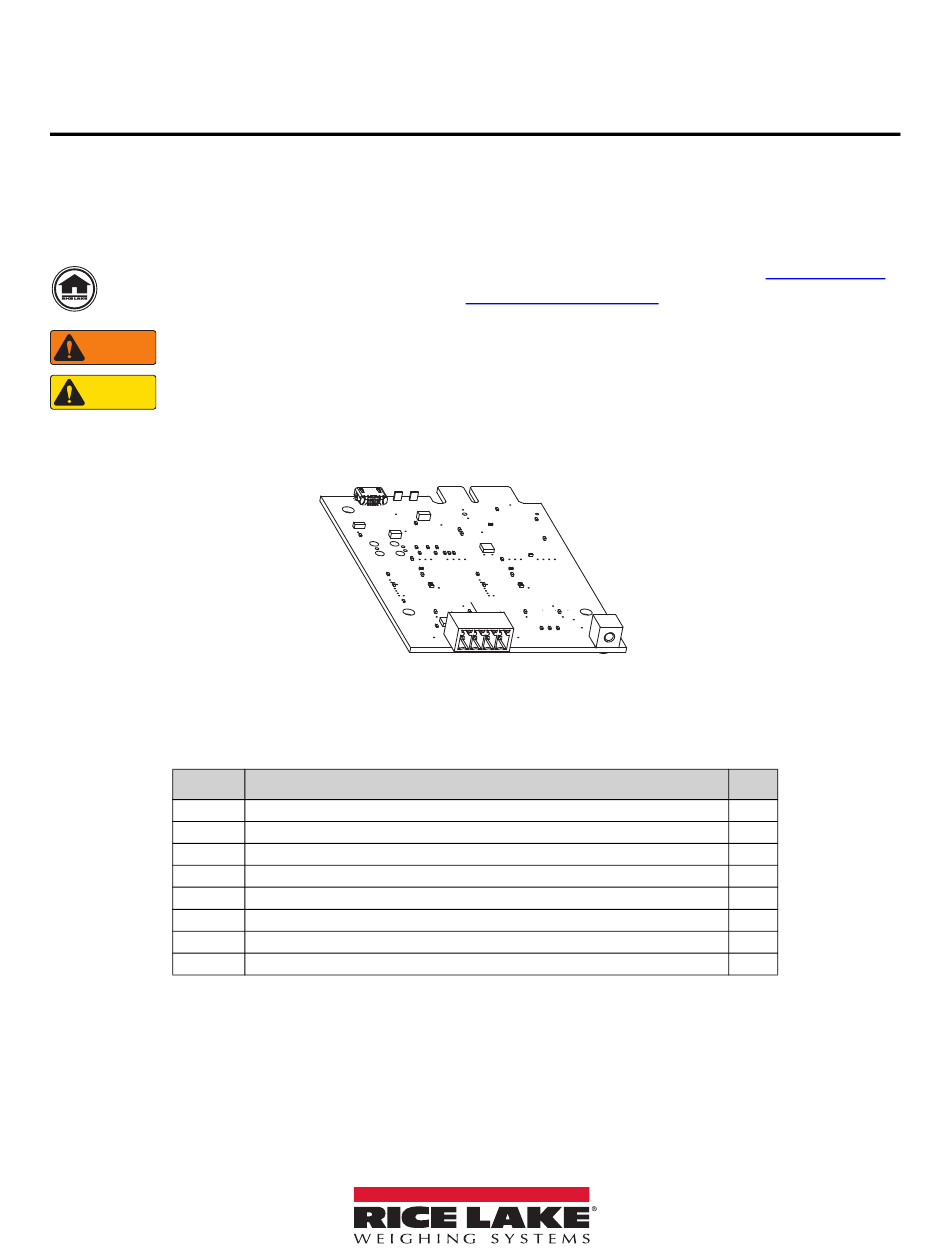

Figure 1. Analog Output Option Card
Board Assembly, Single Com
Parts Kit (*includes the parts listed below)
Washer, Lock NO 6 Type A (used for stud grounding)
Cable Tie, 3 inch Nylon (secures cable in panel mount installation)
Connector, 4 Pos Screw Terminal (interface connector)
Nut, M4 x 0.7 Hex (used for stud grounding)
Screw, SEMS Phillips M3 x 6 (secures card to controller assembly)
Clamp, Ground Cable Shield (used for stud grounding)
Table 1. Analog Output Option Card Kit Parts List
www.ricelake.com/warranties
Description
www.ricelake.com
Qty
1
1
1
4
1
1
3
1
PN 190908 Rev B
