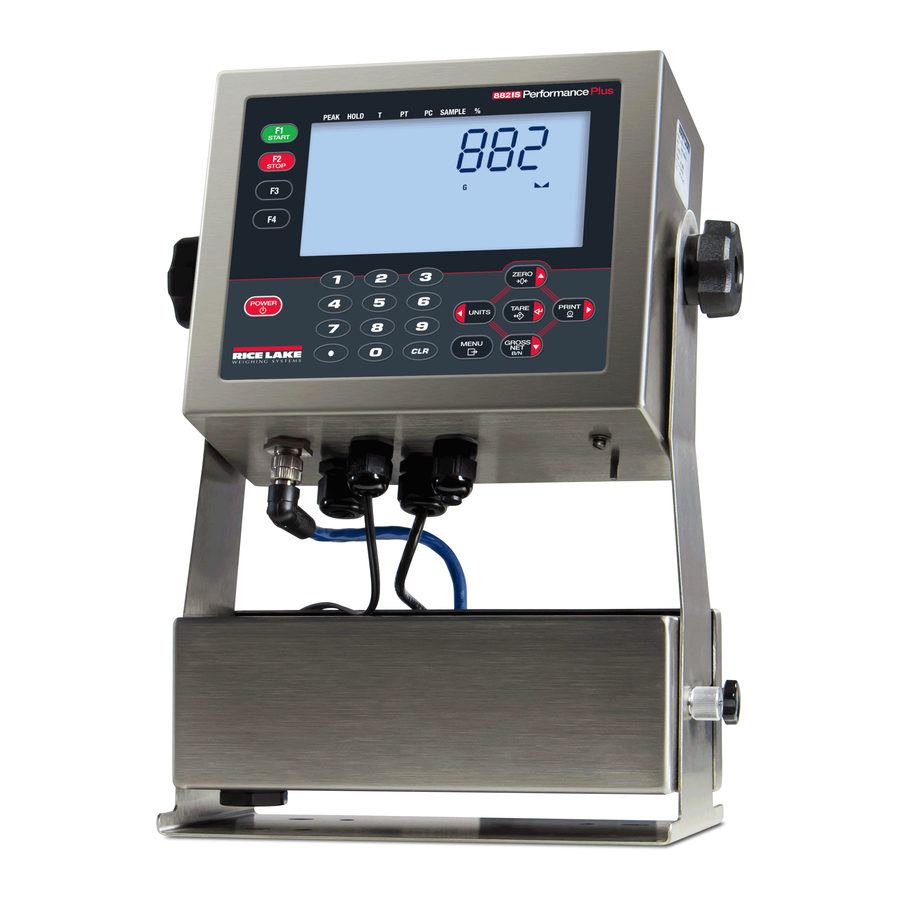

882IS Digital Weight Indicator
IS6V2 Battery Charger Instructions
The IS6V2 battery charger instruction sheet contains important safety and operating instructions. Before using the battery
charger, please read all instructions and cautionary information on the battery charger and the product using the battery.
Manuals and additional resources are available from the Rice Lake Weighing Systems website at
Warranty information can be found on the website at
Do not expose the charger to rain or moisture.
CAUTION
Do not remove the cover.
Disconnect the charger from AC power before maintenance or cleaning.
Only use Rice Lake Weighing Systems approved charger for IS indicator batteries.
WARNING
Because hydrogen gas may be present, disconnect unit from AC power before connecting or disconnecting
output connectors.
Connections to the battery pack must be made in the non-hazardous area before connecting the cable to the
IMPORTANT
882IS indicator.
Introduction
The IS6V2 battery charger is a typical encased power adapter that provides battery charge power at 7.35 V at 2 amps while
charging and 7.0 V once the battery is fully charged.
Two LEDs indicate AC power status and charge trip point.
LED
AC Power Status
Charge Trip Point
The dual mode (charge/float) provides rapid battery charging while preventing hazardous overcharging. In addition, the charger is
ideal for optimizing battery life as it will maintain the float voltage of 7.0 V to prevent battery discharge during normal AC operation.
March 5, 2021
Power LED
Figure 1. IS6V2 Battery Charger
LED Color
Green States the charger has power from an AC source and is continually on
Amber Charging status: < 70% is charging and > 70% is charged and light goes off
Table 1. LED Descriptions
www.ricelake.com/warranties
LED Description
www.ricelake.com
Charge LED
PN 195930 Rev D
