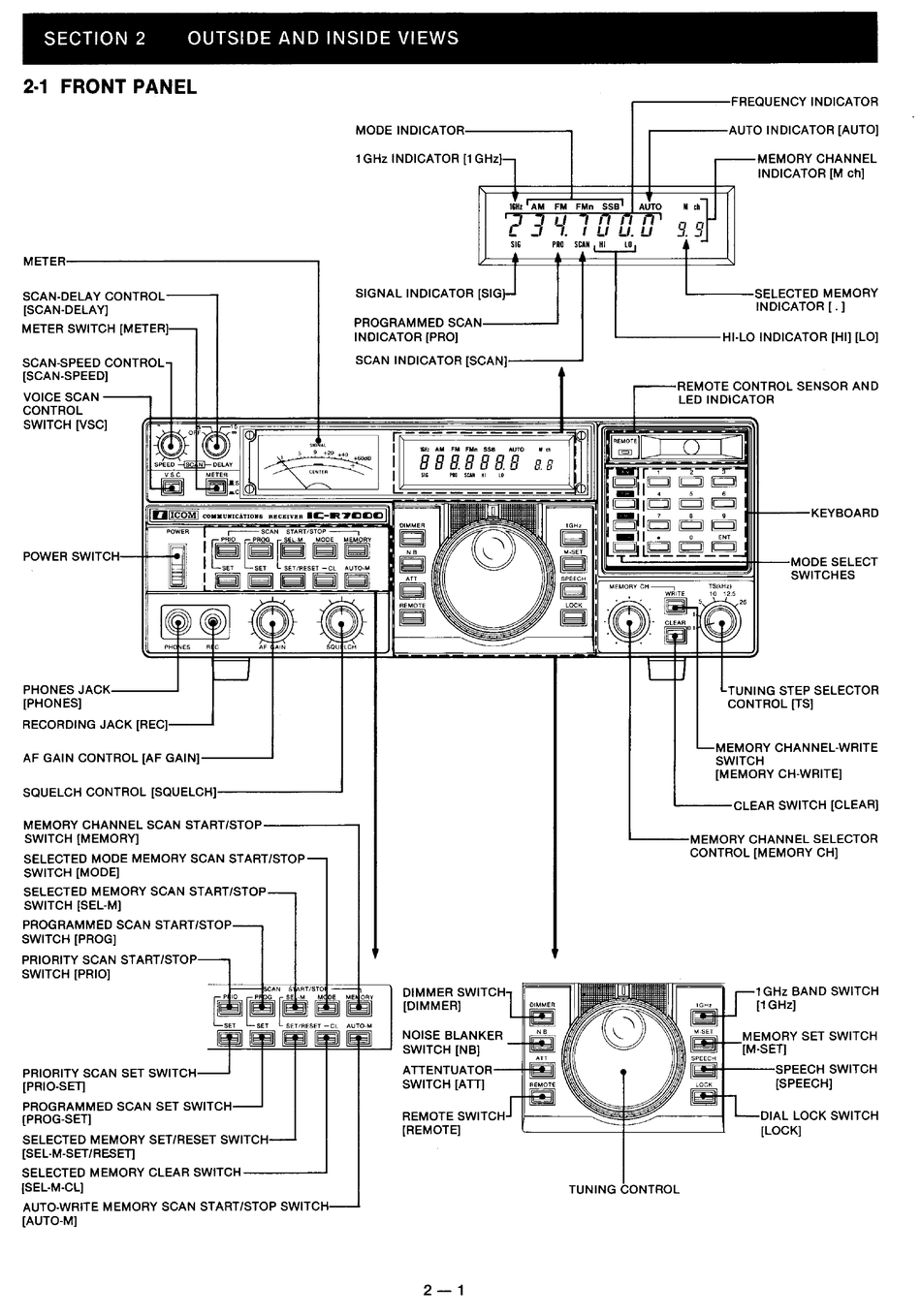

SECTION 2 OUTSIDE AND INSIDE VIEWS
I
2·1 FRONT PANEL
MODE INDICATOR------.
1 GHz INDICATOR (1 GHz]
SIG
M E T E R - - - - - - - - - - - - - -
SCAN-DELAY CONTROL---
[SCAN-DELA Y]
METER SWITCH [METER]
SIGNAL INDICATOR [SIG
PROGRAMMED SCAN-----'
INDICATOR [PRO]
SCAN-SPEED CONTROL
SCAN INDICATOR [SCAN]------'
[SCAN-SPEED]
VOICE SCAN
CONTROL
SWITCH [VSC]
PHONES
JACK---~
[PHONES]
RECORDING JACK [REC]
r---SCAN START/STOP-------,
1
~PRIO
rmPROG n SEL-M MODE MEMORY
l~~Ll!!s~~
I
Eal] Eal] Eal] Eal] Eal]
AF GAIN CONTROL [AF GAIN]-----'
SQUELCH CONTROL [SQUELCH]-------'
MEMORY CHANNEL SCAN START/STOP----~
SWITCH [MEMORY]
SELECTED MODE MEMORY SCAN START/STOP
SWITCH [MODE]
SELECTED MEMORY SCAN START/STOP
SWITCH [SEL-M]
PROGRAMMED SCAN START/STOP
SWITCH [PROG]
PRIORITY SCAN START/STOP
SWITCH [PRIO]
PRIORITY SCAN SET SWITCH
[PRIO-SET]
PROGRAMMED SCAN SET SWITCH
[PROG-SET]
SELECTED MEMORY SET/RESET SWITCH
[SEL-M-SET/RESET]
DIMMER SWITCH
[DIMMER]
NOISE BLANKER
SWITCH [NB]
ATTENTUATOR--+ll!;~ll
SWITCH [ATT]
REMOTE SWITCH
[REMOTE]
-----FREQUENCY INDICATOR
- - - - A U T O INDICATOR [AUTO]
MEMORY CHANNEL
INDICATOR [M ch]
'-----SELECTED MEMORY
INDICATOR [.]
' - - - - - - - H I - L O INDICATOR [HI] [LO]
REMOTE CONTROL SENSOR AND
LED INDICATOR
c) I]
TUNING STEP SELECTOR
CONTROL [TS]
MEMORY CHANNEL-WRITE
SWITCH
[MEMORY CH-WRITE]
'----CLEAR SWITCH [CLEAR]
'----MEMORY CHANNEL SELECTOR
CONTROL [MEMORY CH]
1 GHz BAND SWITCH
[1GHz)
l~~---SPEECH
SWITCH
[SPEECH]
DIAL LOCK SWITCH
[LOCK]
SELECTED MEMORY CLEAR SWITCH-----'
[SEL-M-CL]
TUNING CONTROL
AUTO-WRITE MEMORY SCAN START/STOP SWITCH
[AUTO-M]
