CHIEF SYSAU Installation Instructions Manual
Suspended ceiling projector adjustable storage box
Hide thumbs
Also See for SYSAU:
- Installation instructions manual (17 pages) ,
- Installation instructions manual (16 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for CHIEF SYSAU
Summary of Contents for CHIEF SYSAU

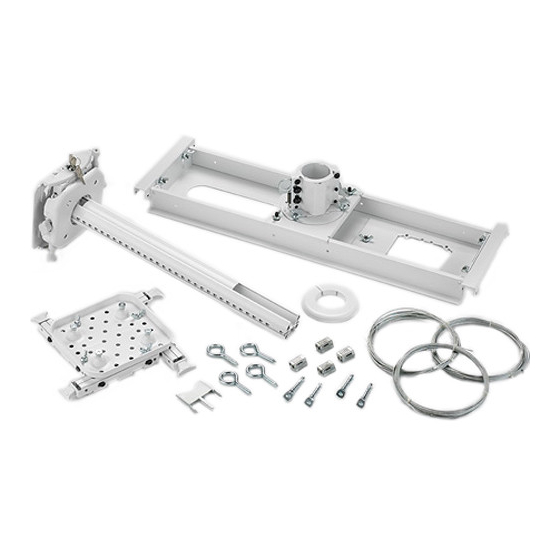

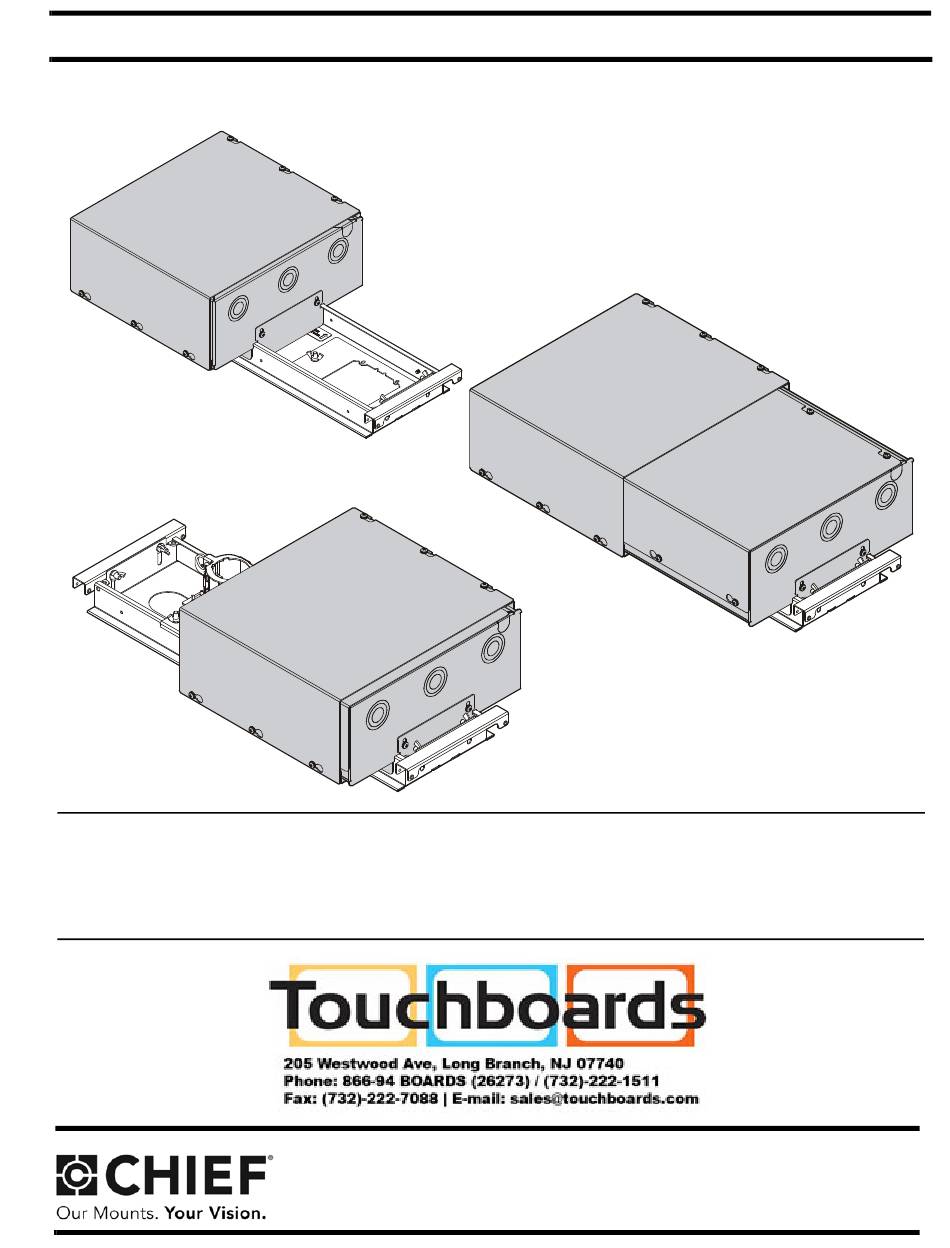

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S SYSAU Suspended Ceiling Projector Adjustable Storage Box Spanish Product Description German Product Description Portuguese Product Description...
- Page 2 NOTE: It is the installer’s responsibility to ensure that the product which is attached to a primary Chief product, and may enclosure is bonded to the ground in the switch box, in have a component attached or setting on it.
- Page 3 Installation Instructions CMA474 DIMENSIONS...
- Page 4 CMA474 Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
- Page 5 Installation Instructions CMA474 TOOLS REQUIRED FOR INSTALLATION PARTS B (1) [Cover-right] A (1) C (2) [Cover-left] [Box end] D (1) E (1) [Box body-left] [Box body-right] H (6) K (2) J (6) 10-32 F (14) G (6) 10-24 x 3/8" (grounding screw) 10-16 x 1/2"...
- Page 6 (F) into the top edge of the box body-left (D). (See Figure 1) Attach box body to SYSAU ceiling plate using four 10-24 x 3/8" Phillips pan tapping screws (J) through four #10 Loosely install three 10-24 x 3/8" Phillips pan head screws lock washers (H).
- Page 7 Use the Phillips pan head self-drilling screws (G) when Slide cover to securely fasten over Phillips screws. (See attaching the box body (left or right) to the SYSAU Figure 6) ceiling plate in a location other than at pre-drilled holes.
- Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
