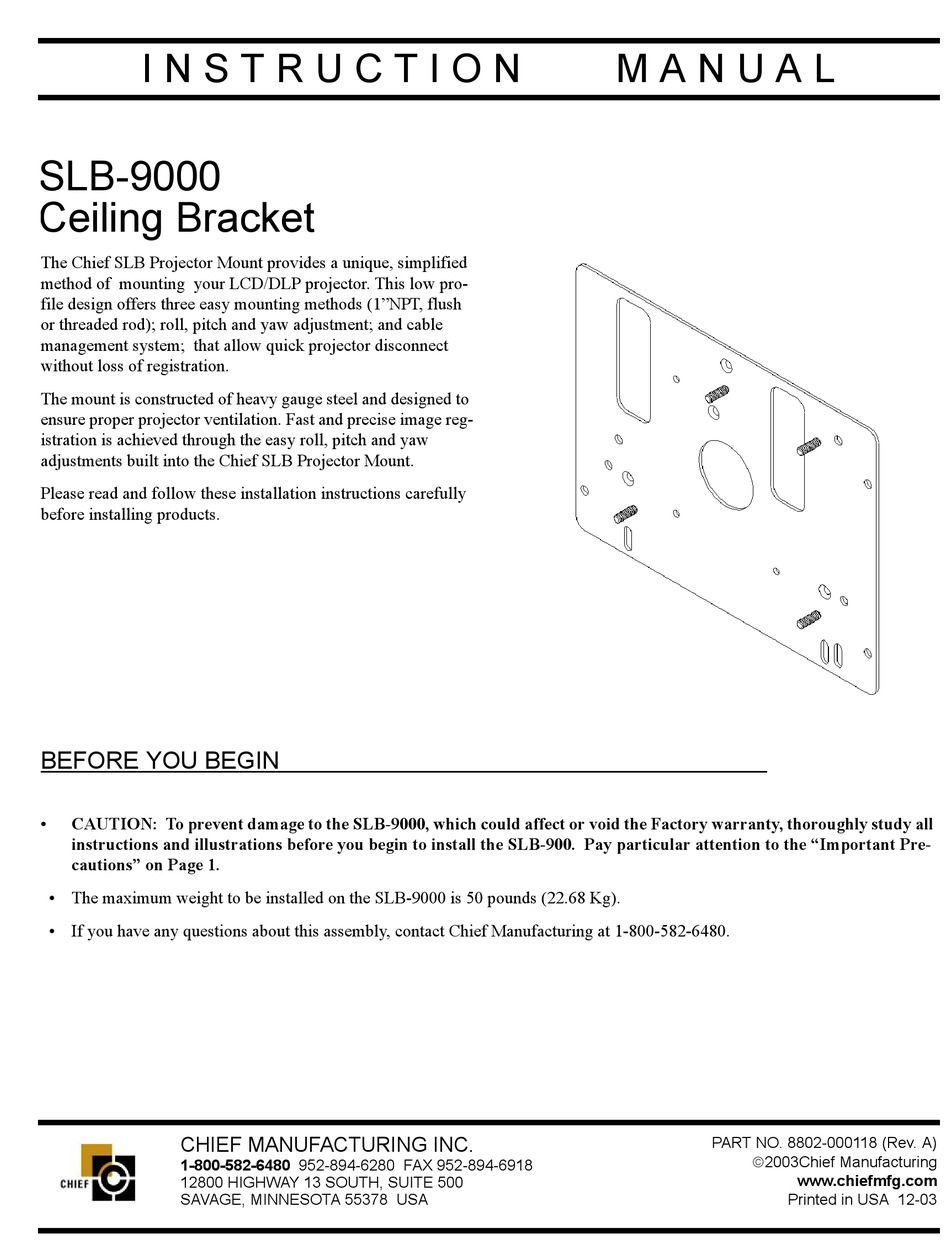

I N S T R U C T I O N
SLB-9000
Ceiling Bracket
The Chief SLB Projector Mount provides a unique, simplified
method of mounting your LCD/DLP projector. This low pro-
file design offers three easy mounting methods (1"NPT, flush
or threaded rod); roll, pitch and yaw adjustment; and cable
management system; that allow quick projector disconnect
without loss of registration.
The mount is constructed of heavy gauge steel and designed to
ensure proper projector ventilation. Fast and precise image reg-
istration is achieved through the easy roll, pitch and yaw
adjustments built into the Chief SLB Projector Mount.
Please read and follow these installation instructions carefully
before installing products.

BEFORE YOU BEGIN

CAUTION: To prevent damage to the SLB-9000, which could affect or void the Factory warranty, thoroughly study all
instructions and illustrations before you begin to install the SLB-900. Pay particular attention to the "Important Pre-
cautions" on Page 1.
• The maximum weight to be installed on the SLB-9000 is 50 pounds (22.68 Kg).
• If you have any questions about this assembly, contact Chief Manufacturing at 1-800-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
LOGO
12800 HIGHWAY 13 SOUTH, SUITE 500
SAVAGE, MINNESOTA 55378 USA
M A N U A L
PART NO. 8802-000118 (Rev. A)
2003Chief Manufacturing
Printed in USA 12-03
www.chiefmfg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLB-9000 and is the answer not in the manual?

Questions and answers

Summary of Contents for CHIEF SLB-9000

  • Page 1: Before You Begin

    BEFORE YOU BEGIN • CAUTION: To prevent damage to the SLB-9000, which could affect or void the Factory warranty, thoroughly study all instructions and illustrations before you begin to install the SLB-900. Pay particular attention to the “Important Pre- cautions” on Page 1.
  • Page 2: Important Warnings And Cautions

    • CAUTION: When attaching the mount, be careful not to overtighten mounting screws. • CAUTION: Changes or modifications not approved by Chief Manufacturing could void user’s warranty. TOOLS REQUIRED FOR INSTALLATION • Phillips screwdrivers, No. 1 and No. 2 NOTE: Other tools may be required depending on the...
  • Page 3: Table Of Contents

    Instruction Manual SLB-9000 CONTENTS INSPECT THE BRACKET AND ATTACHING HARDWARE BEFORE INSTALLING ............3 SELECT PROJECTOR MODEL AND DETERMINE PARTS .......... 3 BRACKET INSTALLATION PROCEDURES .. 5 Group A Installation Procedures: ..... 5 Group B Installation Procedures: ..... 5 Group C Installation Procedures: ..... 6 Group D Installation Procedures: .....
  • Page 4: Inspect The Bracket And Attaching Hardware Before Installing

    Instruction Manual SLB-9000 INSPECT THE BRACKET AND ATTACHING HARDWARE BEFORE INSTALLING Carefully inspect the SLB-9000 for shipping damage. If any damage is apparent, call your carrier claims agent and do not continue with the installation until the carrier has reviewed the damage.
  • Page 5 Instruction Manual SLB-9000 Manufacturer Model Manufacturer Model Group Group A + K AstroBeam S120 Geha Compact 280 A + K AstroBeam S230 Geha Compact 290 A + K AstroBeam X120 Geha Compact 690 Conference A + K AstroBeam X201 Room...
  • Page 6: Bracket Installation Procedures

    Place a 3/8” X 1/2” Nylon spacer over each threaded insert in the bottom of your projector. Using Figure 1, find the proper mounting holes in SLB-9000 for your projector. Place the SLB-9000 on the 3 Nylon spacers, aligning the proper mounting holes in SLB-9000 with the Nylon spacers.
  • Page 7: Group C Installation Procedures

    Place a 3/8” X 1/2” Nylon spacer over each threaded insert in the bottom of your projector. Using Figure 3, find the proper mounting holes in SLB-9000 for your projector. Place the SLB-9000 on the 3 Nylon spacers, aligning the proper mounting holes in SLB-9000 with the Nylon spacers.
  • Page 8: Group E Installation Procedures

    Place a 3/8” X 1/2” Nylon spacer over each threaded insert in the bottom of your projector. Using Figure 5, find the proper mounting holes in SLB-9000 for your projector Place the SLB-9000 on the 3 Nylon spacers, aligning the proper mounting holes in SLB-9000 with the Nylon spacers.
  • Page 9: Parts

    Instruction Manual SLB-9000 PARTS Table 1: Parts Nomenclature Qty. Nomenclature Qty. SLB-9000 SPACER, Nylon, 3/8” X 1/2” SCREW, pan head, M4-20mm NUT, thumb SCREW, flat head, M4-20mm KIT, All-Points (not shown) WASHER, M4...
