FLIR Ariel Gen III CB-3304 Quick Install Manual

A. Use this QR Code
to access the FLIR Website
B. Download Camera Documentation
and Utility Software from the Web
C. Install the SD Card if required
Only required if Storage on the Edge is going to be used. (see User Guide)
A microSDXC card (not supplied) must be inserted in the card drive on the connector panel in order to locally store a snapshots or recordings triggered by events.
Insert a microSDXC card (Min 4GB, up to 128GB, Class 10) in the card drive.
After the camera is connected to the VMS:
1. Use the camera web page to verify that the card status is displayed as mounted in the System > Events Handler > SD Card screen.
2. Format the card. Card must be formatted as a single partition.
3. Configure the camera to store snapshots and recordings from the System > Events Source screens.
Quick Install Guide

What's in the Box

Item CB-3304 CB-3308
CB-330x Camera 1pc
Tapping Screw s (TP4
3pcs
31mm)
Plastic anchors 3pcs
T6 Torx w rench 1pc
Drill template 1pc
Quick Installation Guide 1pc
Water proof cap 1pc
1pc
3pcs
3pcs
1pcs
1pcs
1pcs
1pcs

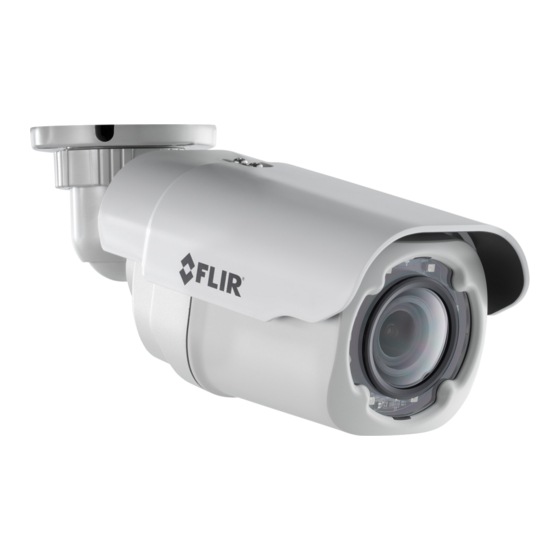

Ariel Gen III
CB-3304/CB-3308
4MP/8MP Bullet IP Camera
Example - CB-3308-11
