- Page 1 User's GUide...
-
Page 2: Table Of Contents

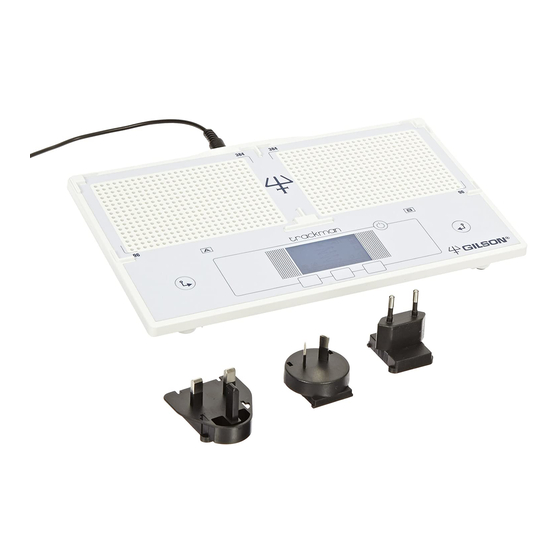

The TrACKMAN is ideal for tracking pipetting. it holds two microplates (96-well or 384-well)* or two optional Gilson Microtube Holders (0.5 mL, 1.5 mL and 2 mL), A and B, for transferring liquids from microtube to microtube or microplate to microplate. The TrACKMAN tracks and displays the position of the liquids. -
Page 3: Safety Notes
For ordering information please contact your Gilson distributor or http://www.gilson.com. SAFEtY notES Possible dangers if the safety precautions are not observed The TrACKMAN is a state-of-the-art instrument and is safe to use. All persons working with the TrACKMAN must read the operating and safety instructions before operating the instrument. Safety at work in addition to any safety precautions listed here, all other relevant safety aspects–e.g., GLP, GMP, pro-... -
Page 4: Description
The TRACKMAN may not be opened! Repairs without the express written permission of must be carried out by Gilson or a service Gilson. in particular, no alterations may be company authorized by Gilson! made to any of the protective functions. - Page 5 TrACKMAN. To reset, insert a paper clip into the reset hole on the rear panel of the TrACKMAN for at least 3 sec. cable Guide The TrACKMAN provides you with a cable guide on the bottom side.
- Page 6 The display is an LCd screen. it shows the current mode and operating step, battery indicator, sound, timer, and an indicator for manual or automatic timer operation. Operation screen Setup screen Figure 8 - TRACKMAN Display selected location(s) indicator of well or tube position Timer selection on/off for automatic run ...
-
Page 7: Getting Started
384-well microplates. To position your microplate or Microtube Holder, use the position indicators on the TrACKMAN (see fig. 9) and the indica- tion displayed on the front panel. select the vessel type in the software (see Chapter 6). The Led lights will indicate the chosen pattern and help you place the microplate or Microtube Holder. - Page 8 Low Battery Warning The TrACKMAN has a low battery alert. As the battery runs down, the “low battery level” message ap- pears, followed by a warning beep. Press ok before continuing to work. The warning is replaced by a blinking symbol of an empty battery. if it is not recharged, a second “low battery” warning will appear.
-
Page 9: Using The Trackman
User's GUide uSinG tHE trAcKMAn Use the TrACKMAN in several different ways. You can pipette with: Symbol Message 1x channel pipette 8 x multichannel pipette 12 x multichannel pipette You can pipette: to 0.5 mL/1.5 mL microtubes A or B tube 0.5 mL, tube 1.5 mL or 2.0 mL... - Page 10 6. When the run is finished, the first screen appears again and you can start another run. The TRACKMAN goes to sleep and the display will shut off after five minutes of inactivity. Press ON/OFF to reactivate TRACKMAN and continue working. Your last settings and operating step appear on the screen.
- Page 11 How to use the trAcKMAn with the pedal: 1. switch on the TrACKMAN. 2. Plug the pedal into the TrACKMAN (see Chapter 4, Fig. 4). A beep signals that the pedal is connected and a P (for pedal) appears on screen. 3. Press run to start the program.
-
Page 12: Cleaning, Decontamination And Maintenance
Press Valid to accept the selection and return to the operation screen. 5. To exit the Setup menu, press Quit. cLEAninG, dEcontAMinAtion And MAintEnAncE cleaning and decontamination To clean the TrACKMAN, wipe it with a Cautions: soft-cloth or lint-free tissue dipped in Do not autoclave TRACKMAN. Extreme heat a simple soap solution or 70% ethanol, will damage electronic components. -
Page 13: Troubleshooting
Recharge battery. into the reset hole on the rear panel Reset the software. of the TrACKMAN for at least 3 sec. Step touch pads do not work. Set program to Manual mode. 10 if the problem persists, you may Lift finger between clicks. -
Page 14: Ec Declaration Of Conformity
BP 145 - 95400 ViLLiers Le BeL FrANCe Tel.: +33(0)1 34 29 50 00 Fax: +33(0)1 34 29 50 20 Here by certifies on its sole responsibility that the trAcKMAn™ products listed below: 2004/108/Ec electromagnetic Compatibility comply with the requirements of the following... -
Page 15: Technical Data Sheet
47-63Hz Output: 5Vdc 2.0A indoor use only Battery Gilson Lithium Polymer Cell, Battery rating: 3.7V, 1Ah (3.7 Wh), autonomy up to 8 hours (single channel pipette) or 5 h (multichannel pipette) with one charge! temperature storage: -20°C to + 45°C Operating: +4°C to + 40°C... - Page 16 LT801522/A - ©2009 Gilson SAS All rights reserved October 2009 English Printed in France Specifications subject to change without notifications - errors omitted. www.gilson.com sales@gilson.com service@gilson.com training@gilson.com Gilson, inc. World Headquarters 3000 Parmenter Street P.O. Box 620027 Middleton, WI 53562-0027, USA Tel: (1) 800-445-7661 or (1) 608-836-1551 Fax: (1) 608-831-4451 Gilson S.A.S.
