Operation - Parts List

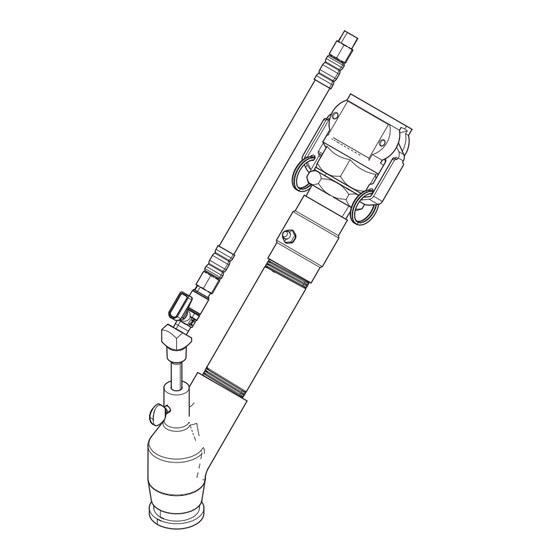

Pole Spray Applicator
For applying water-based stucco base, finish coat materials, and Exterior Insulation and Finish Systems
(EIFS) using ToughTek
atmospheres or hazardous locations.
Model 25A217, Series C
Pole Spray Applicator with 35 mm Female Mortar Coupling
Model 25D852, Series A
Pole Spray Applicator with 1.5 in. Female Camlock
600 psi (4.13 MPa, 41.3 bar) Maximum Fluid Working Pressure
100 psi (0.69 MPa, 6.9 bar) Maximum Air Pressure

IMPORTANT SAFETY INSTRUCTIONS

Read all warnings and instructions in this
manual. Save these instructions.
®
pumps and systems. For professional use only. Not approved for use in explosive
3A3438D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A Series and is the answer not in the manual?

Questions and answers

Related Manuals for Graco A Series

Summary of Contents for Graco A Series

  • Page 1 Operation - Parts List Pole Spray Applicator 3A3438D For applying water-based stucco base, finish coat materials, and Exterior Insulation and Finish Systems ® (EIFS) using ToughTek pumps and systems. For professional use only. Not approved for use in explosive atmospheres or hazardous locations. Model 25A217, Series C Pole Spray Applicator with 35 mm Female Mortar Coupling Model 25D852, Series A...
  • Page 2 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
  • Page 3 Warnings WARNING WARNING WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.
  • Page 4 Spraying Spraying The spray pattern can be adjusted by changes to: Material Flow Adjustments • Tip size For a lighter spray pattern, adjust the air needle (1a) closer to the fluid nozzle and/or reduce the fluid flow. • Fluid and/or air flow •...
  • Page 5 Parts Parts Ref. Part Description Qty. 128737 APPLICATOR, stucco, 1-1/4 in. x 6 in. with swivel - - - - - AIR, needle - - - - - AIR, ball valve 2◆ - - - - - ADAPTER, 1.25 npt m x 1.25 bspp m 3◆...
  • Page 6 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
